Ritchie Thrifty King CT4-2000 #16430

200 beef / 100 dairy
In stock
Product Details
Brand: Ritchie Industries
Part Number: 16430
Length:: 42.8in/108.71cm
Width:: 35in/88.9cm
Overall Height:: 25in/63.5cm
Drinking Height:: 19in/48.26cm
Shipping Weight:: 152lb/68.95kg
Heat:: Energy Free or Supplemental Heat
Capacity:: 45.5gal/172.24L
Herd Capacity:: 200 beef / 100 dairy
SHIPPING: Contact for a freight quote.

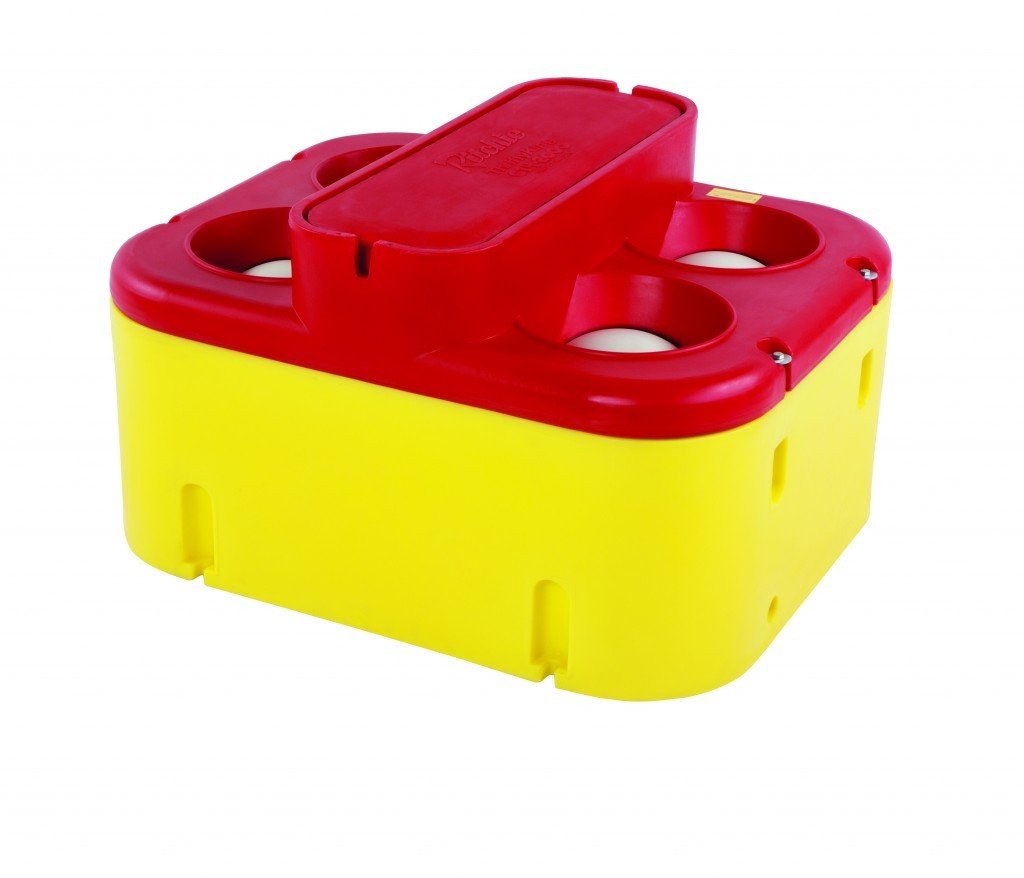

The Thrifty King CT4-2000 is a double sided automatic livestock waterer with a total of four drinking areas. Use when watering large herds by splitting a fence line or stand-alone in a feedlot. Waters between 10-200 beef cattle. Drink height is 19".

Thrifty King Instruction Manual Thrifty King CT4 Footprint Thrifty King CT4 Parts Breakdown
  • ThermalEqualizer design in patented drinking well eliminates cold spots in water storage
  • Elliptical closures tip easily so animals can drink without resistance, unlike round balls which take a great deal of pressure
  • Easy access for easy maintenance
  • High capacity valve, protected from cold by patented drink well
  • Finger-lift service cover; No tools, springs, or clips
  • Optional electric heat, immersion heater and supply line heat cable
  • 10-year warranty

Energy Free Requirements

Thrifty King fountains are intended to be energy-free; however, a number of factors must be met for this to be the case:

  • There must be at least 10 animals that have the Thrifty King fountain as their only source of water.
  • There must be a good seal against wind between the concrete platform and base of the unit.
  • The water seal grooves between the base, and top of the unit, and between the top of the unit and the valve cover must be filled with liquid.
  • The supply water temperature must be at least 42o F. (This may be an issue for rural or municipal water supplies.)
