Ritchie Thrifty King Series

Yes—in many cases. The Thrifty King Series is designed as an energy-free or low-energy system, using heavy insulation and a sealed design to retain ground heat. In moderate climates, they can often operate without supplemental heat, though extreme conditions may require an immersion heater or heat cable.

• There must be at least 10 animals that have the Thrifty King fountain as their only source of water.
• There must be a good seal against wind between the concrete platform and base of the unit.
• The water seal grooves between the base, and top of the unit, and between the top of the unit and the valve cover must be filled with liquid.
• The supply water temperature must be at least 42o F. (This may be an issue for rural or municipal water supplies.)

Installation is KEY! Follow the manufacturers recommendation. Thermal Tubes are recocommended. If possible, consider running electricity in the event your watering situation changes heat protection is needed. Stop and waste valve recommended with evry new installation.

They use a combination of:

• Fully insulated polyethylene construction surrounding the water
• Insulated elliptical closures that cover the drinking openings
• A water seal system that blocks cold air infiltration

These features work together to retain heat and minimize ice formation.

The elliptical closures are insulated lids that float over the water openings. They are designed to tip easily with minimal pressure, allowing cattle to drink while keeping heat in and debris out.

Capacity depends on the model:

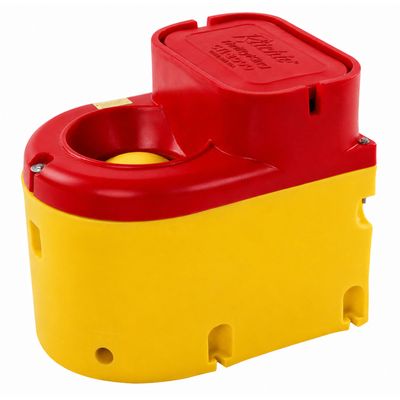

• CT1: ~30 head

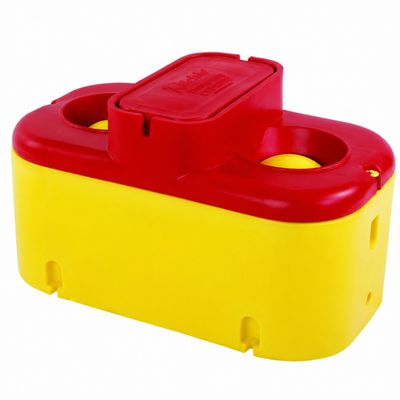

• CT2: up to ~100 head

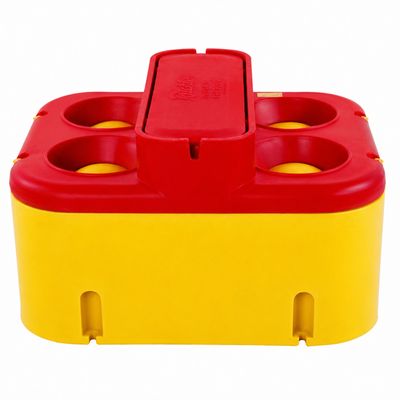

• CT4: up to ~200 head

This range allows producers to match the unit to their herd size and layout.

Yes. In winter, the insulation helps prevent freezing, while in summer the covered design keeps water cooler and reduces evaporation. The closures also help limit contamination and mosquito breeding, improving overall water quality.

Installation is straightforward but important for performance. Units are typically mounted on a concrete pad with a vertical riser pipe, and proper sealing at the base is critical to prevent cold air intrusion.

Maintenance is relatively simple:

• Periodic cleaning with a brush
• Checking float and valve operation
• Ensuring closures are positioned correctly to prevent freezing


Most components are easily accessible for servicing.
