SKU: WR-Electric

Water Rippler Electric Stock Tank Circulator, Plugs Into a Standard Outlet

Regular price $299.00
Shipping calculated at checkout.

Plug in version, 120V outlet, outdoor rated converter included

Care and Maintenance

Filter. A filter is installed on the pump to keep debris out of the pump and the ports. Check it when you check the tank. A clogged filter is the first thing to look at if flow drops off.

Caps. Four high velocity caps ship installed. Two blank caps come in the box and can replace two of the high velocity caps to redirect movement in a smaller tank.

Electric version. Use a GFCI protected outlet. The converter is outdoor rated, but keep the connection up off the ground.

Solar version. Performance depends entirely on the battery and panel you supply. A battery that will not hold through a cold night is the usual reason one of these stops circulating by morning.

Features

  • 12 by 12 inch HDPE housing, UV and crack resistant
  • 12 volt DC, 50 watt pump, already mounted
  • About 97 percent less energy than a 1,500 watt tank heater
  • Roughly 1.2 kWh a day
  • Slows ice in winter, tested by the makers at 22 below
  • Cuts mosquito hatching and algae in summer
  • Four high velocity caps plus two blank caps for smaller tanks
  • Filter installed on the pump
  • 6 foot power cord
  • Designed and built by Wyoming ranchers, patent pending

Specifications

Part number: WR-Electric
Housing: 12 in x 12 in, high density polyethylene
Pump: 12 volt DC, 50 watt, mounted
Power cord: 6 ft
Power: 120V AC outlet, outdoor rated 120V AC to 12V DC converter included, GFCI recommended
Energy use: about 1.2 kWh per day
Caps: four high velocity, two blank
Filter: installed on the pump
Shipping weight: 8 lb
Made in: USA, patent pending

Common Applications

  • Stock tanks for cattle, horses and sheep
  • Year round tanks that freeze in winter and green up in summer
  • Remote and back pasture tanks with no grid power (solar or dual version)
  • Barn lot and yard tanks with an outlet nearby (electric or dual version)
  • Operations replacing 1,500 watt tank heaters

Description

The plug in Water Rippler, part WR-Electric. It ships assembled for a standard 120 volt outlet with an outdoor rated 120V AC to 12V DC converter and a 6 foot cord. A GFCI protected outlet is strongly recommended. This is the one to buy if there is power at the tank.

How it works. The Water Rippler is a 12 by 12 inch HDPE float with a 50 watt, 12 volt DC pump in it. It pushes water across the surface of the tank continuously. In winter that keeps ice from setting up the way it does on a still tank. In summer the same movement makes a poor place for mosquitoes to lay and slows algae down, and the water stays cooler and tastes better, which is when cattle drink more of it.

On ice, plainly. It slows ice, it does not promise a bare tank. The makers tested it at 22 below in Wyoming and could push a hand through the thin layer left on top. That is the honest claim and it is the useful one.

On cost. Roughly 97 percent less energy than a 1,500 watt stock tank heater. The pump draws 50 watts, about 1.2 kWh a day. What that saves in dollars depends on your electric rate.

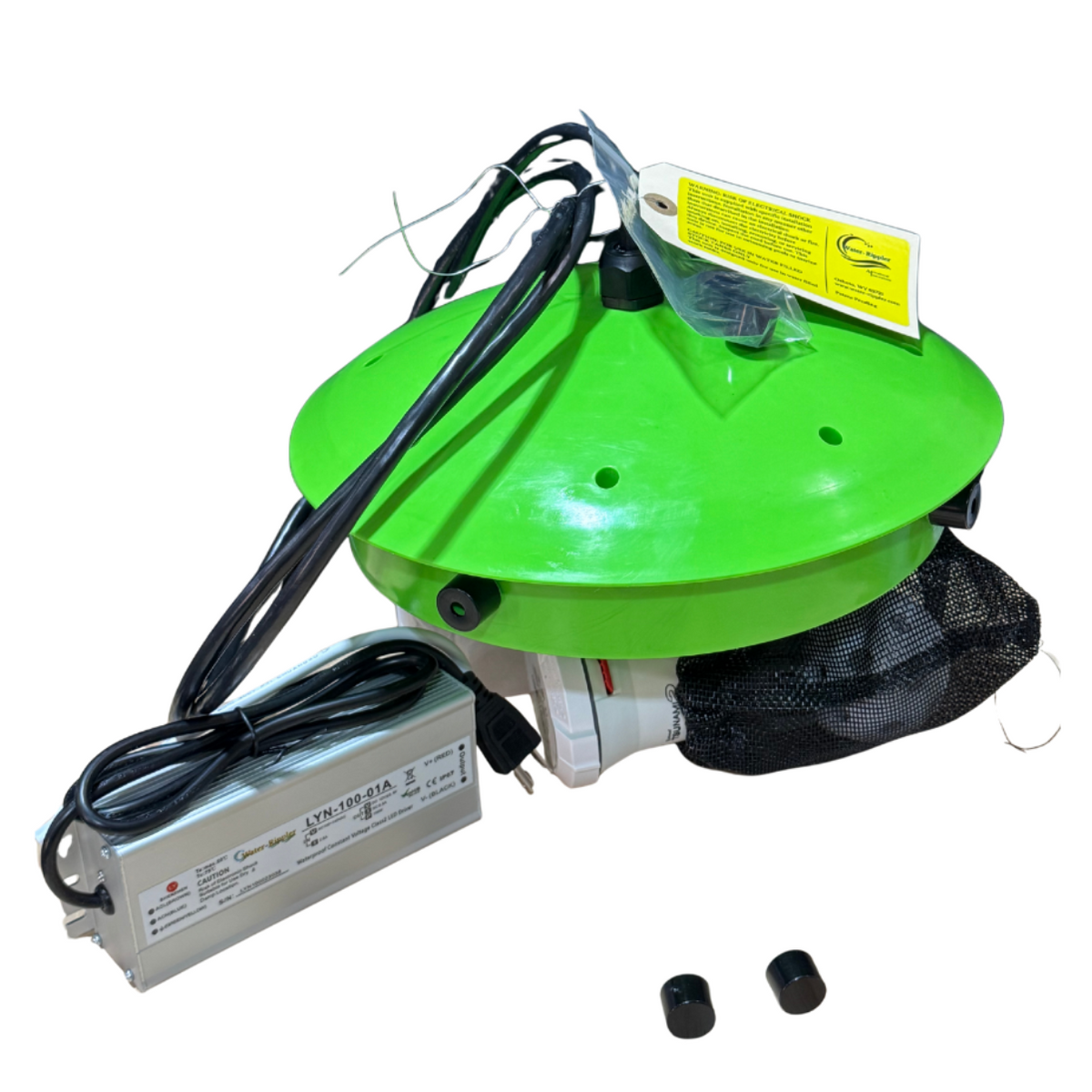

In the box. The Rippler assembled with the pump mounted and a filter installed, a 6 foot power cord, four high velocity caps, and two blank caps you can swap in to redirect flow in a smaller tank.

Built by ranchers. Randall and Shondah Otwell, fourth generation ranchers near Oshoto in Crook County, Wyoming, after the winter of 2019 left them done with tank heaters. Four prototypes, patent pending, made in the USA.

Moving Water Does Not Freeze the Same Way Still Water Does

The Water Rippler is a 12 by 12 inch float with a small 12 volt pump in it. It pushes water across the surface of the tank all day and all night. In winter that keeps ice from setting up the way it does on a still tank. In summer the same movement makes it a poor place for mosquitoes to lay and slows algae down.

Winter

Randall Otwell tested it at 22 below and could push a hand through what ice was left on top. It slows ice, it does not promise an ice free tank in any weather, and it does it on a fraction of the power a heater burns.

Summer

Mosquitoes want still water to lay on. Algae wants still, warm water to sit in. Constant movement takes both of those away and keeps the water cooler and better tasting, which is when cattle drink more of it.

All year

One unit, no seasonal swap, nothing to pull out in the spring. It is the same 50 watt pump running in January and in July.

97% lessEnergy than a 1,500 watt stock tank heater
50 watts12 volt DC pump, roughly 1.2 kWh a day
−22°FTested by the makers in Wyoming
12″ x 12″HDPE housing, UV and crack resistant

Which Version Do You Need?

VersionPowerBest for
ElectricPlugs into a standard 120V outlet, outdoor rated converter included, GFCI recommendedA tank near the barn or the yard where you already have power
Solar15 ft cord with ring terminals for your own 12V battery and solar panel, neither includedBack pastures and remote tanks, if you already run solar or are setting it up
Dual PowerBoth. Ships plug and play for 120V and also includes the 15 ft solar adapter cordMoving one unit between tanks, or hedging in case the power situation changes

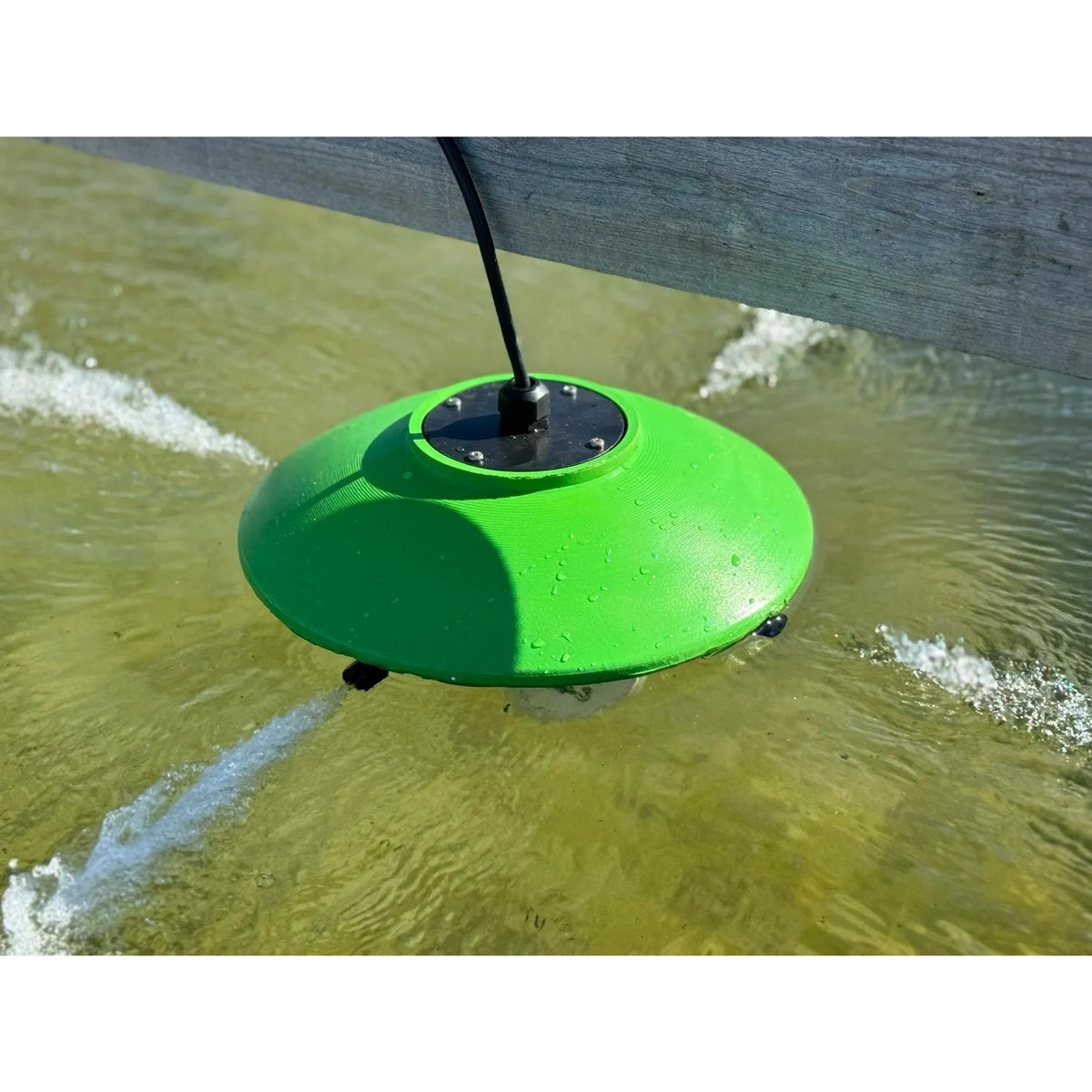

See It Running

Why the Water Rippler

  • Moving Water Does Not Freeze the Same Way

    A 50 watt pump pushing water across the surface keeps ice from setting up the way it does on a still tank. Tested by the makers at 22 below. It slows ice, it does not promise a bare tank.

  • 97 Percent Less Energy Than a Tank Heater

    Fifty watts against a 1,500 watt heater, roughly 1.2 kWh a day. On most electric rates it pays for itself in a winter or two.

  • It Earns Its Keep in Summer Too

    Mosquitoes need still water to lay on and algae likes still, warm water. Constant movement takes both away, and cooler water is water cattle drink more of.

  • HDPE, Built to Live Outside

    A 12 by 12 inch high density polyethylene housing that resists cracking, UV and water damage, because it sits in a tank in the sun all summer and the cold all winter.

  • Built by Ranchers Who Needed It

    Randall and Shondah Otwell, fourth generation ranchers in Crook County, Wyoming. Four prototypes after the winter of 2019. Patent pending, made in the USA.

Setup Tips

  • Check the outlet before you pick a version

    If power reaches the tank, buy electric. Solar is the answer for tanks power does not reach, not an upgrade.

  • Size solar for winter, not summer

    Short days and a cold battery both cut what the system delivers, and winter is when you need it running. Size for January.

  • Use a GFCI

    Water, outdoors, a cord. The manufacturer strongly recommends it and so do we.

  • Swap in the blank caps on a smaller tank

    Four high velocity caps ship installed. Two blank caps in the box let you redirect the flow so a smaller tank is not churning.

  • Watch the filter

    A filter on the pump keeps debris out of the pump and ports. If flow drops, check it first.

  • Know what it promises

    It slows ice, it does not guarantee open water in any weather. That is the honest claim and it is still a good one.

Water Rippler Questions

Solar Version, Read First

Does the solar version come with a solar panel?

No. It comes with a 15 foot adapter cord and quarter inch ring terminals. The panel is not included.

Does it come with a battery?

No. You supply the 12 volt battery. The Rippler connects to it, it does not come with it.

So what do I actually need to run the solar version?

A 12 volt battery, a solar panel and charge controller sized to keep that battery up, and the wiring and mounting to go with it. The Rippler brings the pump and the cord. If you do not have a solar setup and do not want to build one, buy the electric version instead.

How big does my solar system need to be?

That depends on your latitude, your winter daylight, your panel placement and how cold your battery gets. Short days and cold weather both cut what a system delivers, and winter is exactly when you need it running. We will not guess at a number for you. Talk to a local solar supplier before you order.

Can I add solar to the electric version later?

Not to the electric version, no. If you think you might want both, the Dual Power version ships with the 120 volt converter and the solar adapter cord in the same box.

How It Works

Does it keep the tank completely ice free?

No, and nobody honest will tell you it does. It slows ice from setting up. The makers tested it at 22 below and could push a hand through the thin layer left on top. Think of it as keeping water open and drinkable rather than keeping the tank bare.

How does it compare to a tank heater on cost?

It draws about 97 percent less energy than a 1,500 watt stock tank heater. The pump is 50 watts, roughly 1.2 kWh a day. What that saves in dollars depends on your electric rate, but the gap is large enough that it pays for itself over a winter or two on most rates.

What does it do in the summer?

Mosquitoes need still water to lay eggs on and algae likes still, warm water. Constant surface movement takes both of those conditions away, and moving water stays cooler and tastes better, which usually means cattle drink more.

Will cattle bother it?

Running water tends to draw stock to the tank rather than spook them. The housing is HDPE and built to live outdoors, but like anything in a tank it is worth keeping an eye on it the first week.

Setup and Sizing

What size tank does it fit?

The unit is 12 inches by 12 inches. It ships with four high velocity caps for maximum flow and two blank caps you can swap in to redirect movement in a smaller tank.

Do I need a GFCI outlet for the electric version?

The manufacturer strongly recommends it, and so do we. It is water and it is outdoors.

How long is the cord?

Six feet of power cord on the unit. The solar and dual versions add a 15 foot solar adapter cord on top of that.

What is it made of?

High density polyethylene. It resists cracking, UV and water damage, which is what you want in something that sits in a tank in the sun all summer and the cold all winter.

Does it need cleaning?

There is a filter on the pump to keep debris out of the pump and the ports. Check it when you check the tank. A clogged filter is the first thing to look at if flow drops off.

About the Brand

Who makes the Water Rippler?

Randall and Shondah Otwell, fourth generation ranchers near Oshoto in Crook County, Wyoming. They built it after the winter of 2019 left them fed up with tank heaters, went through four prototypes, and brought it to market through Agricultural Innovations LLC. Patent pending.
