Water Rippler Dual Power Stock Tank Circulator, Electric and Solar Ready
Both power options in one box. Solar battery and panel not included
Water Rippler Dual Power Stock Tank Circulator, Electric and Solar Ready is backordered and will ship as soon as it is back in stock.
Care and Maintenance
Care and Maintenance
Filter. A filter is installed on the pump to keep debris out of the pump and the ports. Check it when you check the tank. A clogged filter is the first thing to look at if flow drops off.
Caps. Four high velocity caps ship installed. Two blank caps come in the box and can replace two of the high velocity caps to redirect movement in a smaller tank.
Electric version. Use a GFCI protected outlet. The converter is outdoor rated, but keep the connection up off the ground.
Solar version. Performance depends entirely on the battery and panel you supply. A battery that will not hold through a cold night is the usual reason one of these stops circulating by morning.
Features
Features
Specifications
Specifications
Common Applications
Common Applications
Water Rippler Dual Power Stock Tank Circulator, Electric and Solar Ready is backordered and will ship as soon as it is back in stock.
Description
Description
Read this first: the solar panel and the battery are NOT included. This version ships with a 15 foot adapter cord and quarter inch ring terminals that connect to a 12 volt battery and solar panel system you supply. It will not run on its own out of the box. If you do not already have a solar setup, either plan to buy one or buy the electric version instead.
The Dual Power Water Rippler, part WRDual. Both power options in one box: it ships plug and play for a standard 120 volt outlet with the outdoor rated converter, and it also includes the 15 foot solar adapter cord with ring terminals. Buy this one if you want to move a single unit between a tank with power and a tank without.
How it works. The Water Rippler is a 12 by 12 inch HDPE float with a 50 watt, 12 volt DC pump in it. It pushes water across the surface of the tank continuously. In winter that keeps ice from setting up the way it does on a still tank. In summer the same movement makes a poor place for mosquitoes to lay and slows algae down, and the water stays cooler and tastes better, which is when cattle drink more of it.
On ice, plainly. It slows ice, it does not promise a bare tank. The makers tested it at 22 below in Wyoming and could push a hand through the thin layer left on top. That is the honest claim and it is the useful one.
On cost. Roughly 97 percent less energy than a 1,500 watt stock tank heater. The pump draws 50 watts, about 1.2 kWh a day. What that saves in dollars depends on your electric rate.
In the box. The Rippler assembled with the pump mounted and a filter installed, a 6 foot power cord, four high velocity caps, and two blank caps you can swap in to redirect flow in a smaller tank.
Built by ranchers. Randall and Shondah Otwell, fourth generation ranchers near Oshoto in Crook County, Wyoming, after the winter of 2019 left them done with tank heaters. Four prototypes, patent pending, made in the USA.
Moving Water Does Not Freeze the Same Way Still Water Does
The Water Rippler is a 12 by 12 inch float with a small 12 volt pump in it. It pushes water across the surface of the tank all day and all night. In winter that keeps ice from setting up the way it does on a still tank. In summer the same movement makes it a poor place for mosquitoes to lay and slows algae down.
Randall Otwell tested it at 22 below and could push a hand through what ice was left on top. It slows ice, it does not promise an ice free tank in any weather, and it does it on a fraction of the power a heater burns.
Mosquitoes want still water to lay on. Algae wants still, warm water to sit in. Constant movement takes both of those away and keeps the water cooler and better tasting, which is when cattle drink more of it.
One unit, no seasonal swap, nothing to pull out in the spring. It is the same 50 watt pump running in January and in July.
Which Version Do You Need?
| Version | Power | Best for |
|---|---|---|
| Electric | Plugs into a standard 120V outlet, outdoor rated converter included, GFCI recommended | A tank near the barn or the yard where you already have power |
| Solar | 15 ft cord with ring terminals for your own 12V battery and solar panel, neither included | Back pastures and remote tanks, if you already run solar or are setting it up |
| Dual Power | Both. Ships plug and play for 120V and also includes the 15 ft solar adapter cord | Moving one unit between tanks, or hedging in case the power situation changes |
Solar Version: Read This Before You Buy
The solar Water Rippler does not come with a solar panel and it does not come with a battery. It comes with a cord that connects to a solar and battery system you already own or are going to buy separately.
The Water Rippler Solar ships with a 15 foot adapter cord and quarter inch ring terminals. Those terminals connect to your own 12 volt battery and solar panel system. If you do not already have one, the Rippler will not run on its own out of the box. This is the single thing customers get wrong, so we would rather say it twice than have you open the box disappointed.

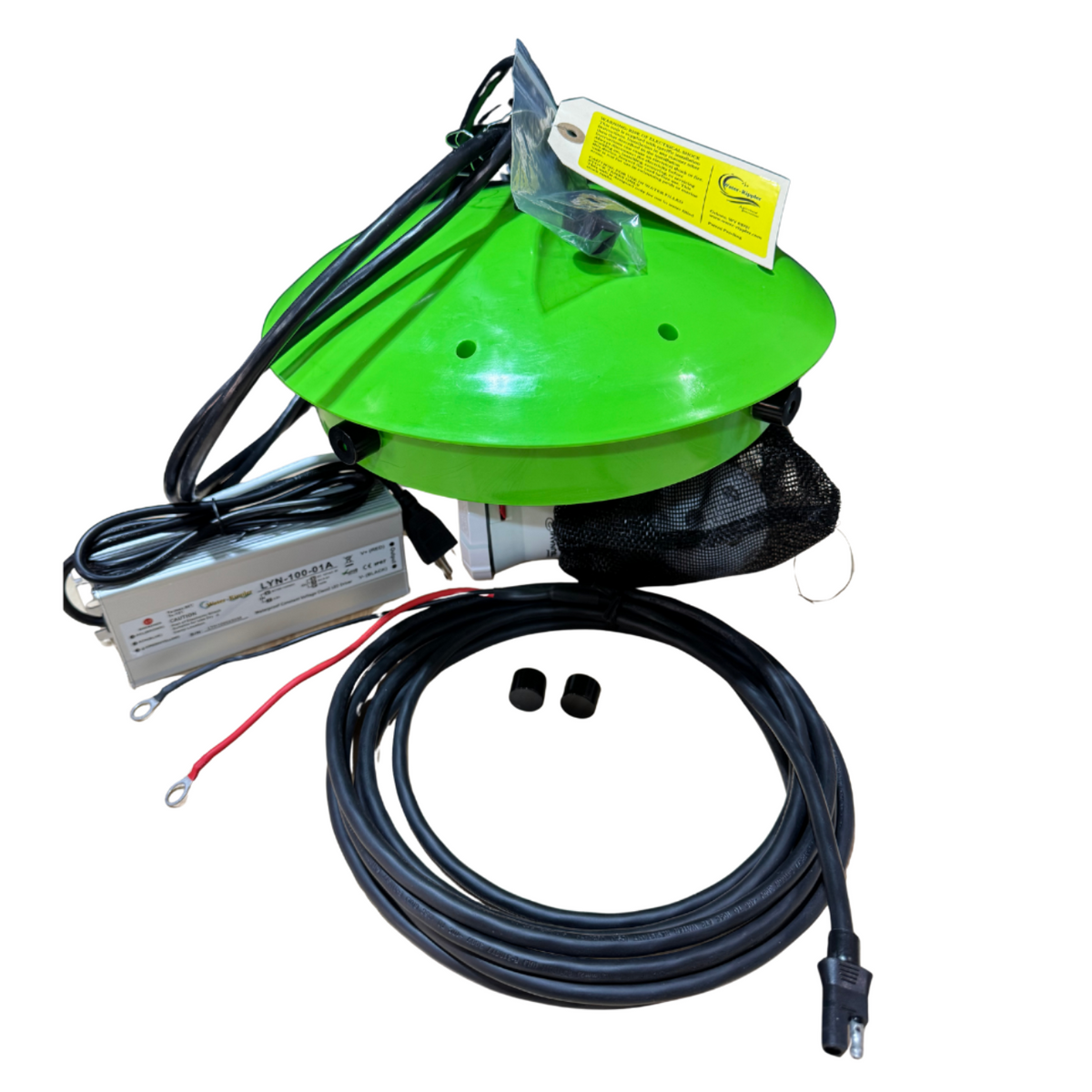

What is in the box
- Water Rippler unit, 12 by 12 inch HDPE housing
- 12 volt DC, 50 watt pump, already mounted
- 6 foot power cord
- 15 foot solar adapter cord with 1/4 inch ring terminals
- Pump filter, installed
- Four high velocity caps
- Two blank caps for redirecting flow in a smaller tank
What you supply
- A 12 volt battery. Not included.
- A solar panel and charge controller. Not included.
- The wiring and mounting for that system
- Enough panel and battery capacity for short winter days and cold weather, when both output and battery performance drop
Sizing a solar system is not guesswork, and undersizing it is the most common reason one of these disappoints. If you have not done it before, talk to a local solar supplier before you order. If you have grid power at the tank, the electric version plugs into a standard outlet and skips all of this.
See It Running
Why the Water Rippler
-
Moving Water Does Not Freeze the Same Way
A 50 watt pump pushing water across the surface keeps ice from setting up the way it does on a still tank. Tested by the makers at 22 below. It slows ice, it does not promise a bare tank.
-
97 Percent Less Energy Than a Tank Heater
Fifty watts against a 1,500 watt heater, roughly 1.2 kWh a day. On most electric rates it pays for itself in a winter or two.
-
It Earns Its Keep in Summer Too
Mosquitoes need still water to lay on and algae likes still, warm water. Constant movement takes both away, and cooler water is water cattle drink more of.
-
HDPE, Built to Live Outside
A 12 by 12 inch high density polyethylene housing that resists cracking, UV and water damage, because it sits in a tank in the sun all summer and the cold all winter.
-
Built by Ranchers Who Needed It
Randall and Shondah Otwell, fourth generation ranchers in Crook County, Wyoming. Four prototypes after the winter of 2019. Patent pending, made in the USA.
Setup Tips
-
Check the outlet before you pick a version
If power reaches the tank, buy electric. Solar is the answer for tanks power does not reach, not an upgrade.
-
Size solar for winter, not summer
Short days and a cold battery both cut what the system delivers, and winter is when you need it running. Size for January.
-
Use a GFCI
Water, outdoors, a cord. The manufacturer strongly recommends it and so do we.
-
Swap in the blank caps on a smaller tank
Four high velocity caps ship installed. Two blank caps in the box let you redirect the flow so a smaller tank is not churning.
-
Watch the filter
A filter on the pump keeps debris out of the pump and ports. If flow drops, check it first.
-
Know what it promises
It slows ice, it does not guarantee open water in any weather. That is the honest claim and it is still a good one.
Water Rippler Questions
Solar Version, Read First
Does the solar version come with a solar panel?
Does the solar version come with a solar panel?
No. It comes with a 15 foot adapter cord and quarter inch ring terminals. The panel is not included.
Does it come with a battery?
Does it come with a battery?
No. You supply the 12 volt battery. The Rippler connects to it, it does not come with it.
So what do I actually need to run the solar version?
So what do I actually need to run the solar version?
A 12 volt battery, a solar panel and charge controller sized to keep that battery up, and the wiring and mounting to go with it. The Rippler brings the pump and the cord. If you do not have a solar setup and do not want to build one, buy the electric version instead.
How big does my solar system need to be?
How big does my solar system need to be?
That depends on your latitude, your winter daylight, your panel placement and how cold your battery gets. Short days and cold weather both cut what a system delivers, and winter is exactly when you need it running. We will not guess at a number for you. Talk to a local solar supplier before you order.
Can I add solar to the electric version later?
Can I add solar to the electric version later?
Not to the electric version, no. If you think you might want both, the Dual Power version ships with the 120 volt converter and the solar adapter cord in the same box.
How It Works
Does it keep the tank completely ice free?
Does it keep the tank completely ice free?
No, and nobody honest will tell you it does. It slows ice from setting up. The makers tested it at 22 below and could push a hand through the thin layer left on top. Think of it as keeping water open and drinkable rather than keeping the tank bare.
How does it compare to a tank heater on cost?
How does it compare to a tank heater on cost?
It draws about 97 percent less energy than a 1,500 watt stock tank heater. The pump is 50 watts, roughly 1.2 kWh a day. What that saves in dollars depends on your electric rate, but the gap is large enough that it pays for itself over a winter or two on most rates.
What does it do in the summer?
What does it do in the summer?
Mosquitoes need still water to lay eggs on and algae likes still, warm water. Constant surface movement takes both of those conditions away, and moving water stays cooler and tastes better, which usually means cattle drink more.
Will cattle bother it?
Will cattle bother it?
Running water tends to draw stock to the tank rather than spook them. The housing is HDPE and built to live outdoors, but like anything in a tank it is worth keeping an eye on it the first week.
Setup and Sizing
What size tank does it fit?
What size tank does it fit?
The unit is 12 inches by 12 inches. It ships with four high velocity caps for maximum flow and two blank caps you can swap in to redirect movement in a smaller tank.
Do I need a GFCI outlet for the electric version?
Do I need a GFCI outlet for the electric version?
The manufacturer strongly recommends it, and so do we. It is water and it is outdoors.
How long is the cord?
How long is the cord?
Six feet of power cord on the unit. The solar and dual versions add a 15 foot solar adapter cord on top of that.
What is it made of?
What is it made of?
High density polyethylene. It resists cracking, UV and water damage, which is what you want in something that sits in a tank in the sun all summer and the cold all winter.
Does it need cleaning?
Does it need cleaning?
There is a filter on the pump to keep debris out of the pump and the ports. Check it when you check the tank. A clogged filter is the first thing to look at if flow drops off.
About the Brand
Who makes the Water Rippler?
Who makes the Water Rippler?
Randall and Shondah Otwell, fourth generation ranchers near Oshoto in Crook County, Wyoming. They built it after the winter of 2019 left them fed up with tank heaters, went through four prototypes, and brought it to market through Agricultural Innovations LLC. Patent pending.
Other Water Rippler Versions
View allElectric, Solar or Both
Electric plugs into an outlet. Solar connects to a battery and panel you supply. Dual Power ships with both.
