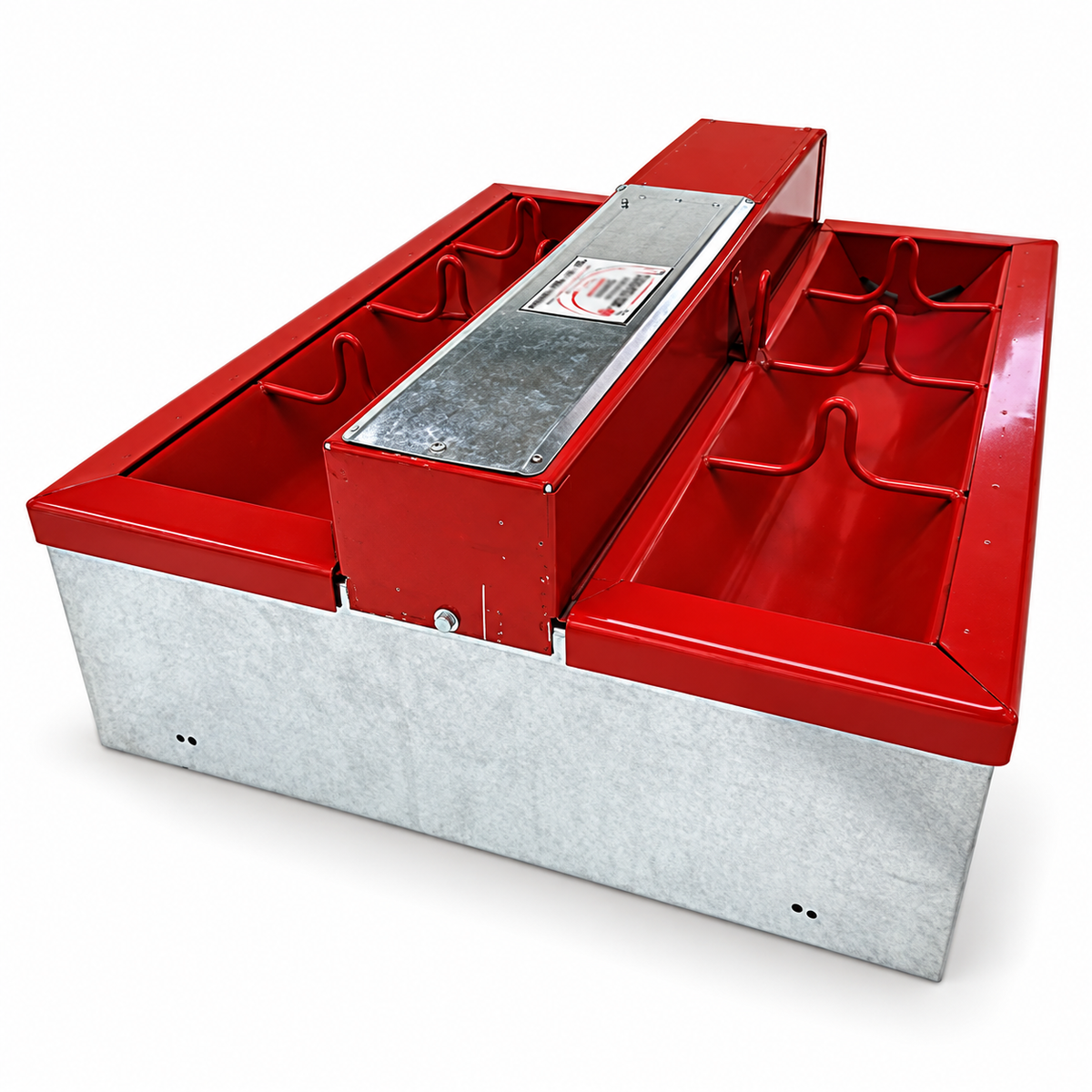

Hoskins H9-34D Automatic Hog Waterer – 13 Gallon, 28 x 34 in.
Stainless steel tank in an insulated galvanized frame. 13 gallons, 28in/71.12cm long, rated for 100 to 250 hogs.
Freight quote required if shipping. Request a freight quote here.
Available for pickup in the following locations:
- Hoskins, NE
Contact us for pick-up information.
Hoskins H9-34D Automatic Hog Waterer – 13 Gallon, 28 x 34 in. is backordered and will ship as soon as it is back in stock.
Common Applications
Common Applications
Features
Features
Specifications
Specifications
Warranty
Warranty
Delivery and Shipping
Delivery and Shipping
The H9-34D is a freight item. Ask us for a freight quote and we will price it to your address, or collect it at Hoskins, NE if that suits you better.
Freight items typically take 1 to 2 weeks for delivery. Allow extra time during peak season.
Hoskins H9-34D Automatic Hog Waterer – 13 Gallon, 28 x 34 in.
Hoskins H9-34D Automatic Hog Waterer – 13 Gallon, 28 x 34 in. is backordered and will ship as soon as it is back in stock.
Description
Description
The largest hog waterer in the line
Twenty-eight inches long, 34 in. wide, 13 gallons across two compartments, 105 lb. It carries 100 to 250 head, which is more than double anything else in the H9 series, and it runs the AA element at 500 watts.
Thirteen gallons at nine inches tall
Getting 13 gallons into a trough only 9 in. deep takes width, which is why this unit is 34 in. across. Measure the pen divider before ordering: it is the widest opening in the H9 line.
What is inside the frame
There is no mystery inside a H9-34D. The 13 gallon tank is stainless and rounded at the corners; the frame around it is insulated 16 gauge galvanized steel; and the Model AA element sits in that frame, not against the tank.
The valve sits in an insulated compartment of its own beneath a removable cover, reached through a service door big enough for a hand and a forearm. On the H9-34D that compartment holds a 3/8 in. RM 153 valve and float assembly, with no separate rod to match. The drain takes a 1 1/2 in. rubber stopper.
The trough itself is 9 in. tall and 34 in. across with two drinking compartments, low enough that weaned pigs reach it without help. The frame is galvanized, 105 lb. empty.
Before you order
- Water and power both arrive inside the base, so the trench carries two things and should be dug once. The H9-34D footprint is 28 by 34 in., which is what your stub-ups have to land inside.
- Pour a reinforced pad about 36 by 42 in. and set it a few inches proud of the surrounding ground. Manure that cannot pack against the frame is manure that cannot rot it.
- The Model AA element draws 4.2 amps at 120 volts, so a dedicated 15 amp circuit is enough. Have the ground checked while the electrician is there: poor grounding makes stray voltage, and stock that feels a tingle at a trough quietly stop drinking.
- Empty weight is 105 lb. Plan on two strong backs or a bucket on the loader to place it.
- Hoskins rates the H9-34D at 100 to 250 hogs. Measure the pen opening before ordering, because the H9 line is sized by width and the 34 in. body is what has to fit.
- Take your water pressure reading at the waterer itself rather than at the well, and at more than one hour of the day.
Need help working out which unit you already have? Measure the outside of the base and use our waterer size finder, or browse Hoskins waterer parts.
H9-34D Documents and Parts
-
Hoskins Installation Instructions
-
Hoskins Wiring Diagram
-
H9-34D Parts List
Thirteen Gallons, 34 In. Wide, Two Compartments, Galvanized Frame.
The 34 in. wide H9. Every H9 is nine inches tall. The number after it is the width, and the H9-34D runs 34 in. across with two compartments and 13 gallons behind it.
Product Comparison
Find the waterer that is right for you, your operation and your budget. Compare similar waterers below.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Hoskins | Hoskins | Smidley | Smidley | Miraco |
| Price | |||||
| Price |
Regular price
$1,023.00
Unit price
|
Regular price
$690.00
Unit price
|
Regular price
$778.00
Unit price
|
Regular price
$1,047.00
Unit price
|
Regular price
$850.00
Unit price
|
| Heat | |||||
| Heat | |||||
| Herd Capacity | |||||
| Herd Capacity | |||||
| Trough Capacity | |||||
| Trough Capacity | |||||
| Length | |||||
| Length | |||||
| Width | |||||
| Width | |||||
| Drink Height | |||||
| Drink Height | |||||
| Overall Height | |||||
| Overall Height | |||||
More Hoskins pig and hog waterers
View all
Why producers stay with Hoskins
Nine inches tall, stainless, and low enough that a weaned pig can drink without help. The H9 troughs come in widths to suit the pen rather than the other way round, the element sits in the frame with air around it instead of against the tank, and the galvanized or stainless frame takes washing. Hoskins has built them in Hoskins, Nebraska since 1966, and they are easy to keep going because there is very little to go wrong.
-
Hoskins CH28D Automatic Cattle and Hog Waterer – 22 Gallon, 28 x 28 in.
Regular price $1,920.00Unit price -
Hoskins CH28S Automatic Cattle and Hog Waterer – 22 Gallon, 28 x 28 in.
Regular price $1,786.00Unit price -
Hoskins CH36D Automatic Cattle and Hog Waterer – 33 Gallon, 36 x 28 in.
Regular price $1,969.00Unit price -
Hoskins CH36S Automatic Cattle and Hog Waterer – 33 Gallon, 36 x 28 in.
Regular price $1,862.00Unit price -
Hoskins H9-14D Automatic Hog Waterer – 5 Gallon, 28 x 14 in.
Regular price $690.00Unit price -
Hoskins H9-14D SS Automatic Hog Waterer – 5 Gallon, 28 x 14 in.
Regular price $920.00Unit price -
Hoskins H9-22D Automatic Hog Waterer – 8 Gallon, 28 x 22 in.
Regular price $805.00Unit price -
Hoskins H9-22D SS Automatic Hog Waterer – 8 Gallon, 28 x 22 in.
Regular price $1,052.00Unit price
Frequently Asked Questions
Reading the model numbers
What do the numbers in an H9 model mean?
What do the numbers in an H9 model mean?
H9 is the height: every model in the series is 9 in. tall. The number after it is the width, 14, 22 or 34 in. The letter is the compartments, S for one and D for two. So an H9-22D is 22 in. wide with two compartments.
What is a CH model?
What is a CH model?
A combination cattle and hog waterer. One stainless tank feeds a cattle drinker on one side and a hog drinker on the other, which is why the CH models appear on both our cattle and our pig pages. They carry two valves and both stopper sizes.
What does the SS suffix mean?
What does the SS suffix mean?
Hoskins lists several H9 models with an SS suffix at 5 to 10 lb. lighter than the standard version, but does not publish what the suffix changes. We have put the question to the factory and will post the answer here rather than guess at it. Both versions share the same dimensions and the same parts.
Sizing
How many hogs will one waterer handle?
How many hogs will one waterer handle?
The 14 in. and 22 in. singles and the 14 in. double are rated up to 100 head. The H9-22D and both 34 in. singles carry up to 150, and the H9-34D carries 100 to 250. The CH combination units are rated at 100 hogs per drinker alongside their cattle figure.
How much water does a hog drink?
How much water does a hog drink?
Roughly 4 gallons a day for a mature hog and 1 to 2 for a feeder pig, with lactating sows well above that. The H9 tanks hold 5 to 13 gallons and refill continuously, so capacity matters less than making sure every pig in the pen can reach the trough.
Installation
Can one unit serve two pens?
Can one unit serve two pens?
Yes. Set a D model into a pen divider and both sides drink off one water line and one element: one trench, one circuit, one valve compartment to service. The CH series does the same thing across two species rather than two pens.
