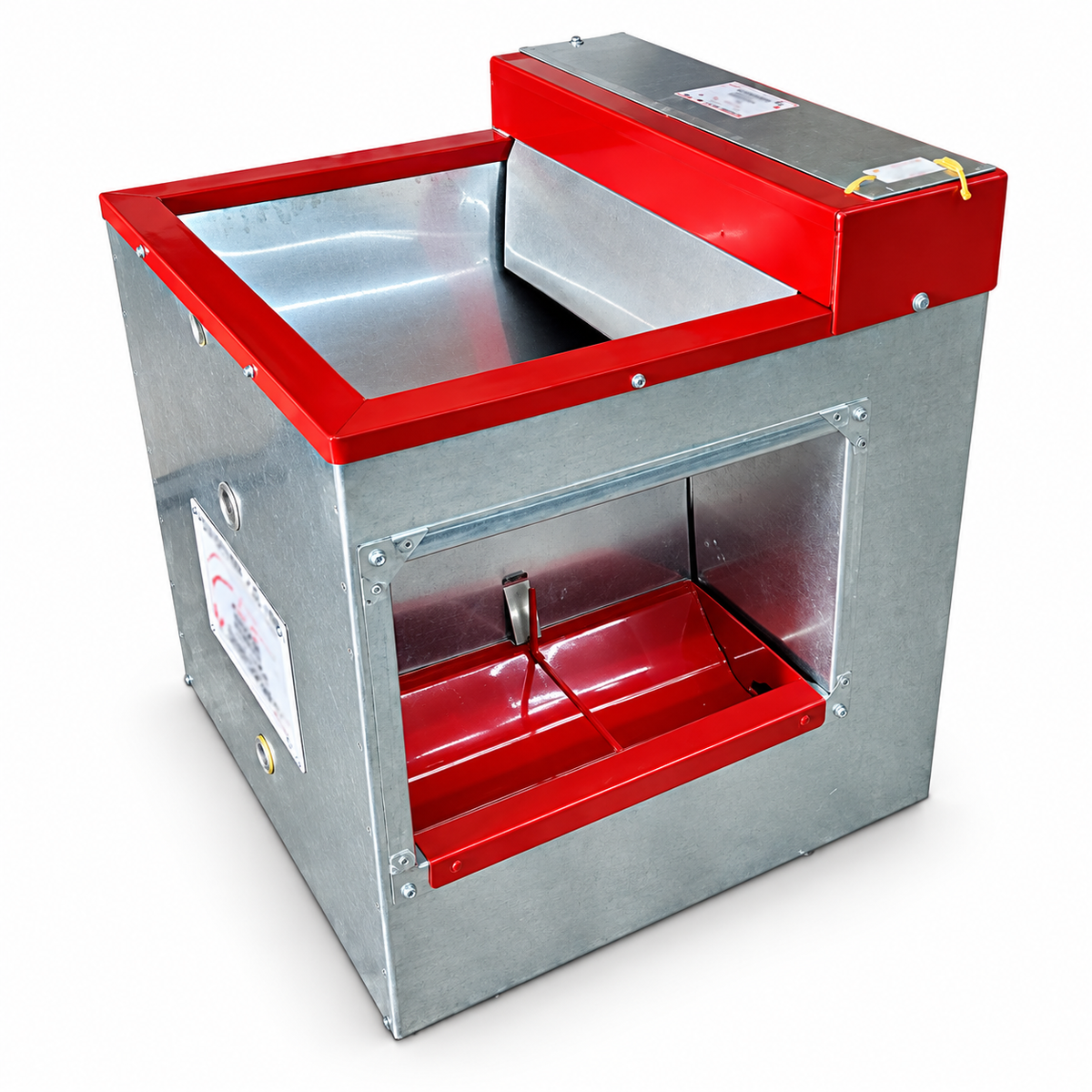

Hoskins CH28D Automatic Cattle and Hog Waterer – 22 Gallon, 28 x 28 in.
Stainless steel tank in an insulated galvanized frame. 22 gallons, 28in/71.12cm long, rated for 75 to 100 cattle, or 100 hogs per drinker.
Freight quote required if shipping. Request a freight quote here.
Available for pickup in the following locations:
- Hoskins, NE
Contact us for pick-up information.
Hoskins CH28D Automatic Cattle and Hog Waterer – 22 Gallon, 28 x 28 in. is backordered and will ship as soon as it is back in stock.
Common Applications
Common Applications
Features
Features
Specifications
Specifications
Warranty
Warranty
Delivery and Shipping
Delivery and Shipping
The CH28D is a freight item. Ask us for a freight quote and we will price it to your address, or collect it at Hoskins, NE if that suits you better.
Freight items typically take 1 to 2 weeks for delivery. Allow extra time during peak season.
Hoskins CH28D Automatic Cattle and Hog Waterer – 22 Gallon, 28 x 28...
Hoskins CH28D Automatic Cattle and Hog Waterer – 22 Gallon, 28 x 28 in. is backordered and will ship as soon as it is back in stock.
Description
Description
Twenty-eight inches, two drinkers
The double version of the CH28. Same 22 gallon tank and the same 28 x 28 x 28 in. footprint, with a second drinker and 25 lb. more steel. Hoskins rates the hog side at 100 head per drinker, so the second one is what takes you from one pen to two.
When the double is the right call
If the unit is going into a fence between two pens, order the double. If it sits against a wall serving one group, the single does the same job for less money and one less valve to service.
What is inside the frame
What makes a CH28D keep running in February is where the heat comes from. The Model 2B element is carried in the frame, so 1,000 watts warms the air in the cavity and the air warms the 22 gallons of water. No single hot patch anywhere on the tank wall.
Both valves live in insulated compartments of their own under lift-off covers: a 1/2 in. Bob valve on an 8 in. float rod for the cattle side, and a 3/8 in. RM 153 valve and float assembly for the hog side. The drains take a 2 in. stopper and a 1 1/2 in. stopper respectively.
One tank, two drinkers, 175 lb. empty, feeding cattle on one side and hogs on the other off a single water line and a single circuit.
Before you order
- Water and power both arrive inside the base, so the trench carries two things and should be dug once. The CH28D footprint is 28 by 28 in., which is what your stub-ups have to land inside.
- Pour a reinforced pad about 36 by 36 in. and set it a few inches proud of the surrounding ground. Manure that cannot pack against the frame is manure that cannot rot it.
- The Model 2B element draws 8.3 amps at 120 volts, so a dedicated 15 amp circuit is enough. Have the ground checked while the electrician is there: poor grounding makes stray voltage, and stock that feels a tingle at a trough quietly stop drinking.
- Empty weight is 175 lb. Plan on a loader rather than a carry.
- Rated for 75 to 100 cattle, or 100 hogs per drinker. Both sides draw off one tank, so size the water line for the busier side rather than the average.
- Take your water pressure reading at the waterer itself rather than at the well, and at more than one hour of the day.
Need help working out which unit you already have? Measure the outside of the base and use our waterer size finder, or browse Hoskins waterer parts.
CH28D Documents and Parts
-
Hoskins Installation Instructions
-
Hoskins Wiring Diagram
-
CH28D Parts List
Twenty-two Gallons, 2 Drinkers. Cattle One Side, Hogs the Other.
Two drinkers off one tank. The CH28D feeds two separate drinkers from the same 22 gallon tank, so cattle on one side and hogs on the other share one water line, one circuit and one place to check.
Product Comparison
Find the waterer that is right for you, your operation and your budget. Compare similar waterers below.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Hoskins | Hoskins | Smidley | Smidley | Petersen |
| Price | |||||
| Price |
Regular price
$1,920.00
Unit price
|
Regular price
$1,786.00
Unit price
|
Regular price
$2,510.00
Unit price
|
Regular price
$2,539.00
Unit price
|
Regular price
$1,150.00
Unit price
|
| Heat | |||||
| Heat | |||||
| Herd Capacity | |||||
| Herd Capacity | |||||
| Trough Capacity | |||||
| Trough Capacity | |||||
| Length | |||||
| Length | |||||
| Width | |||||
| Width | |||||
| Drink Height | |||||
| Drink Height | |||||
| Overall Height | |||||
| Overall Height | |||||
More Hoskins cattle waterers
View all
Why producers stay with Hoskins
One tank, one water line, one circuit, two kinds of stock. That is the whole idea behind the CH units, and it is the kind of thinking that has kept Hoskins in business in Hoskins, Nebraska since 1966. Stainless tank, insulated galvanized frame, element held off the steel, service doors big enough to actually work through. Nothing clever, just built right and easy to keep running.
-
Hoskins C120-16 Automatic Cattle Waterer – 95 Gallon, 120 x 26 in.
Regular price $2,090.00Unit price -
Hoskins C120-26 Automatic Cattle Waterer – 95 Gallon, 120 x 26 in.
Regular price $2,314.00Unit price -
Hoskins C28-16 Automatic Cattle Waterer – 20 Gallon, 28 x 26 in.
Regular price $1,071.00Unit price -
Hoskins C28-26 Automatic Cattle Waterer – 20 Gallon, 28 x 26 in.
Regular price $1,142.00Unit price -
Hoskins C36-16 Automatic Cattle Waterer – 31 Gallon, 36 x 26 in.
Regular price $1,120.00Unit price -
Hoskins C36-26 Automatic Cattle Waterer – 31 Gallon, 36 x 26 in.
Regular price $1,205.00Unit price -
Hoskins C48-16 Automatic Cattle Waterer – 37 Gallon, 48 x 26 in.
Regular price $1,281.00Unit price -
Hoskins C48-26 Automatic Cattle Waterer – 37 Gallon, 48 x 26 in.
Regular price $1,388.00Unit price
Frequently Asked Questions
Sizing
How many head will a Hoskins cattle waterer handle?
How many head will a Hoskins cattle waterer handle?
Hoskins rates every model by head rather than by gallons. The C28 carries 75 to 100, the C36 75 to 125, the C48 100 to 200, the C75 150 to 250, the C95 250 to 350 and the C120 up to 500. Size on peak demand rather than daily average, because cattle come to water as a bunch after feeding.
What is the difference between a 16 in. and a 26 in. model?
What is the difference between a 16 in. and a 26 in. model?
Only the frame height. A C36-16 and a C36-26 are the same 36 x 26 in. stainless tank, the same 31 gallons and the same head rating. The 26 in. frame lifts the trough out of mud, snow and bedding pack, and adds about 25 lb. to the shipping weight.
How much water does a cow drink in a day?
How much water does a cow drink in a day?
Extension figures put dry and bred cows at 6 to 15 gallons a day, nursing cows at 11 to 18, growing cattle at 4 to 15 and dairy cattle at 15 to 30. Hot weather pushes every one of those toward the top of its range.
Installation
What electrical supply does a Hoskins waterer need?
What electrical supply does a Hoskins waterer need?
Give each unit its own breaker and have the ground checked properly. The C120 at 2,100 watts draws roughly 17.5 amps at 120 volts, which is more than a general purpose circuit should carry, so settle the supply with your electrician before the trench goes in. Poor grounding is the usual source of stray voltage, and stock that gets a tingle off a waterer will quietly stop drinking from it.
Does it need a concrete pad?
Does it need a concrete pad?
A reinforced pad set a few inches proud of the surrounding ground is what makes one of these last. It keeps manure and mud out of the frame, gives the cattle clean footing, and stops the unit settling out of level. Grade so that water runs away from the pad rather than toward it.
Parts and service
What size valve is on my unit?
What size valve is on my unit?
The C28, C36 and C48 run the 1/2 in. Bob valve. The C75, C95 and C120 run the 3/4 in. All cattle models use an 8 in. float rod and a 2 in. rubber stopper. Read the model number off the plate on the service door before ordering.
Will a Hoskins waterer freeze?
Will a Hoskins waterer freeze?
The heated models combine ground heat with an electric element mounted clear of the tank, so heat reaches the water through the air space rather than through a hot spot on the steel. Keeping one open still depends on the power staying on, the element and thermostat working and the riser being protected, so check all three in autumn rather than in January.
