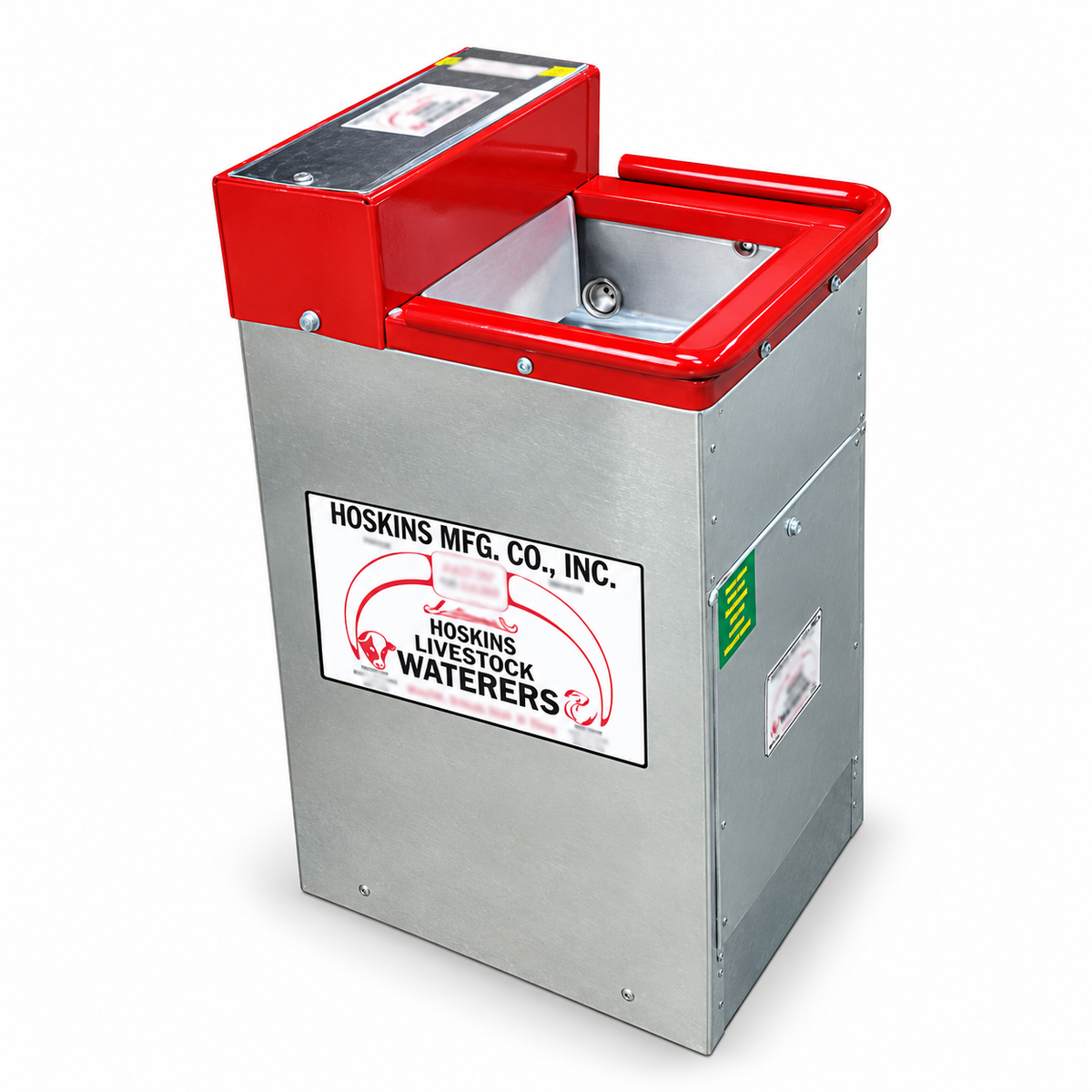

Hoskins HC7-26 Automatic Horse Waterer – 3 Gallon, 17 x 14 in.
Stainless steel tank in an insulated galvanized frame. 3 gallons, 17in/43.18cm long, rated for stall and small pen use.
Ships by UPS ground rather than freight, so it travels the same way a box of parts does.
Hoskins HC7-26 Automatic Horse Waterer – 3 Gallon, 17 x 14 in. is backordered and will ship as soon as it is back in stock.
Common Applications
Common Applications
Features
Features
Specifications
Specifications
Warranty
Warranty
Delivery and Shipping
Delivery and Shipping
The HC7-26 ships by UPS ground rather than freight. Parts for it travel the same way.
Pick-up at Hoskins, NE is available if you would rather collect it.
Hoskins HC7-26 Automatic Horse Waterer – 3 Gallon, 17 x 14 in.
Hoskins HC7-26 Automatic Horse Waterer – 3 Gallon, 17 x 14 in. is backordered and will ship as soon as it is back in stock.
Description
Description
The small tank at working height
Same 17 x 14 in. tank and the same 3 gallons as the HC7-16, on the 26 in. frame. The extra height puts the rim at a comfortable reach for a horse standing square, and keeps the unit clear of shavings in a stall or bedding in a run-in.
Sixteen pounds of difference
The tall frame takes the HC7 from 49 lb. to 65. Everything else about the two units is identical, so the decision is purely about where the rim needs to sit.
What is inside the frame
What makes a HC7-26 keep running in February is where the heat comes from. The Model A element is carried in the frame, so 250 watts warms the air in the cavity and the air warms the 3 gallons of water. No single hot patch anywhere on the tank wall.
The valve sits in an insulated compartment of its own beneath a removable cover, reached through a service door big enough for a hand and a forearm. On the HC7-26 that compartment holds a 3/8 in. RM 153 valve and float assembly, with no separate rod to match. The drain takes a 1 1/2 in. rubber stopper.
At 17 by 14 in. the HC7-26 takes up very little of a stall or a fence line, and the 26 in. frame sets the drinking height. 65 lb. empty.
Before you order
- Water and power both arrive inside the base, so the trench carries two things and should be dug once. The HC7-26 footprint is 17 by 14 in., which is what your stub-ups have to land inside.
- Pour a reinforced pad about 25 by 22 in. and set it a few inches proud of the surrounding ground. Manure that cannot pack against the frame is manure that cannot rot it.
- The Model A element draws 2.1 amps at 120 volts, so a dedicated 15 amp circuit is enough. Have the ground checked while the electrician is there: poor grounding makes stray voltage, and stock that feels a tingle at a trough quietly stop drinking.
- Empty weight is 65 lb. Two people can set it, which is part of why this size gets picked for pens that move.
- The HC7-26 is rated for a single stall or a small pen. Check the drinking height against your animals: the 26 in. frame is the thing that sets it, and the same tank is offered on the other frame.
- Take your water pressure reading at the waterer itself rather than at the well, and at more than one hour of the day.
Need help working out which unit you already have? Measure the outside of the base and use our waterer size finder, or browse Hoskins waterer parts.
HC7-26 Documents and Parts
-
Hoskins Installation Instructions
-
Hoskins Wiring Diagram
-
HC7-26 Parts List
Three Gallons, 17 by 14 In. Sized for a Stall.
The compact end of the Hoskins line. The HC7-26 holds 3 gallons in a 17 by 14 in. footprint and runs the 3/8 in. RM 153 valve and float assembly with no separate rod. 65 lb. empty, and the 26 in. frame sets the drinking height.
Product Comparison
Find the waterer that is right for you, your operation and your budget. Compare similar waterers below.
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | Hoskins | Hoskins | Ritchie Industries | Classic Equine by Ritchie |
| Price | ||||
| Price |
Regular price
$704.00
Unit price
|
Regular price
$797.00
Unit price
|
Sale price
$999.00
Regular price
$1,049.00
Unit price
|
Sale price
$689.99
Regular price
$732.00
Unit price
|
| Heat | ||||
| Heat | ||||
| Herd Capacity | ||||
| Herd Capacity | ||||
| Trough Capacity | ||||
| Trough Capacity | ||||
| Length | ||||
| Length | ||||
| Width | ||||
| Width | ||||
| Drink Height | ||||
| Drink Height | ||||
| Overall Height | ||||
| Overall Height | ||||
More Hoskins horse waterers
View all
Why producers stay with Hoskins
A horse tank gets looked at every day, so it may as well be one you can see into. The Hoskins horse units are stainless inside an insulated galvanized frame, with rounded corners, no ball to push aside and the heating element held off the tank so warmth arrives through the air. Built in Hoskins, Nebraska since 1966 — small units, but the same construction as the hundred-twenty inch cattle troughs.
-
Hoskins HC14-16 Automatic Horse Waterer – 5 Gallon, 28 x 14 in.
Regular price $748.00Unit price -
Hoskins HC14-26 Automatic Horse Waterer – 5 Gallon, 28 x 14 in.
Regular price $797.00Unit price -
Hoskins HC17-16 Automatic Horse Waterer – 8 Gallon, 28 x 17 in.
Regular price $816.00Unit price -
Hoskins HC17-26 Automatic Horse Waterer – 8 Gallon, 28 x 17 in.
Regular price $883.00Unit price -
Hoskins HC7-16 Automatic Horse Waterer – 3 Gallon, 17 x 14 in.
Regular price $673.00Unit price -
Hoskins HC7-26 Automatic Horse Waterer – 3 Gallon, 17 x 14 in.
Regular price $704.00Unit price
Frequently Asked Questions
Sizing
How much water does a horse drink in a day?
How much water does a horse drink in a day?
Ten to fifteen gallons is the usual figure for a mature horse at rest. Work, heat and dry feed all push it higher. A Hoskins horse unit holds between 3 and 8 gallons and refills continuously, so the tank size is about turnover rather than about holding a day of water.
Why is the tank so small?
Why is the tank so small?
Deliberately. A 3 gallon tank with a horse on it turns over several times a day, so what the horse drinks has been in the trough for hours rather than days. A big tank on a small group goes stale and grows a film, and no amount of capacity fixes that.
Should I take the 16 in. or the 26 in. frame?
Should I take the 16 in. or the 26 in. frame?
The tank is identical either way. Take the 26 in. frame where shavings or bedding build up, or where you want the rim at a comfortable reach for a horse standing square. Take the 16 in. where the unit sits on a pad in open ground.
Choosing a model
Can I put one in a fence between two paddocks?
Can I put one in a fence between two paddocks?
Yes, and the HC14 is the model Hoskins points at that job. One unit and one water line serve a paddock on each side. Set the waterer first and build the fence to it, leaving the frame square on its pad with the posts clear so it can be pulled for service.
Can I water cattle from a horse unit?
Can I water cattle from a horse unit?
Hoskins describes the HC14 and HC17 as horse and cattle waterers, and the HC17 is aimed at smaller operations running both. For a group that is mostly cattle and growing, the C28 is the better starting point.
Parts and service
Which horse models have a float rod?
Which horse models have a float rod?
Only the HC17, which uses a 3/8 in. Bob valve on a 4 in. float rod. The HC7 and HC14 use the 3/8 in. RM 153 valve and float assembly instead, with no rod. The 4 in. rod is unique to the HC17 in the whole Hoskins line, and rod length sets your water level, so it is not a part to substitute.
