Hoskins 3/8 in. GP Valve Assembly
Hoskins 3/8 in. GP Valve Assembly is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
All products will ship according to shipping option selected at checkout. Standard USPS and UPS average shipping times are 2-7 and freight up to 2 weeks. Allow extra time during peak season and the holidays. For more information see our Shipping Policy.
Hoskins 3/8 in. GP Valve Assembly
Description
Description

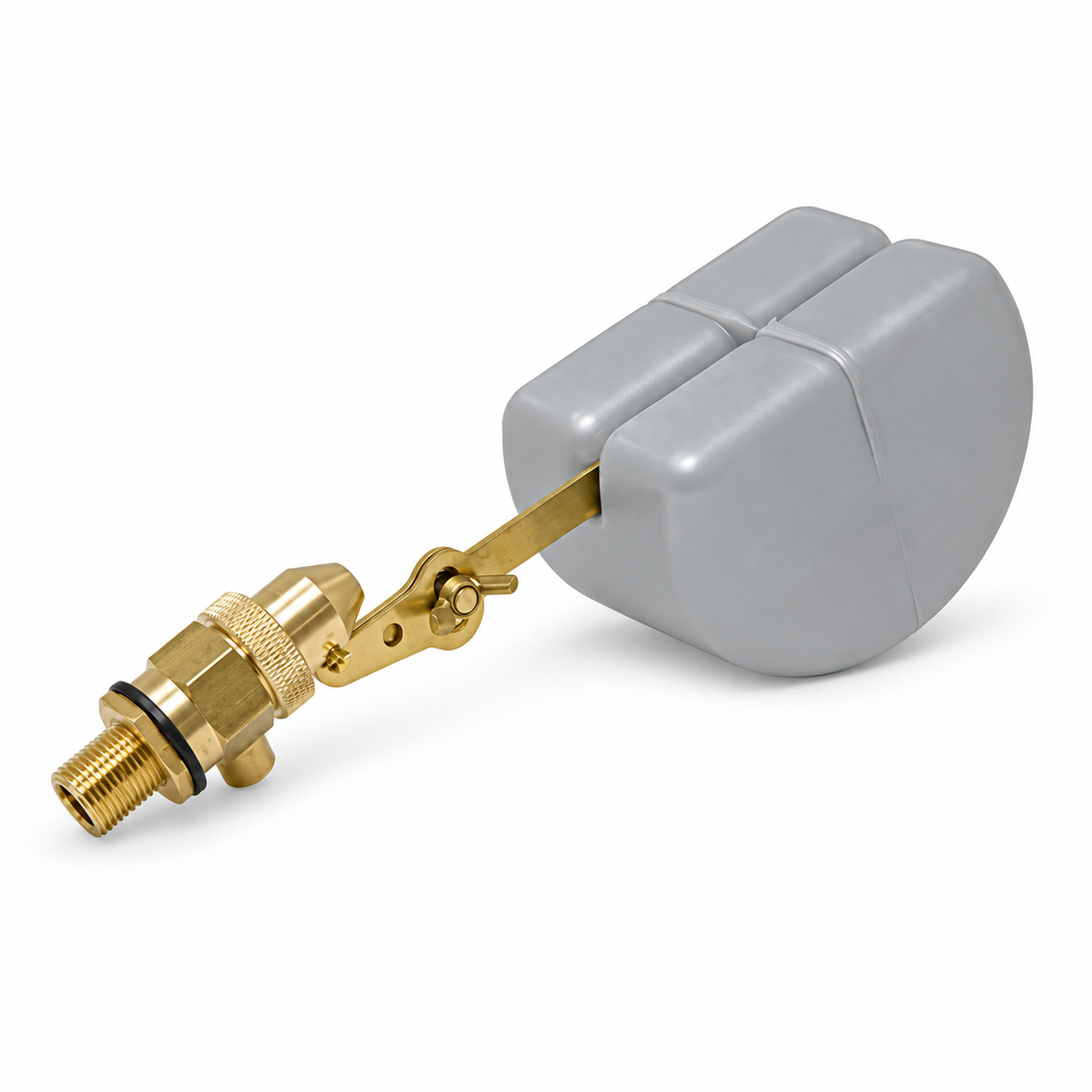

Hoskins 3/8 in. GP valve assembly
This is the RM 153, the complete 3/8 in. valve and float assembly that Hoskins fits to the horse units, every H9 hog trough and the hog side of the CH combination waterers. It comes built up as one piece rather than as a valve, a rod and a float to put together.
No float rod on these models
The RM 153 is a self-contained valve and float. The units it goes in do not use a separate float rod at all, which is why you will not find a rod length on their spec plates. If your unit lists a rod length, you want a Bob valve instead, not this.
Specifications
- Size: 3/8 in.
- Type: RM 153 valve and float assembly, complete
Which Hoskins units take it
- Hoskins HC7-16
- Hoskins HC7-26
- Hoskins HC14-16
- Hoskins HC14-26
- Hoskins H9-14D
- Hoskins H9-14D SS
- Hoskins H9-22S
- Hoskins H9-22S SS
- Hoskins H9-22D
- Hoskins H9-22D SS
- Hoskins H9-34S
- Hoskins H9-34S SS
- Hoskins H9-34D
- Hoskins H9-34D SS
- Hoskins CH28S (hog side)
- Hoskins CH28D (hog side)
- Hoskins CH36S (hog side)
- Hoskins CH36D (hog side)
The four CH units carry two valves, this one for the hog side and a 1/2 in. Bob valve on an 8 in. rod for the cattle side.
While the cover is off
The valve sits in its own insulated compartment behind the service door. With the cover already off it is worth checking the drain stopper at the same time, and these models all take the 1 1/2 in. rubber stopper.
Not certain which valve your unit runs? Send the model number off the plate through our contact form and we will confirm it before you order.
