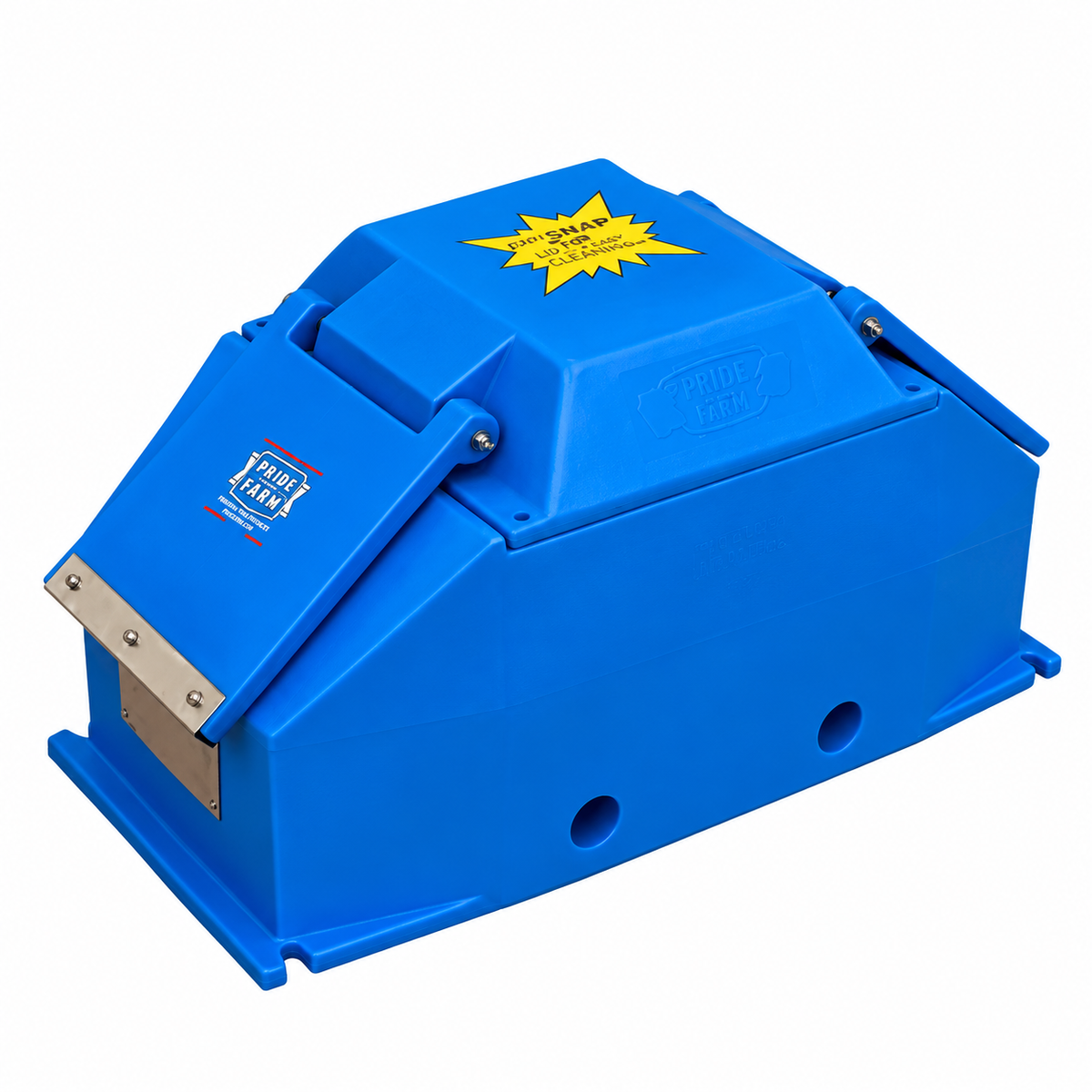

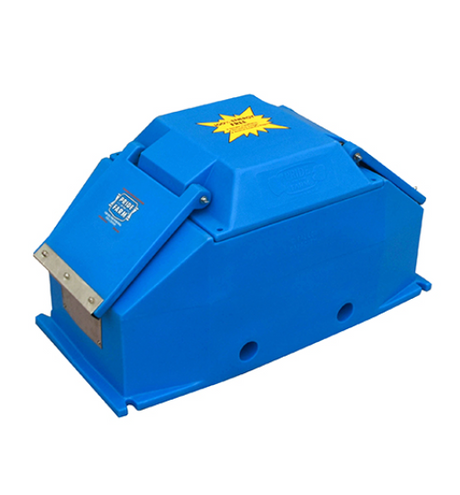

Pride of the Farm Polar Max WPM10 Hog Waterer - Energy Free
100 Hogs, 50 Sows
Ships by UPS at a shipping weight of 61 pounds.
These waterers are built at the factory as they are ordered, so please allow 2 to 3 weeks for shipping.
Available for pickup in the following locations:
- Houghton, IA
Contact us for pick-up information.
Pride of the Farm Polar Max WPM10 Hog Waterer - Energy Free is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
Warranty
Warranty
Delivery and Shipping
Delivery and Shipping
The WPM10 ships by UPS at a shipping weight of 61 pounds. Larger units can be treated as oversize by the carrier, which adds to the cost. Add it to your cart and enter your address at checkout to see the exact shipping cost.
These waterers are built at the factory as they are ordered, so please allow 2 to 3 weeks for shipping. This item is available for pick-up in Houghton, Iowa.
Pride of the Farm Polar Max WPM10 Hog Waterer - Energy Free
Pride of the Farm Polar Max WPM10 Hog Waterer - Energy Free is backordered and will ship as soon as it is back in stock.
Description
Description
Please allow 2 to 3 weeks for shipping
These waterers are built at the factory as they are ordered, so plan on two to three weeks from the time the order goes in.
The Pride of the Farm WPM10 Polar Max is an energy free hog waterer. One insulated flap, 10 gallons, and enough water for 100 market hogs or 50 sows. In the right conditions there is nothing to plug in, no heater to run and no electric bill through the coldest months.
It suits hog barns and finishing pens where you want ice free water through winter without running power to the drinker. For sheep, goats and calves, the WPM10A is the same body with a smaller flap.
WPM10 specifications
- Capacity: 10 gallons
- Animals: 100 market hogs or 50 sows
- Openings: one insulated flap
- Dimensions: 38 inches long, 19 inches wide, 20 inches tall
- Drinking height: 10.76 inches
- Shipping weight: 61 pounds, ships UPS
How an energy free drinker works
There is no heater. Heat energy comes from the ground water entering the drinker between 45 and 56 degrees. Foam insulation between the double walls, rated R-7.50 per inch, holds that heat, and patented baffles isolate the drinking water from the energy storage body under the valve cover. Every drink replenishes the heat that has been lost.
This waterer is use based
The Polar Max carries no heater, so every bit of warmth in it arrives with the water. The inventory needs to turn over about twice a day to keep that heat coming, which works out to roughly 5 to 15 animals depending on the model and whether the waterer is sheltered from the wind. The insulation holds heat, it cannot make any.
Check your numbers first. A light bunch on a waterer built for a bigger one will ice over whatever the R value says, so with low head counts go heated or add supplemental heat.
Polar Max features
- Insulated flap instead of a ball or float, so animals open it with the same rooting motion they are born with and every flap can be used at once
- Flaps sit at an angle, not flat, so ice and contamination shed off instead of building up
- Double wall construction with a seamless sidewall that cannot leak
- Foam insulation rated R-7.50 per inch with no hazardous chlorofluorocarbons
- Hindered amine light stabilizer for ultraviolet protection
- Sealed bottom keeps out moisture and rodents
- Two drain holes for a fast cleanout
- Nonsiphoning DuraPride valve, stainless steel bolts and a removable top for easy access to the plumbing
- Notched flanges for easy anchoring, anchor package model 383344 available
- Approved for Grade A installations, optional wing bolts model OF403WB for Grade A inspections
- Weather strip and an insulated sleeve for the supply line come with each unit
Installation
Set it level on a pad with a riser tile of at least 8 inches sealed airtight to the pad, and run the supply line up inside the tile without letting it touch. No insulated tube is needed and it fits most existing pads. The valve is molded with ABS resin, so use standard teflon tape or a plastic compatible teflon sealant only, never pipe dope or anything formulated with PTFE.
Parts lists that include this part
Ten Gallons, No Cord to the Pen
One hundred hogs or 50 sows off ten gallons, with no power run to the pen and no winter electric bill, given the right conditions. The animals keep it open themselves: every drink pulls warmer water up from below, which is why a pen that is actually drinking does not freeze.
Polar Max Comparison
Compare the Pride of the Farm Polar Max energy free drinkers.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Pride of the Farm | Brower | Miraco | Smidley | Brower |
| Price | |||||
| Price |
Regular price
$690.00
Unit price
|
Regular price
$712.00
Unit price
|
Regular price
$546.00
Unit price
|
Regular price
$778.00
Unit price
|
Regular price
$466.00
Unit price
|
| Heat | |||||
| Heat | |||||
| Herd Capacity | |||||
| Herd Capacity | |||||
| Trough Capacity | |||||
| Trough Capacity | |||||
| Length | |||||
| Length | |||||
| Width | |||||
| Width | |||||
| Drink Height | |||||
| Drink Height | |||||
| Overall Height | |||||
| Overall Height | |||||
Shop WPM10 Parts
View all
Need Parts for your WPM10?
Shop the Pride of the Farm WPM10 parts list for every part that fits your drinker.
-
-
-

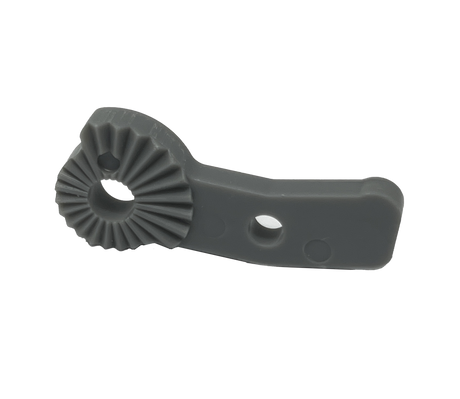

Pride of the Farm Valve Arm VP29
Regular price $2.50Unit price -

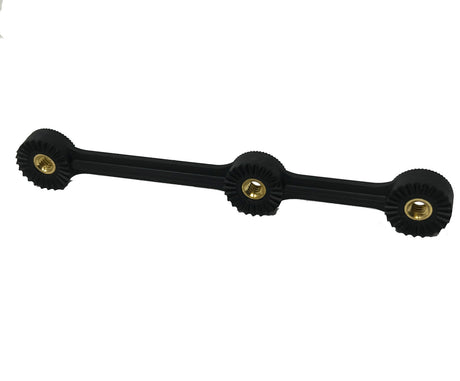

Pride of the Farm VA6B 6" replacement float arm
Regular price $6.98Unit price -

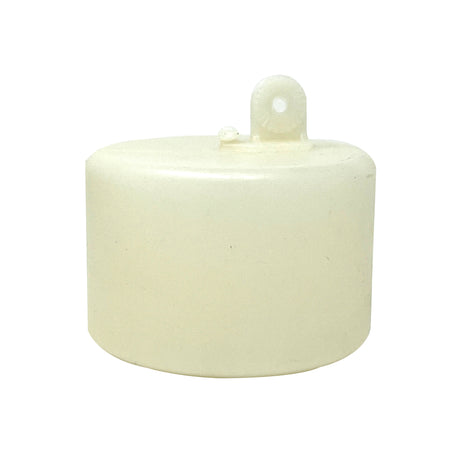

Pride of the Farm VM117 Poly Float
Regular price $9.99Unit price -

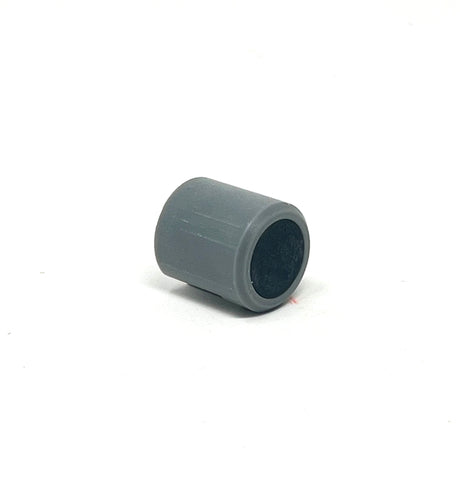

Pride of the Farm VP28 VP2 Plunger with Valve Rubber
Regular price $2.00Unit price -
Pride of the Farm Float and 6 inch float arm assembly
Regular price $18.37Unit price -

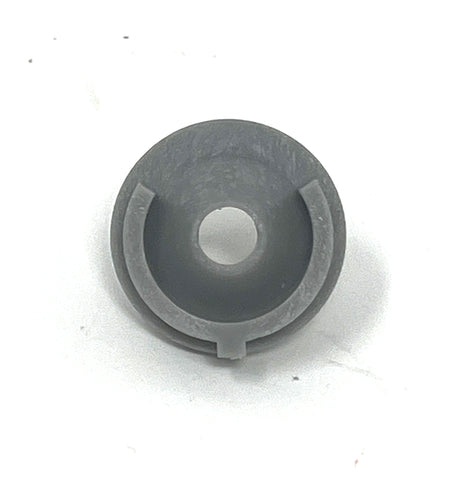

Pride of the Farm 1/4 inch orifice replacement for Low Pressure VP2
Regular price $3.99Unit price
Frequently Asked Questions
How many head will the WPM10 water?
How many head will the WPM10 water?
It is rated for 100 hogs, 50 sows, holding 10 Gallons.
How does it work with no power
How does it work with no power
The WPM10 is energy free in the right conditions, with nothing to plug in and no electric bill. Heat energy comes from the ground water entering the drinker between 45 and 56 degrees, foam insulation between the walls holds it, and patented baffles isolate the drinking water from the energy storage body under the valve cover. It leans on enough animals drinking to keep that water turning over, so in hard cold or with light numbers plan on supplemental heat.
How many animals do I need using it?
How many animals do I need using it?
Enough animals that the water turns over about twice a day, which is roughly 5 to 15 head depending on the drinker, the size of the animals and whether it is sheltered. If the incoming water is colder than about 40 degrees, from a pond or a mountain spring, you can see icing in the openings.
What does installation take?
What does installation take?
Set it level on a pad with a riser tile of at least 8 inches sealed airtight to the pad, and run the supply line up inside the tile without touching it. No insulated tube is needed and it fits most existing pads. Weather strip and an insulated sleeve for the supply line come with the unit, and the anchor package, model 383344, has the stainless bolts, washers, plates and nuts.
How do I seal the threads?
How do I seal the threads?
The valve is molded with ABS resin. Use standard teflon tape or a plastic compatible teflon sealant only. Do not use pipe thread sealant, commonly called pipe dope, and do not use anything formulated with PTFE.
How do I get new animals started on the flap?
How do I get new animals started on the flap?
Most animals open the flap without training. If some are hesitant, hold a flap open with a tarp strap for a day or two, or turn a flap over and leave it upside down for 24 to 48 hours.
How do I clean it out?
How do I clean it out?
Two drain holes let you flush it out fast. Tolerance to water level means you do not have to chase summer and winter settings the way you do with a ball or flat closure that can stick.
How does the WPM10 ship?
How does the WPM10 ship?
The WPM10 ships UPS at a shipping weight of 61 pounds. Some UPS items are considered oversize and will incur additional shipping charges. If you are ordering several units, complete the Freight Quote form and we will price the delivery for you. This item is available for pick-up in Houghton, Iowa.
