Description
Description

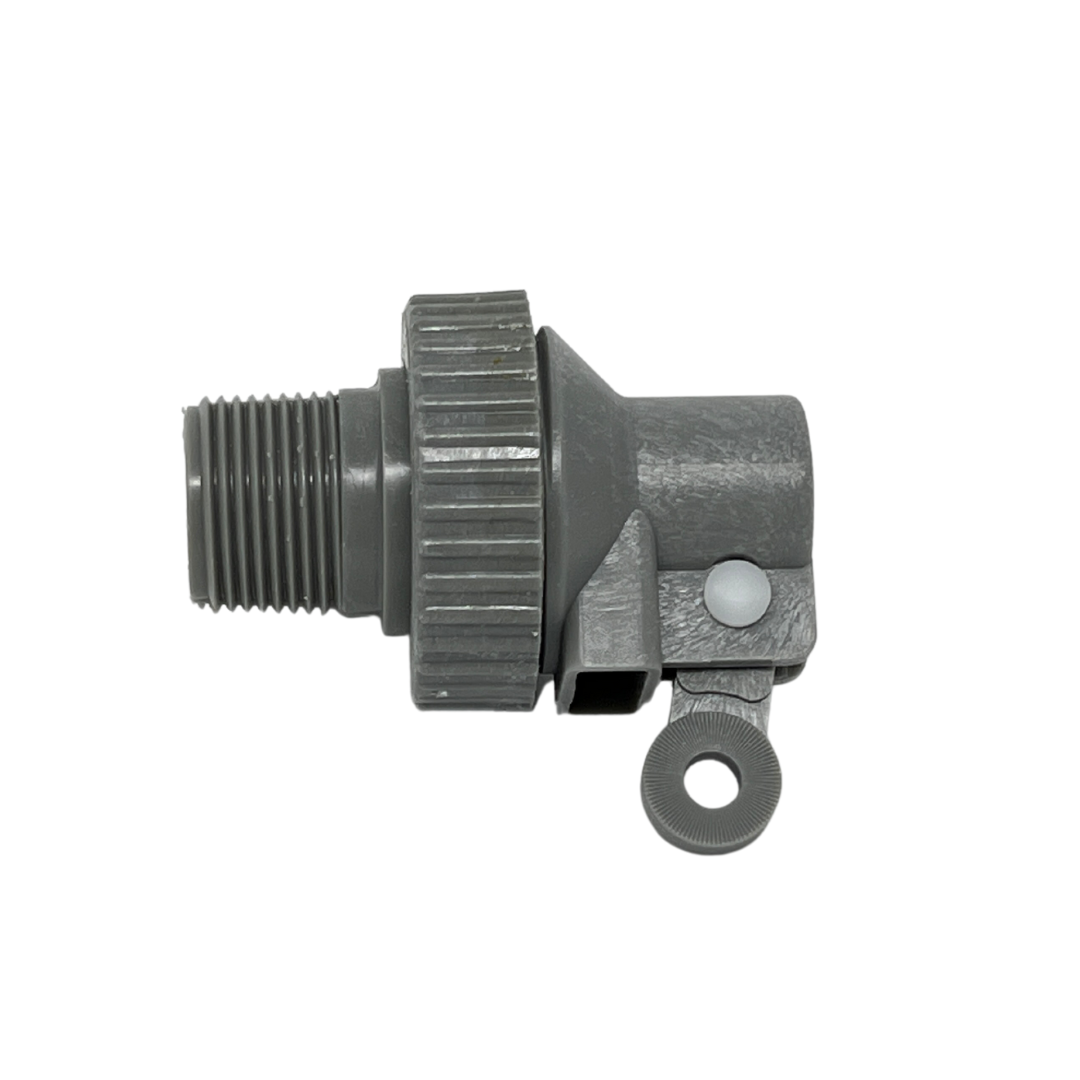

The Pride of the Farm VP224K valve is the next generation valve which replaces the VP1 valve series. The VP224K is found in the Poly waterers. Pride of the Farm valve provides simplicity with few moving parts and has the following features.
- Greater flow rate due to the plunger traveling a longer distance
- Greater tolerance to operation in dirty conditions
- No diaphragm, cam link or power link which means fewer maintenance items.
Easily replaces the VP1 valve and designed with fewer parts to create increased water flow.
NOTE: The fully assembled valve part numbers are VP221, VP223, VP224, VP226, VP227. The last 2 numbers on VP2 match up with the VP1 valve. If your drinker originally took the VP124, order a VP224, etc.
TIP
If you want to replace a VP1 valve with a VP2 valve, the base and assembly nut can remain connected to your water supply line.
Valve hook up suggestions for better service
- Flush lines thoroughly to remove all foreign material
- DURAPRIDE Valve should not be subjected to excessive tool pressures at any time
- Hold inlet pipe securely while connecting to water supply line
- Knurled ring o valve to be hand tightened only. When replacing valve base to pip fittings- use Teflon tape or pipe seal, hand tighten plus one half turn with 1" socket of box end wrench.
| VP2 Maximum Shut-Off Pressure (PSI) in Relation to orifice Size and Float Arm Length | |
| VP26 - 1/4" Orifice | |
| VA225P - 1-1/8" Arm | 40 PSI |
| WC725P - 2-1/2" Arm | 65 PSI |
| WC725P - 3-5/8" Arm | 85 PSI |
| VA4 - 4" Arm | 85 PSI |
| VA6 - 6" Arm | 85 PSI |
| Valve Flow Rates | |
| Valve Number: Orifice Number: |
VP224 VP26-1/4"(.250) |
| PSI | Gallons Per Minute |
| 25 | 4.2 |
| 40 | 7.5 |
| 60 | 9.2 |
| 90 | 9.7 |
Orifices are interchangeable on all valves.
