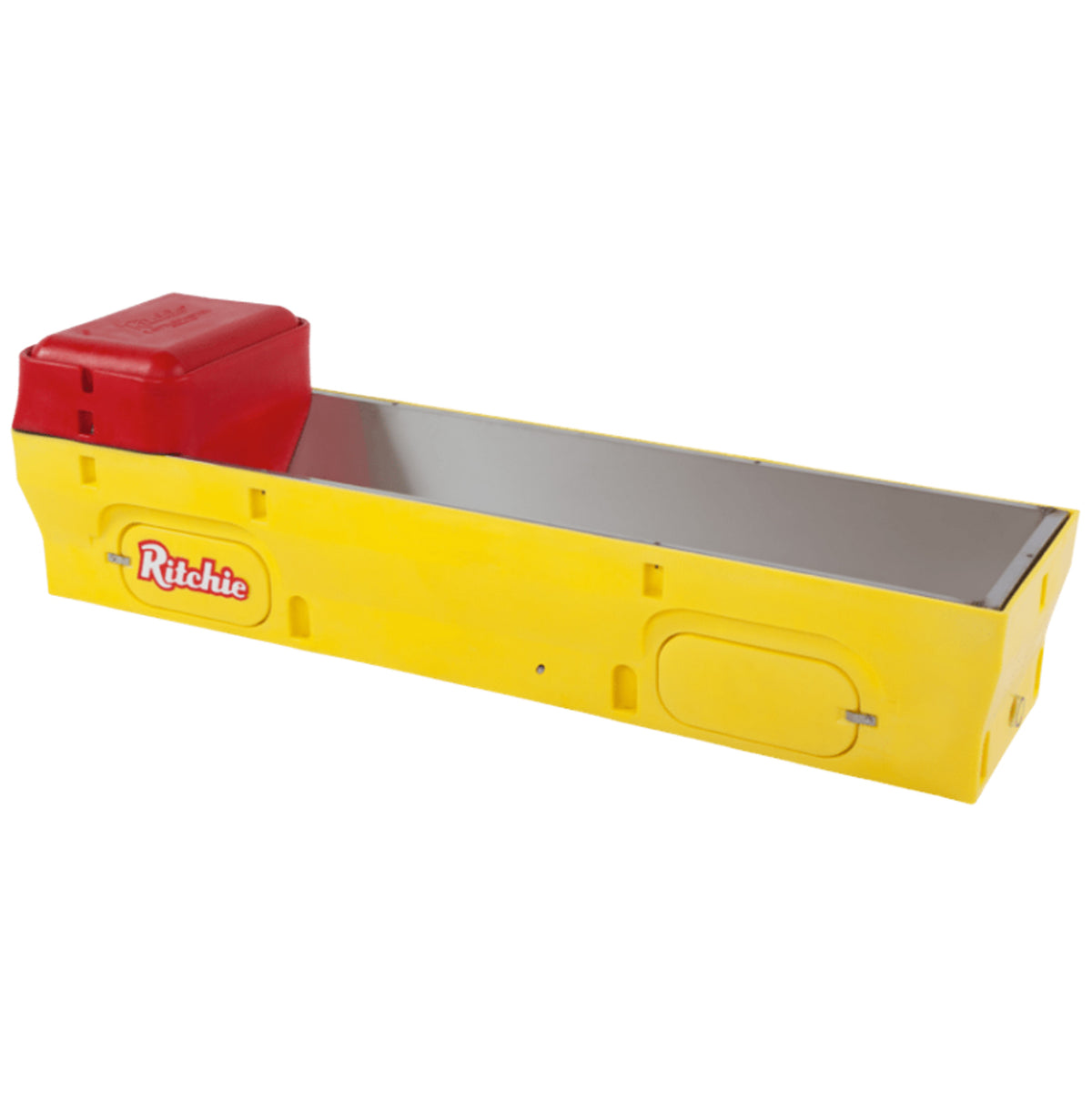

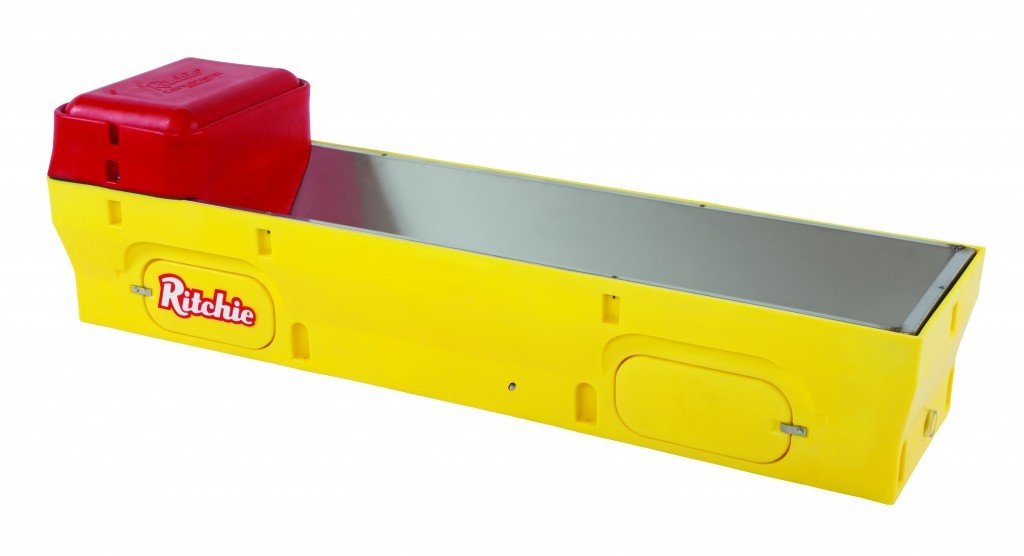

Ritchie CattleMaster 840 #18235

• Large cattle pastures
• Feedlots and commercial operations
• Dairy barns and freestall facilities
• Fence-line watering systems
• High-traffic livestock watering areas
• Cold climate cattle operations

• Install using the same concrete pad and drain-out configuration as the CattleMaster 84
• Electric heat standard; attached directly under the trough for maximum performance
• Trough and hardware is 304 stainless steel for durablility and long life
• Meets Grade A dairy recommendations
• Trough slopes toward drain for quick and easy cleaning
• Unique patented water seal technology keeps cold air away from valve
• Cable heater provides extra valve and supply line protection
• Fully adjustable thermostat
• Constant flow optional
• 10 year warranty

Part No.18235
Length 86in/218.44cm
Width 23.5in/59.69cm
Overall Height 24in/60.96cm
Shipping Weight 123lb/55.79kg
Drinking Height 16in/40.64cm
Heat 1048W (8.7A @ 120V)
Capacity 35gal/132.49L
Herd Capacity 300 beef, 150 dairy

Ritchie warrants its waterers against manufacturing defect for ten years, with coverage depending on how the unit is built.

Poly units: the base, top and ball closures carry a ten year limited warranty, covered at 100 percent for the first five years, then declining 20 percent per year through the remaining five years.

Stainless steel units: the stainless trough and stainless valve chamber frame carry a ten year limited warranty, plus ten years of corrosion coverage, at 100 percent for the entire ten year period.

Parts, such as floats, valves and heating elements, are warranted for one year from the date of purchase, at 100 percent against manufacturing defect.

See your instruction manual or ritchiefount.com for complete warranty information.

This item is a freight item. Please reach out to us for a freight quote otherwise ask about our pick-up options.

Freight items typically take 1-2 weeks for delivery. Allow extra time during peak season.
