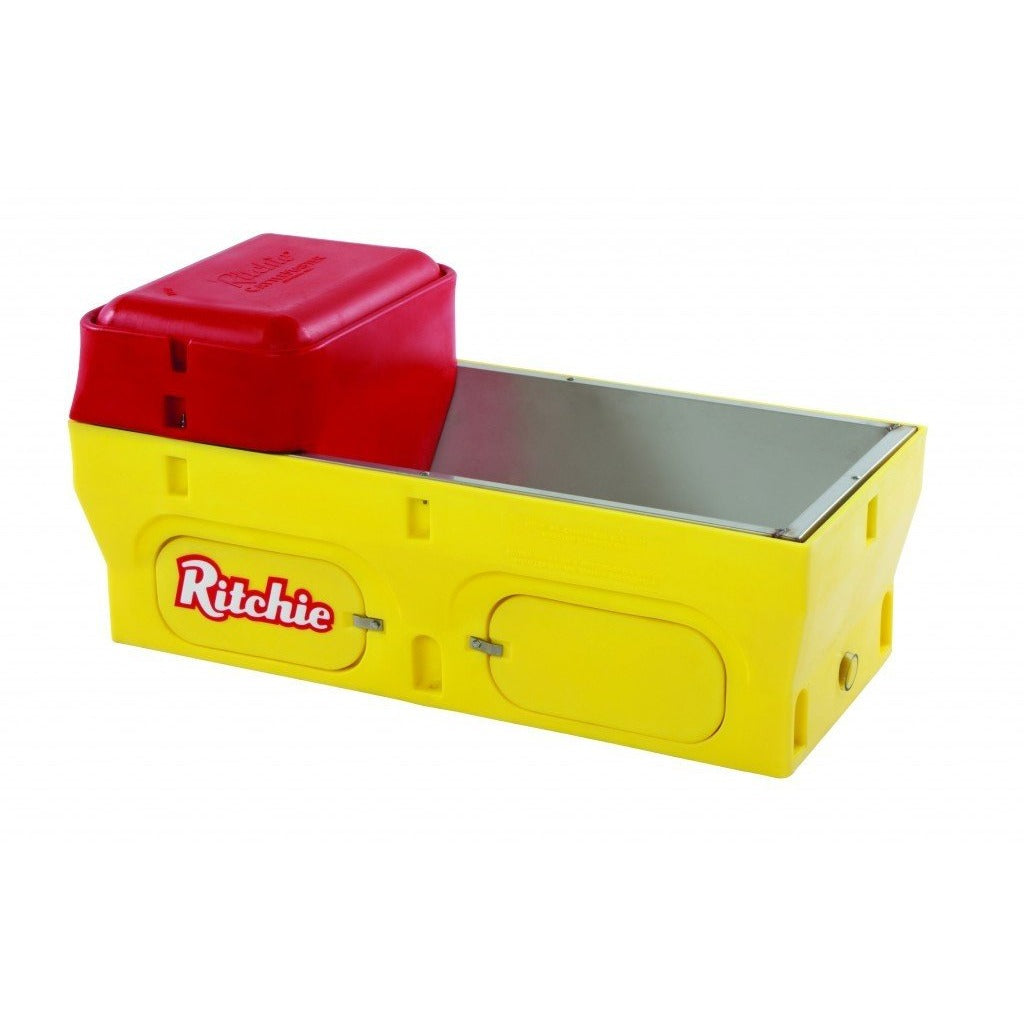

Ritchie CattleMaster 480 - 240V #18251

• Beef cattle pastures
• Feedlots and backgrounding operations
• Dairy barns and freestall facilities
• Fence-line watering systems
• High-traffic livestock watering areas
• Cold climate livestock operations

• Install using the same concrete pad and drain-out configuration as the CattleMaster 48
• Electric heat standard; attached directly under the trough for maximum performance
• Trough and hardware is 304 stainless steel for durability and long life
• Meets Grade A dairy recommendations
• Trough slopes toward drain for quick and easy cleaning
• Unique water seal technology keeps cold air away from valve
• Cable heater provides extra valve and supply line protection
• Fully adjustable thermostat - 0-100 degrees
• Constant flow optional

Part No. 18251
Length 51in/129.54cm
Width 23.5in/59.69cm
Overall Height 24in/60.96cm
Shipping Weight 90lb/40.82kg
Drinking Height 16in/40.64cm
Heat 548W (4.6A @ 120V)
Capacity 20gal/75.71L
Herd Capacity 200 beef, 100 dairy

Ritchie warrants its waterers against manufacturing defect for ten years, with coverage depending on how the unit is built.

Poly units: the base, top and ball closures carry a ten year limited warranty, covered at 100 percent for the first five years, then declining 20 percent per year through the remaining five years.

Stainless steel units: the stainless trough and stainless valve chamber frame carry a ten year limited warranty, plus ten years of corrosion coverage, at 100 percent for the entire ten year period.

Parts, such as floats, valves and heating elements, are warranted for one year from the date of purchase, at 100 percent against manufacturing defect.

See your instruction manual or ritchiefount.com for complete warranty information.

This item is a freight item. Please reach out to us for a freight quote otherwise ask about our pick-up options.

Freight items typically take 1-2 weeks for delivery. Allow extra time during peak season.
