Franklin P-80 Hog Waterer 80-Gallon waterer #47050
Franklin P-80 Hog Waterer 80-Gallon waterer #47050 is backordered and will ship as soon as it is back in stock.
Features
Features
Specifications
Specifications
Delivery and Shipping
Delivery and Shipping
All products will ship according to shipping option selected at checkout. Standard USPS and UPS average shipping times are 2-7 and freight up to 2 weeks. Allow extra time during peak season and the holidays. For more information see our Shipping Policy.
Franklin P-80 Hog Waterer 80-Gallon waterer #47050
Description
Description

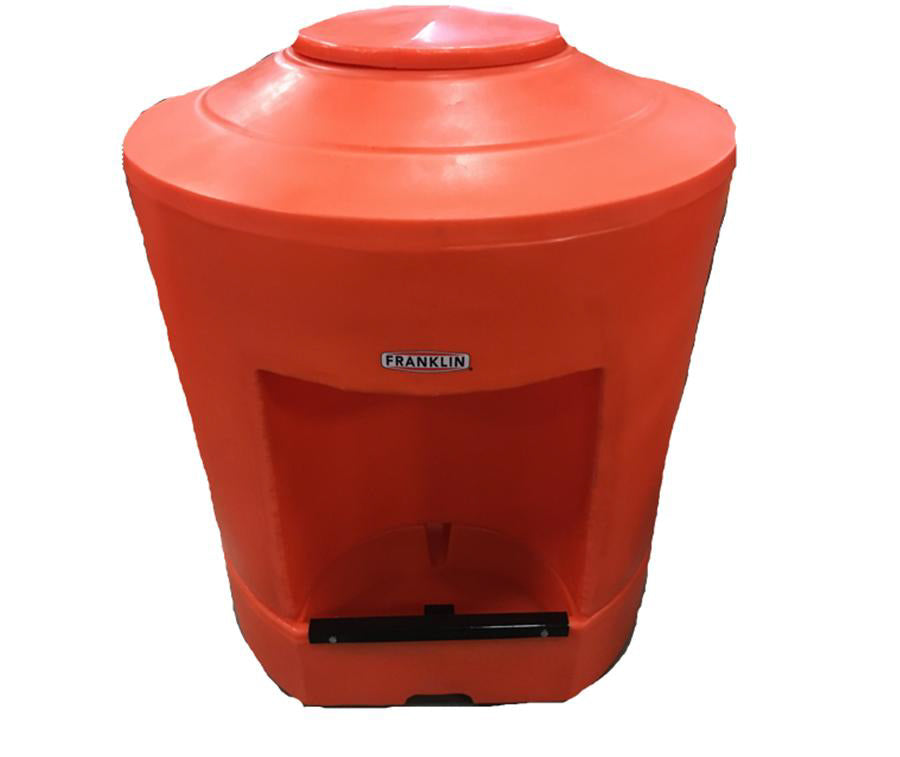

The Franklin P-80 holds 80 gallons and has two large drinking openings, each 16 3/4 inches across. The wide access top makes filling straightforward, and the open center means you can clean it out with a garden hose rather than taking anything apart.
Water level is held by the 73-V gravity flow valve. For cold weather the unit can be heated with a C-250 or C-500 immersion heater.
Eighty Five Gallons, Gravity Flow, Heater Ready
The Franklin P-80 holds 85 gallons behind two large 16 3/4 inch drink openings, fed by a gravity flow 73 v-valve. The large access top makes filling and inspection simple, and a C-250 or C-500 immersion heater drops in when you need winter protection.
Product Comparison
Find the waterer that is right for you, your operation and your budget. Compare the Franklin waterers below.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Franklin | Franklin | Franklin | Franklin | Franklin |
| Price | |||||
| Price |
Regular price
$1,199.99
Unit price
|
Regular price
$1,212.30
Unit price
|
Regular price
$1,129.99
Unit price
|
Regular price
$750.00
Unit price
|
Regular price
$135.99
Unit price
|
| Heat | |||||
| Heat | |||||
| Herd Capacity | |||||
| Herd Capacity | |||||
| Trough Capacity | |||||
| Trough Capacity | |||||
Parts That Fit the Franklin P-80
View all
Need Parts for your Franklin P-80?
Shop the Franklin parts list for the floats, valves, drain plugs, heaters and accessories that fit your waterer.
Franklin Waterer Questions
Which Franklin model do I have?
Which Franklin model do I have?
Look for the tag inside the lid or on the side of the tank. Franklin has built the AP, F, PC and E series over the years and the parts do not cross between them, so the model number is what tells us which float, valve or heater fits. If the tag is gone, send us a photo and we will identify it for you.
Are parts still available for the older Franklin waterers?
Are parts still available for the older Franklin waterers?
Yes. The AP, F, PC and E series units are out of production, but we still stock floats and valves, heaters and thermostats, drain plugs, lids, gaskets and hardware for them. Every discontinued model has its own parts list on our site.
My waterer runs constantly or overfills. What should I check first?
My waterer runs constantly or overfills. What should I check first?
Nine times out of ten it is the float or the valve. A float that has taken on water sits too low and never shuts the valve off, and a valve with a worn seat will weep even when the float is set right. Check the float first since it is the cheaper part, and if it is dry and floating level, replace the valve.
Does a heated Franklin need a dedicated circuit?
Does a heated Franklin need a dedicated circuit?
Follow the wiring instructions that come with the unit and have an electrician confirm the circuit and ground. A waterer sitting in a wet lot is not the place to guess. Do not run one on an extension cord.
How do I keep it from icing up in the coldest weather?
How do I keep it from icing up in the coldest weather?
Make sure the heater and thermostat are both working, keep the lid seals in good shape so the heat stays in, and keep the unit full enough that the water keeps turning over. A waterer serving too few animals for its size is the most common reason one freezes even with the heat running.
