Smidley 10 Drink Stainless Steel Hog Bar 91501010S
10 drink, up to 250 head
Freight quote required if shipping. Request a freight quote here.
Available for pickup in the following location:
- Britt, IA
Contact us for pick-up information.
Smidley 10 Drink Stainless Steel Hog Bar 91501010S is backordered and will ship as soon as it is back in stock.
Common Applications
Common Applications
Features
Features
Specifications
Specifications
Delivery and Shipping
Delivery and Shipping
This item can be shipped UPS. Some UPS items are considered oversize and will incur additional shipping charges.
If you are looking at a bulk shipment, complete the Freight Quote request for best pricing.
Smidley 10 Drink Stainless Steel Hog Bar 91501010S
Smidley 10 Drink Stainless Steel Hog Bar 91501010S is backordered and will ship as soon as it is back in stock.
Description
Description
Made to order
The 10 drink is built at the factory once the order goes in, so plan on extra time before it ships.

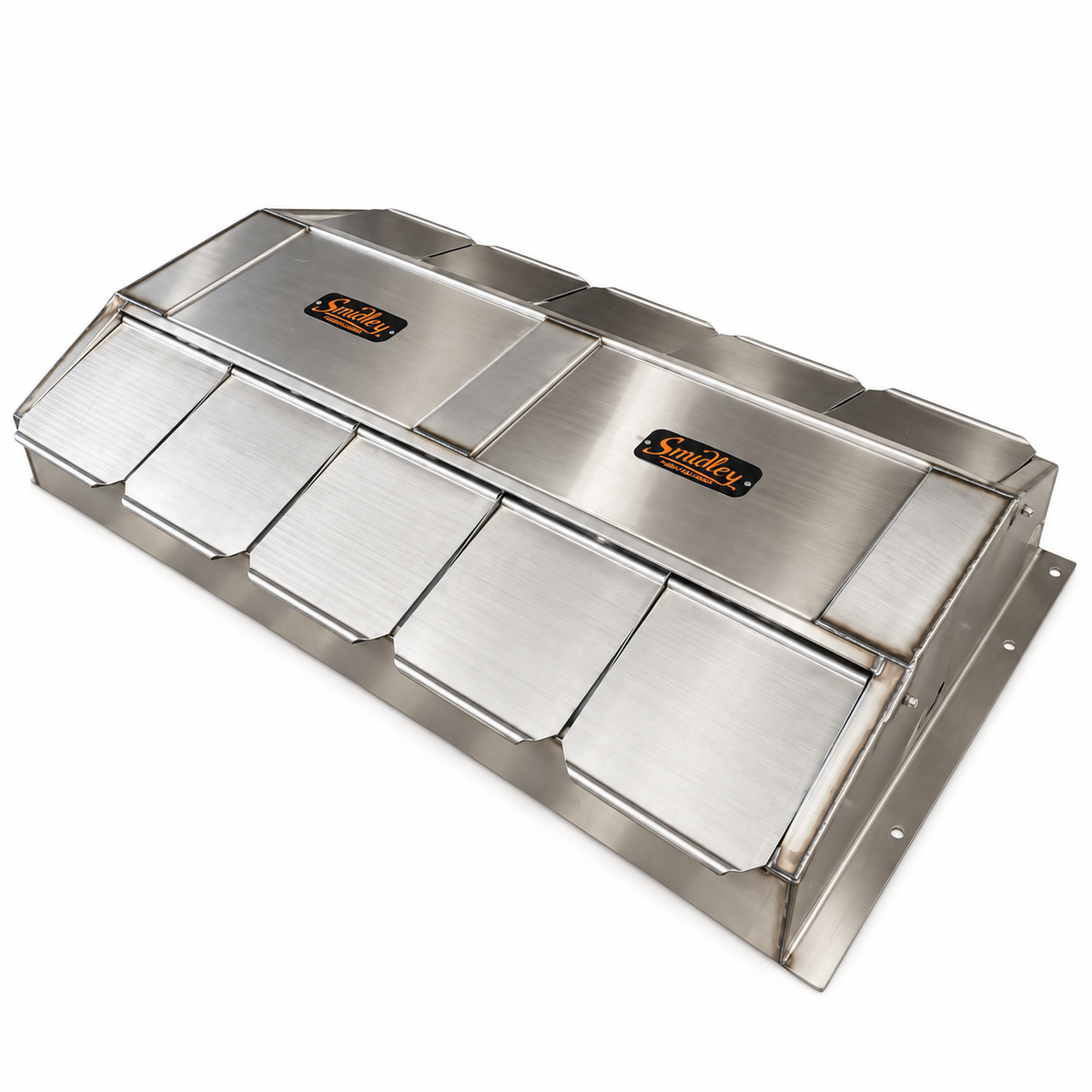

The 91501010 is the largest hog bar Smidley builds, ten drink spaces with five on each side, so one unit and one water line cover a fence run with pens on both sides. At 57 1/4 inches long it waters up to 250 head, which is the point where two smaller bars and two sets of plumbing stop making sense.
Everything that makes the smaller bars last is here at a longer length. The body is 100 percent 304 stainless steel in a heavy 14 gauge, with heavier 12 gauge drink lids, so there is no paint to chip and no galvanizing to wear through at the water line. Thick styrofoam insulation rated at a 2.7 R factor runs the length of the body, and electric heat with a self regulating thermostat comes standard from the factory, so the element tops up the heat the insulation is already holding rather than fighting the cold on its own.
The drink lids are what keep the water clean. Feed and bedding stay out, the pigs push the lid open to drink, and what is underneath stays clear. The top cover lifts off by gravity, so washing a bar this size is still a bucket and a few minutes rather than a job with a wrench.
Ten drink spaces, five per side, 32 inches wide by 10 3/4 inches high by 57 1/4 inches long. Built by Smidley in Britt, Iowa.
-
Smidley Hog Bar and Cattle Fountain Manual
The factory installation instructions, covering the Smidley hog bars and the cattle fountains in one manual.
Ten Drinks. The Longest Bar Smidley Builds.
Five drink spaces per side on a 57 inch body, built to order for up to 250 head off one water line.
Need Parts for your Smidley Hog Bar?
Heating elements, thermostats, floats and valves, drink lids, lid rods and supply lines, all stocked.
-
-
Regular price $31.00Unit price -
Smidley 14537 Float & Valve Complete — Short
Regular price $35.99Unit price -
Smidley W-Shaped Heating Element 245W for 2 drink 10045
Regular price $32.99Unit price -
Smidley Flush Plug – Drain Plug Part 915FP
Regular price $6.25Unit price -
Smidley High Pressure Valve with Hood 100927
Regular price $22.99Unit price -
Smidley D-Shaped Heating Element 245W 10038
Regular price $32.99Unit price -
Regular price $2.00Unit price
Frequently Asked Questions
How many hogs will the 91501010S water?
How many hogs will the 91501010S water?
Smidley allows a maximum of 25 head per drink space, so ten drink spaces handle up to 250 head. Count the drink holes rather than the pen, because that is what sets the number.
How long does it take to get one?
How long does it take to get one?
The ten drink is made to order, so the factory builds it once your order goes in. Plan on extra time before it ships rather than treating it as a stock item.
Does it come heated, or is heat an add on?
Does it come heated, or is heat an add on?
It comes heated. Electric heat and a self regulating thermostat are standard from the factory. The thermostat is what keeps the bill sensible on a bar this long, because the element only draws when the water needs it.
Is one ten drink better than two smaller bars?
Is one ten drink better than two smaller bars?
It depends on your fence line. A single ten drink is one water line, one thermostat and one unit to wash out, where two bars mean a second run of plumbing and a second set of parts to keep. If the pens sit along one straight run, the ten drink is the simpler install.
How does it ship?
How does it ship?
This one goes freight at 156 lb and 57 1/4 inches long, so it needs a freight quote. You can also pick it up in Britt, Iowa if you would rather collect it yourself.
