Smidley 1 Drink Stainless Steel Hog Bar 9150141S
Smidley 1 Drink Stainless Steel Hog Bar 9150141S is backordered and will ship as soon as it is back in stock.
Description
Description

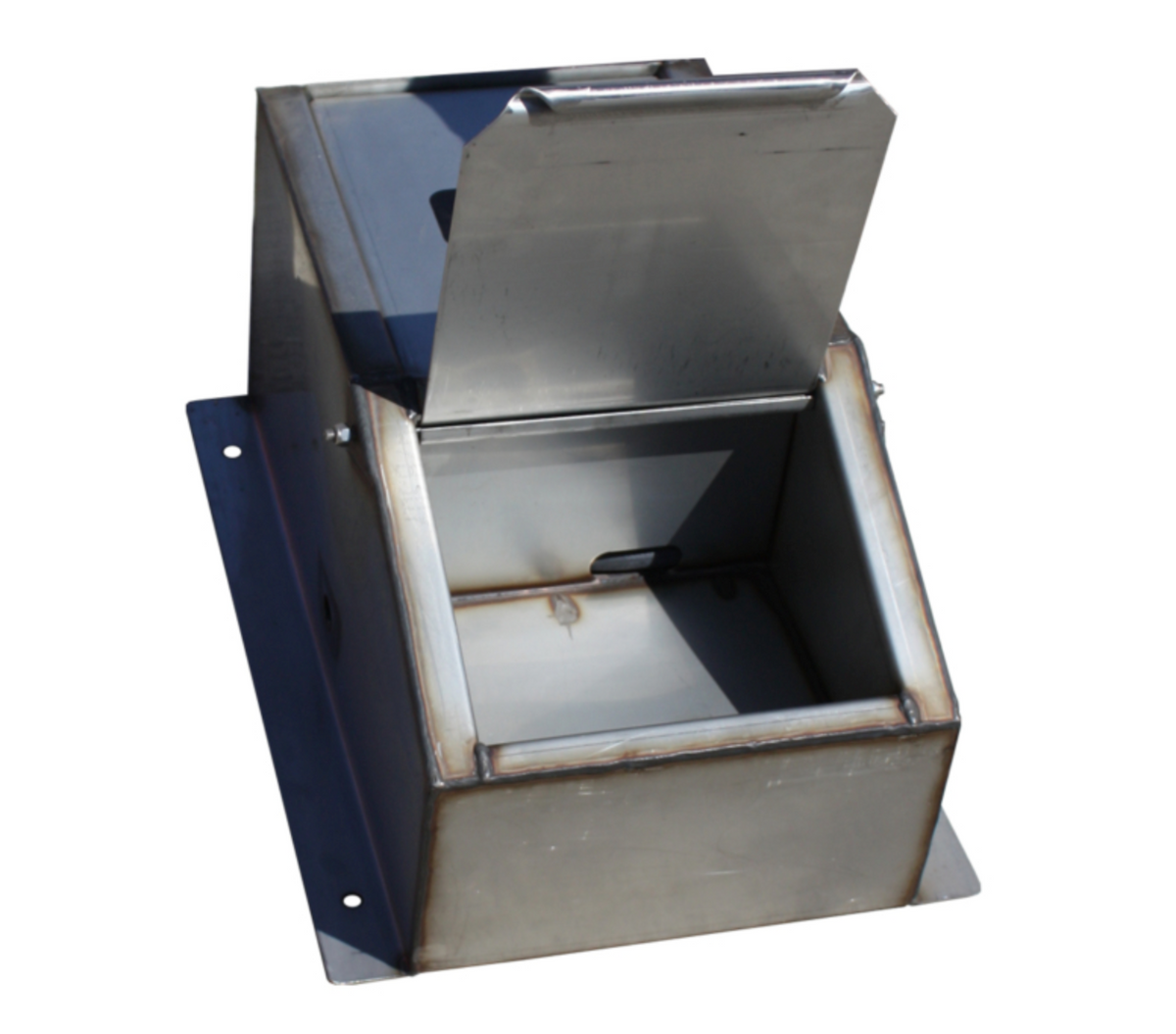

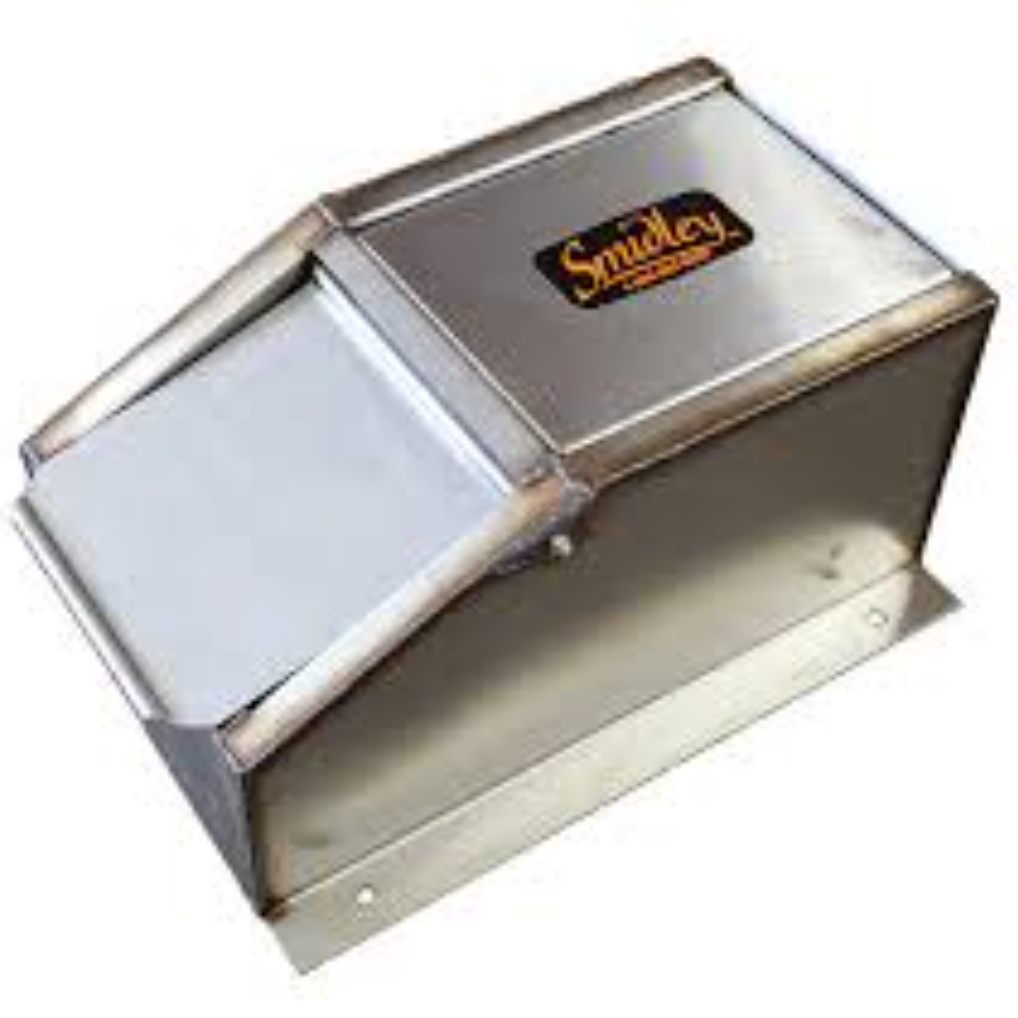

The 9150141 is the smallest hog bar Smidley builds. One drink space on a single sided trough, for a nursery pen, a loadout, or anywhere you need good water in a tight spot.
The body is 100 percent 304 stainless steel in a heavy 14 gauge, with heavier 12 gauge drink lids. There is no paint to chip and no galvanizing to wear through, so nothing at the water line gives out. Thick styrofoam insulation rated at a 2.7 R factor runs through the body, and electric heat with a self regulating thermostat comes standard from the factory, so the element is only topping up the heat the insulation already holds.
The drink lids are what keep a Smidley from going black. Feed and bedding stay out, the pigs push the lid open to drink, and the water underneath stays clean. The top cover lifts off by gravity when it is time to wash it out, so that job is a bucket and a few minutes rather than a job with a wrench.
One drink space, 22 1/2 inches wide by 10 3/4 inches high by 16 5/8 inches long, 41 pounds. Built by Smidley in Britt, Iowa.
-
Smidley Hog Bar and Cattle Fountain Manual
The factory installation instructions, covering the Smidley hog bars and the cattle fountains in one manual.
One Drink. Stainless Through and Through.
The smallest hog bar Smidley builds, one drink space on a single sided trough for a nursery pen, a loadout, or a tight spot.
Product Comparison
The Smidley 9150141S first, then the hog waterers closest to it on drink spaces, head capacity and heat. Compare them side by side.
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | Smidley | Smidley | Brower | Miraco |
| Price | ||||
| Price |
Regular price
$645.99
Unit price
|
Regular price
$765.00
Unit price
|
Regular price
$466.00
Unit price
|
Regular price
$850.00
Unit price
|
| Heat | ||||
| Heat | ||||
| Drink Spaces | ||||
| Drink Spaces | ||||
| Head Capacity | ||||
| Head Capacity | ||||
| Length | ||||
| Length | ||||
| Width | ||||
| Width | ||||
| Overall Height | ||||
| Overall Height | ||||
Need Parts for your Smidley Hog Bar?
Heating elements, thermostats, floats and valves, drink lids, lid rods and supply lines, all stocked.
-
-
Regular price $31.00Unit price -
Smidley 14537 Float & Valve Complete — Short
Regular price $35.99Unit price -
Smidley W-Shaped Heating Element 245W for 2 drink 10045
Regular price $32.99Unit price -
Smidley Flush Plug – Drain Plug Part 915FP
Regular price $6.25Unit price -
Smidley High Pressure Valve with Hood 100927
Regular price $22.99Unit price -
Smidley D-Shaped Heating Element 245W 10038
Regular price $32.99Unit price -
Regular price $2.00Unit price
Frequently Asked Questions
How many hogs will the 9150141S water?
How many hogs will the 9150141S water?
Smidley allows a maximum of 25 head per drink space, so 1 drink space handles up to 25 head. Count the drink holes rather than the pen, because that is what sets the number.
Does it come heated, or is heat an add on?
Does it come heated, or is heat an add on?
It comes heated. Electric heat and a self regulating thermostat are standard from the factory. The thermostat is the part that keeps the bill down, because the element only draws when the water actually needs it rather than running all winter.
Will it rust out at the water line?
Will it rust out at the water line?
It is 100 percent 304 stainless steel, a heavy 14 gauge body with heavier 12 gauge drink lids. There is no paint to chip and no galvanizing to wear through, which is what usually fails first on a steel waterer, right at the water line.
Why does a Smidley not go black?
Why does a Smidley not go black?
The drink lids. Feed and bedding stay out of the trough because the lid only opens when a pig pushes it, so the water underneath stays clear. Thick styrofoam insulation rated at a 2.7 R factor keeps the temperature steady, which helps too.
How does it ship?
How does it ship?
This one ships Speedee with UPS as the backup. Enter your address at checkout and the rate comes up.
