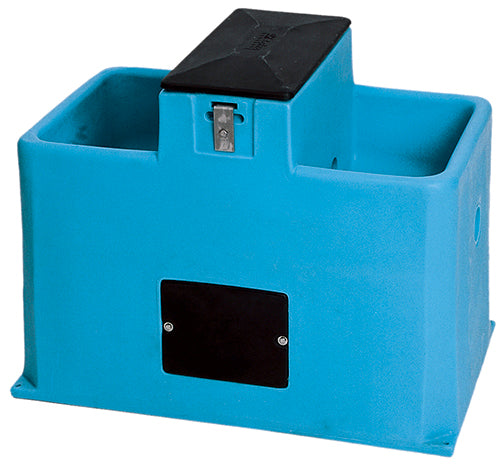

Miraco LilSpring 3100H Heated Open Trough Livestock Waterer
Miraco LilSpring 3100H Heated Open Trough Livestock Waterer is backordered and will ship as soon as it is back in stock.
Features
Features
Specifications
Specifications
Warranty
Warranty
Delivery and Shipping
Delivery and Shipping
This item can be shipped UPS. Some UPS items are considered oversize and will incur additional shipping charges.
If you are looking at a bulk shipment, complete the Freight Quote request for best pricing.
Miraco LilSpring 3100H Heated Open Trough Livestock Waterer
Miraco LilSpring 3100H Heated Open Trough Livestock Waterer is backordered and will ship as soon as it is back in stock.
Description
Description
The Miraco LilSpring 3100H is the heated version of the 3100, and the heat is already in it rather than something you order after the first hard freeze. The 290 watt 120 volt package is the Miraco 160 kit, built in two pieces: the 543 immersion heater at 250 watts sitting in the valve chamber, and the 919-5 thermostat controlled cable heater at 40 watts running around the valve and the water supply line. Both are thermostatically controlled and both plug into an outlet under the unit.
Everything else matches the 3100. Eight gallons across a 36 inch open trough for up to 50 dairy or 100 beef, a 22 inch drinking height set for full grown cattle, and a fully insulated double wall poly casing so the heaters are holding a well insulated body instead of fighting the weather on their own.
Set it in a single pasture or straddle a fence line and water two pens, which also saves running power to a second location.
Parts lists that include this part
The Same Open Trough, Heated for Winter
The 3100H is the 3100 with the heat already in it. Same eight gallon open trough, same 36 inch length, same 22 inch drinking height for up to 50 dairy or 100 beef, plus a 290 watt 120 volt heat package installed at the factory rather than ordered after the first hard freeze.
Product Comparison
Find the waterer that is right for you, your operation and your budget. Compare similar waterers below.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Miraco | Miraco | Miraco | Miraco | Miraco |
| Price | |||||
| Price |
Regular price
$664.98
Unit price
|
Regular price
$549.99
Unit price
|
Regular price
$494.99
Unit price
|
Regular price
$704.00
Unit price
|
Sale price
$492.98
Regular price
$509.99
Unit price
|
| Heat | |||||
| Heat | |||||
| Herd Capacity | |||||
| Herd Capacity | |||||
| Trough Capacity | |||||
| Trough Capacity | |||||
| Length | |||||
| Length | |||||
| Width | |||||
| Width | |||||
| Drink Height | |||||
| Drink Height | |||||
| Overall Height | |||||
| Overall Height | |||||
Need Parts for your Miraco 3000?
Shop the Miraco 3000 parts list for every part that fits your waterer.
Frequently Asked Questions
How many head will the LilSpring 3100H water
How many head will the LilSpring 3100H water
Up to 50 dairy or 100 beef, the same as the unheated 3100. The difference is the heat, not the capacity.
What heat comes with it
What heat comes with it
290 watts at 120 volts, included with the unit. It is the Miraco 160 kit, two pieces: the 543 immersion heater at 250 watts that sits in the valve chamber, and the 919-5 thermostat controlled cable heater at 40 watts that runs around the valve and the water supply line. Both are thermostatically controlled and both plug into an outlet under the unit.
How big is it
How big is it
36 inches long, 22 inches wide and 27.5 inches tall overall, with a 22 inch drinking height, set for full grown cattle.
What is the difference between the 3100 and the 3100H
What is the difference between the 3100 and the 3100H
Same waterer, same eight gallon open trough, same dimensions. The 3100H arrives with the 160 heat package installed, 290 watts at 120 volts. On a 3100 you would buy and fit that kit yourself.
Can I water two pastures off one unit
Can I water two pastures off one unit
Yes. It can straddle a fence line and serve a pen on each side, which saves putting a heated waterer in both pastures and running power twice.
How do I clean it out
How do I clean it out
The trough floor slopes to a removable drain plug, so you pull the plug rather than bailing. The spring load clips open the valve area by hand with no tools.
How do I get at the heater
How do I get at the heater
Through the side access panel. On a heated unit that matters, because the heater is the part most likely to need attention eventually.
What is the warranty
What is the warranty
Miraco warrants its waterers free of defects in materials and workmanship for five years from delivery. Valves, valve parts and other parts carry their own terms, listed in the warranty on this page.
