Miraco | SKU: 2800blue

4% off

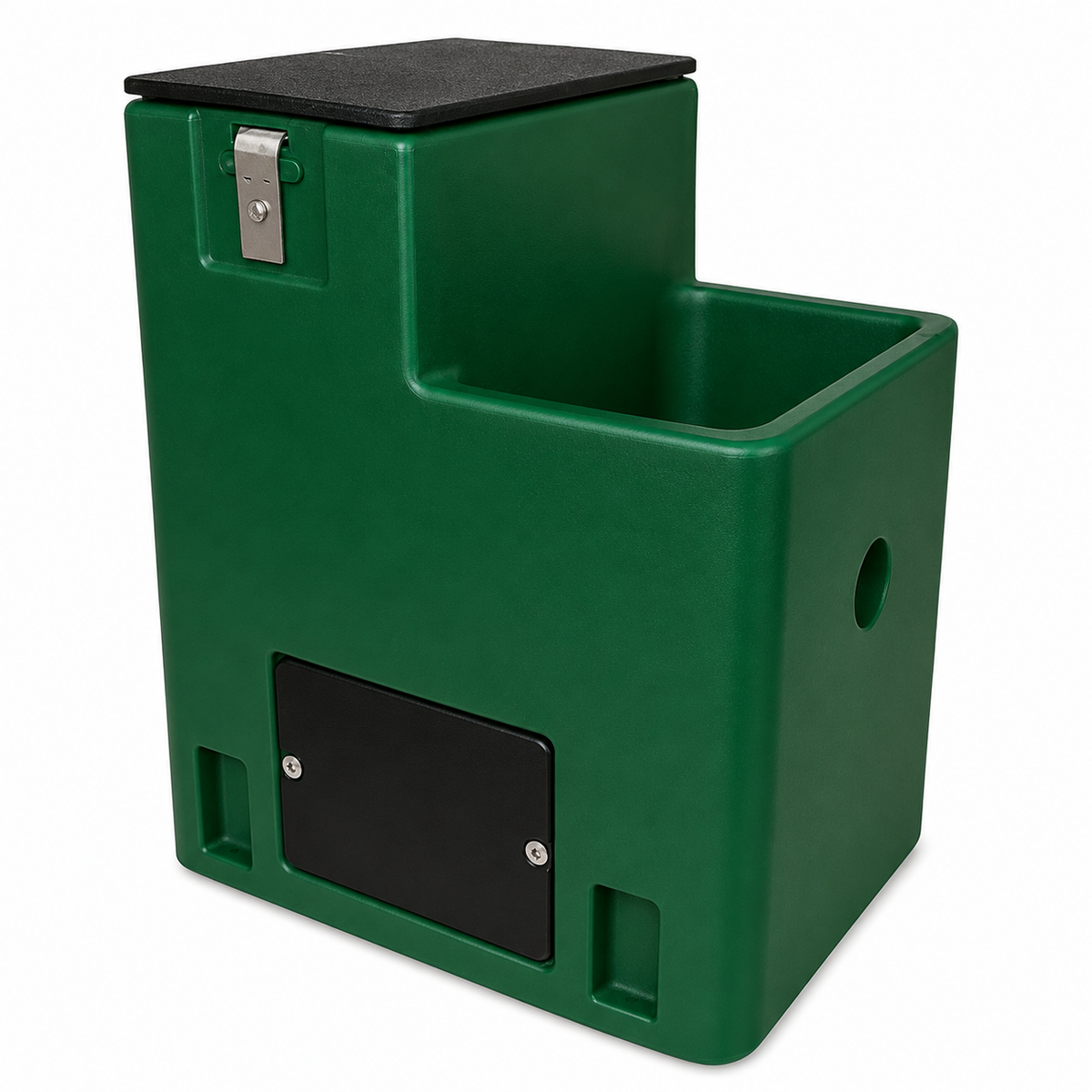

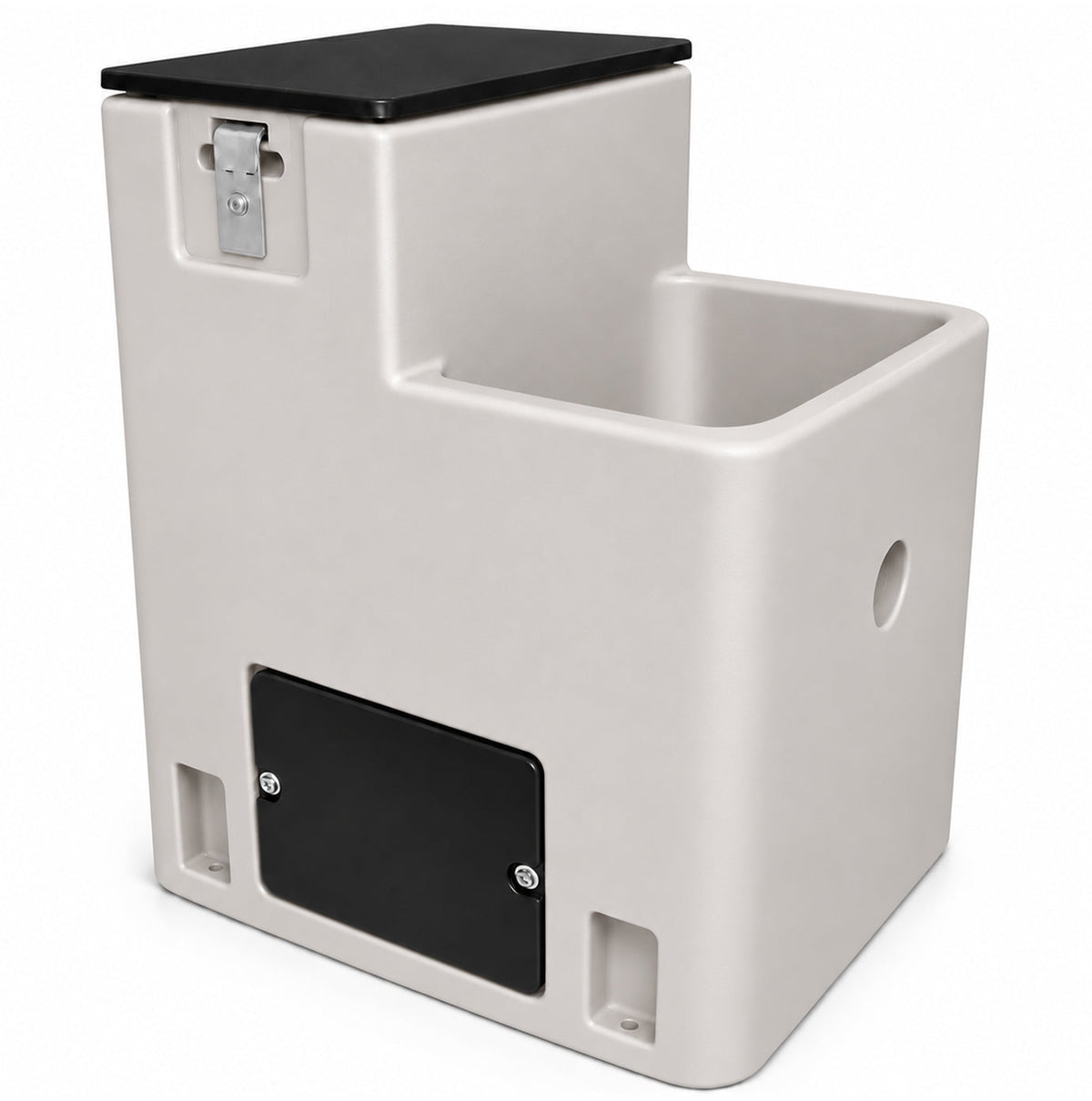

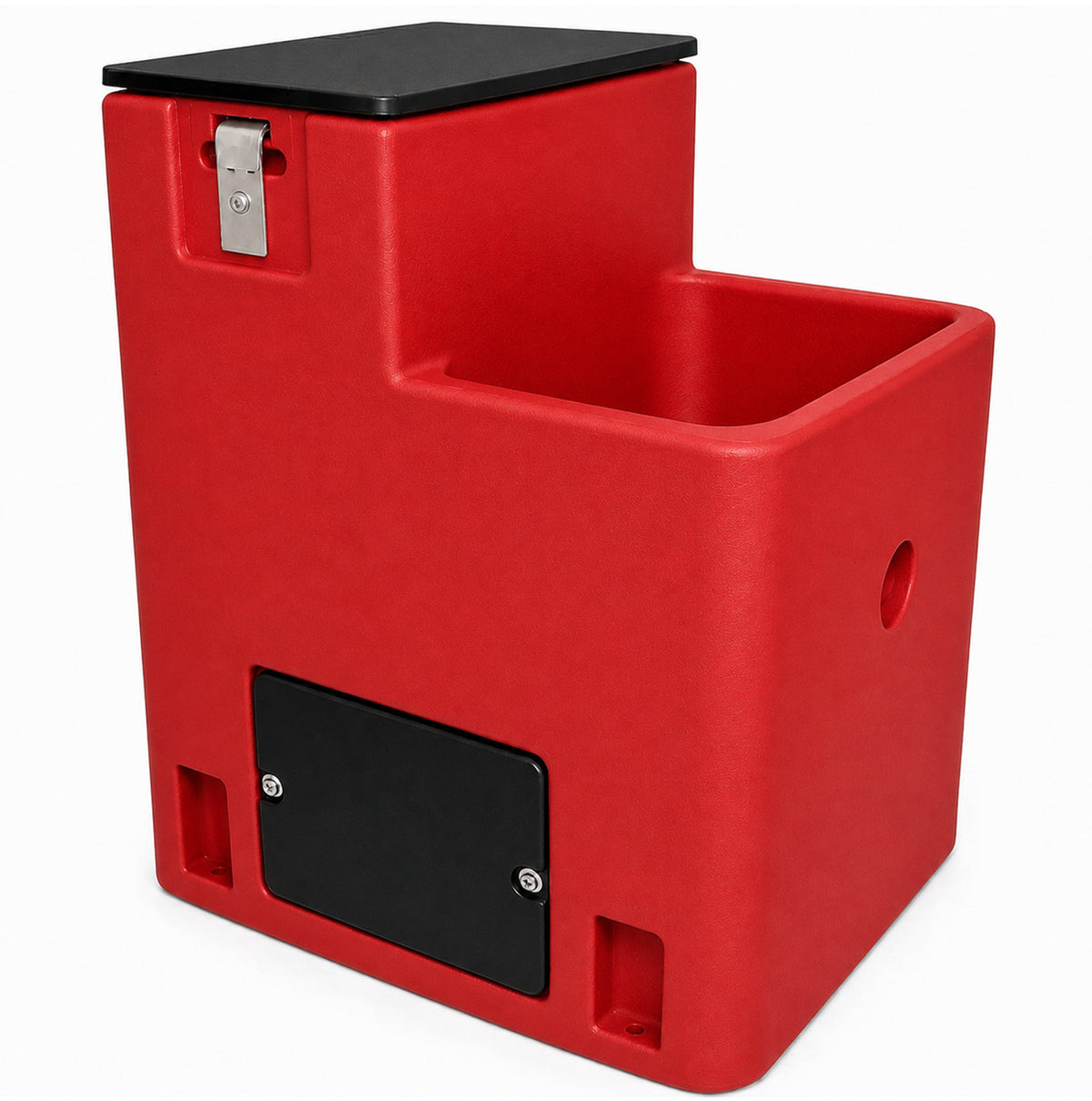

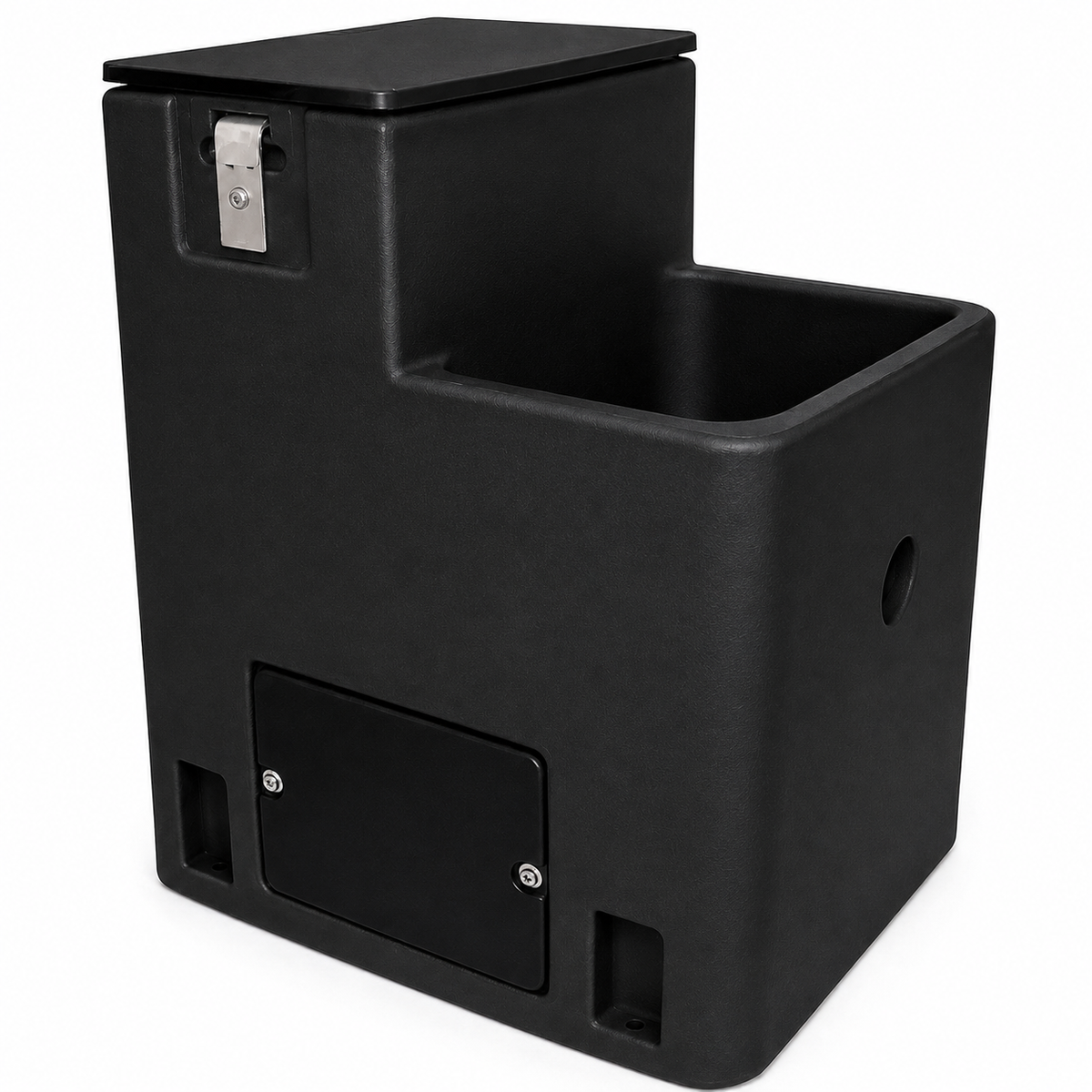

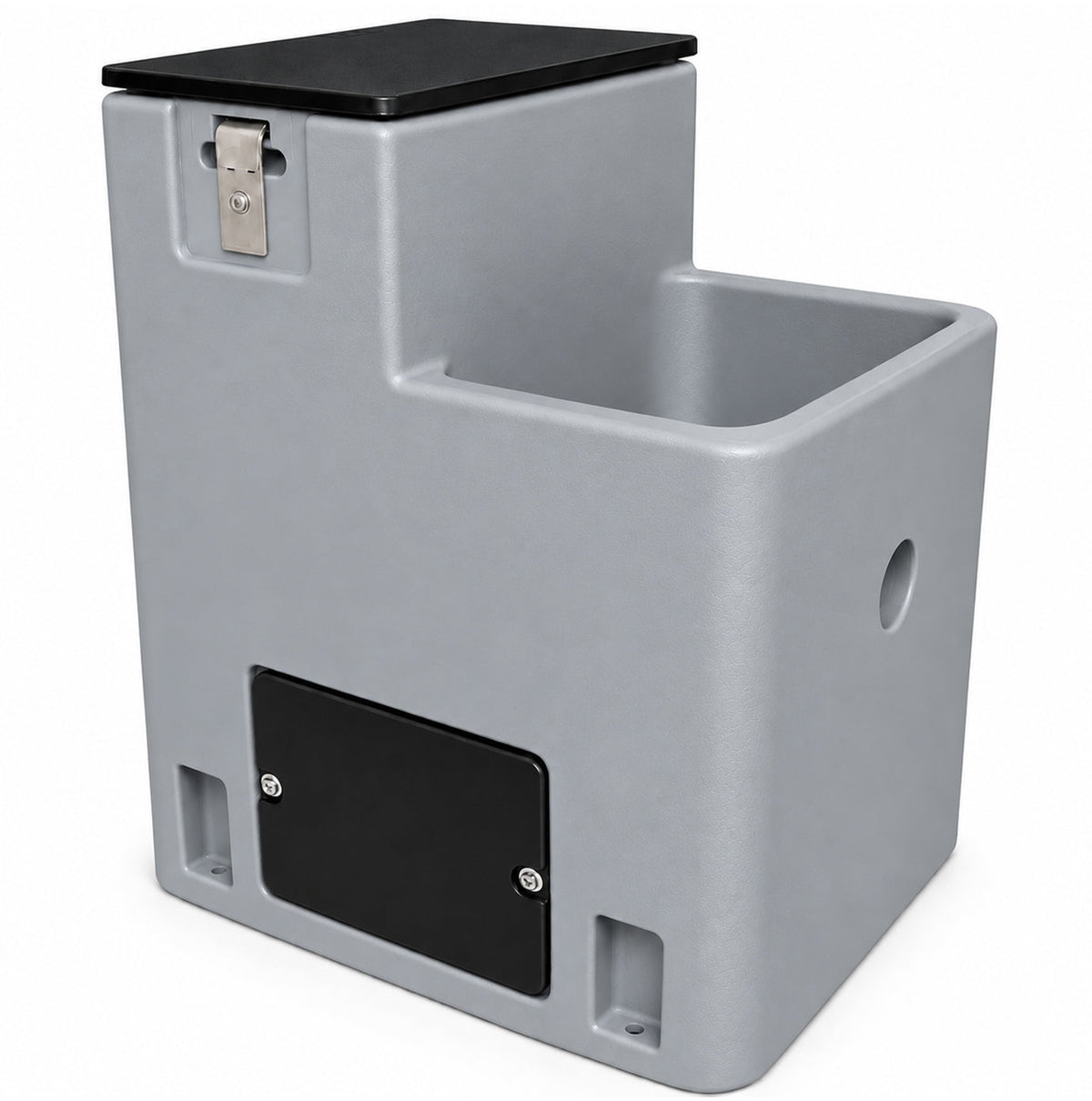

LilSpring 2800 by Miraco Livestock Waterers

Q: How many animals will the LilSpring 2800 water?

Up to 20 head of beef cattle or horses . It holds 4 gallons and refills automatically as animals drink.

Q: How do I clean it?

Lift out the access door, pull the 3 inch rubber drain plug, part 983 , scrub and rinse. The trough empties in seconds to allow debris to wash out. Replace the drain plug once clean to allow the trough to refill.

$374.99 $389.99

Color may vary due to lighting.

Features

Side access panel for easy access to waterline and heater
Domed cover to prevent climbing or standing
Easy to clean trough that is sloped to the removal drain plug.
Heat option available for colder climates
Spring load clips allow for easy entry to valve area and require no tools

Specifications

Overall Height - 27.5 Inches
Drink Height - 19 Inches
Width - 16 Inches
Length - 20 Inches
Trough Capacity - 4 Gallons
Herd Size - 20 Head Beef Cattle or Horses
Heat - This is a warm-weather unit unless the heat package is added.

Warranty

Miraco warrants that its waterers will be free of defects in materials and workmanship for five years from delivery. Miraco valves, valve parts and other parts are warranted to be free of defects in materials and workmanship for one year from delivery.

This warranty does not apply to any Miraco unit or part that has been subjected to misuse, or to a material failure to install, operate or maintain it in accordance with Miraco's written instructions.

See your instruction manual for complete warranty information.

Delivery and Shipping

This item can be shipped UPS. Some UPS items are considered oversize and will incur additional shipping charges.

If you are looking at a bulk shipment, complete the Freight Quote request for best pricing.

Description

The Miraco Lilspring 2800 is ideal for a single pasture or paddock for herds up to 20 head. The unit is fully insulated, and for added winter protection, add the 250 Watt Heater Kit. The low water-waste trough is sloped toward the drain plug for easy cleaning.

The insulated casing of the 2800, horse or cattle waterer, keeps the water cooler in summer and warmer and more energy efficient in winter. The fast refill valve provides a constant water supply to keep your animals happy and hydrated.

Miraco 2800 Instructions

Download
Miraco 2800 Parts Breakdown

Download
Miraco 2800 Foot Print

Download

Small. Insulated. Built to Handle Winter.

The Miraco LilSpring 2800 is a compact single side automatic waterer built for small operations and mixed livestock. Four gallons of insulated, energy free capacity serves up to 20 head of beef cattle or horses, and the 19 inch drinking height keeps bedding out of the trough. Everything opens by hand for cleaning and valve service.

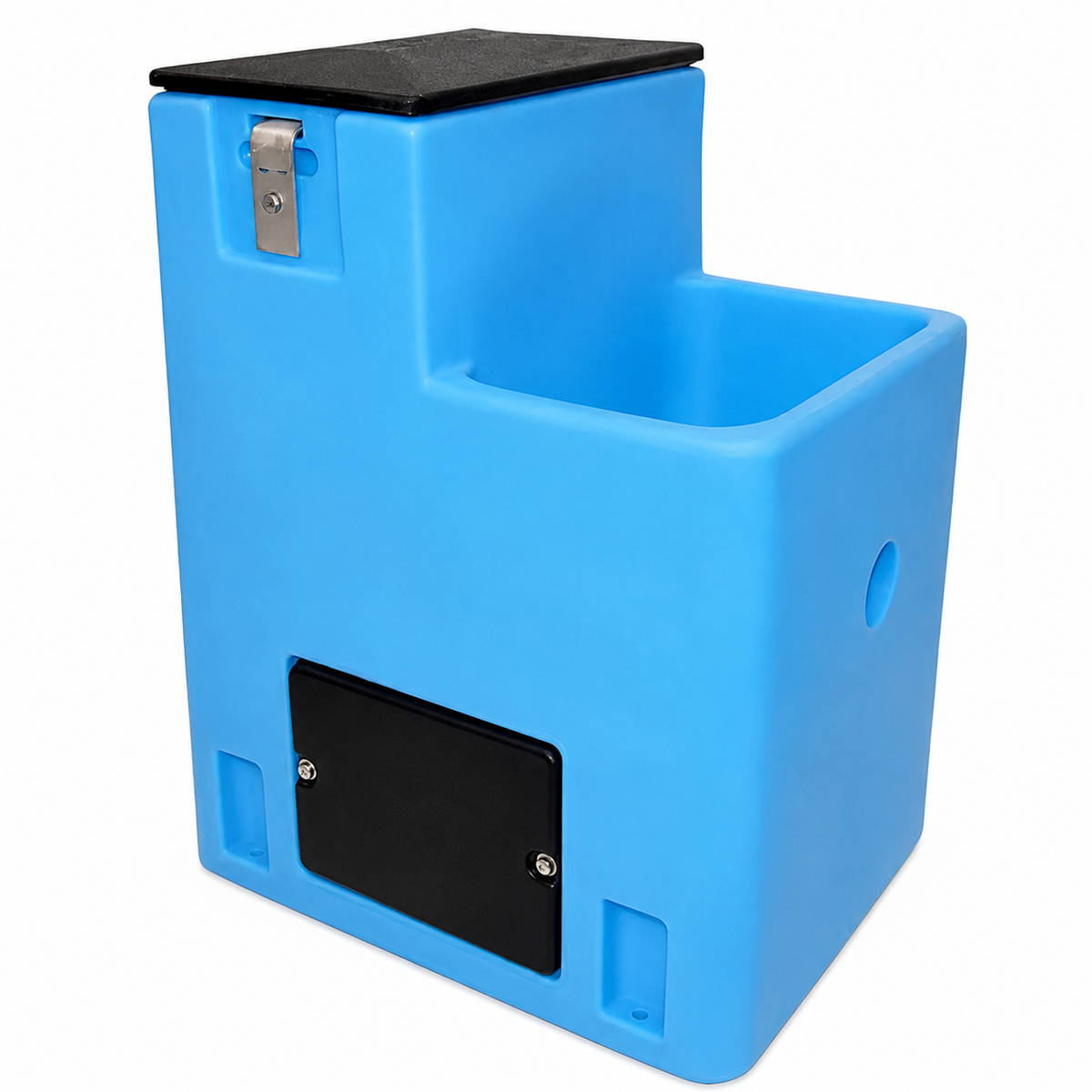

Miraco LilSpring 2800 by Miraco Livestock Waterers - Miraco automatic livestock waterer

Product Comparison

Find the waterer that is right for you, your operation and your budget. Compare similar waterers below.

A table comparing the facets of 5 products

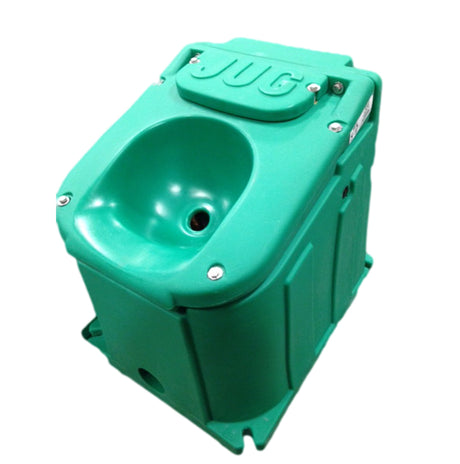

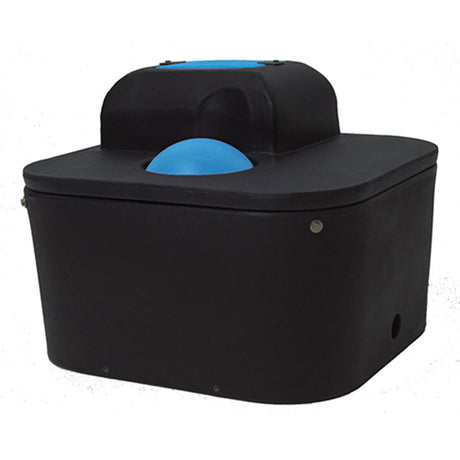

Facet	LilSpring 2800 by Miraco Livestock Waterers View details	LilSpring 2800 by Miraco Livestock Waterers Heated View details	Ritchie WaterMatic 100 18165 View details	JUG Single Hole Model Unheated 101 10101 View details	Mirafount 3330 - Non-heated Waterer View details
By
By	Miraco	Miraco	Ritchie Industries	Bakko Industries	Miraco
Price
Price	Sale price $374.99 Regular price $389.99	Sale price $492.98 Regular price $509.99	Sale price $449.99 Regular price $494.00	Regular price $849.99	Regular price $620.00
Heat
Heat	Optional add on. This unit cannot be used without heat in cold climates.	Included - Immersion Heater and Self-Regulating Heat Cable 290 Watt, 120V	Add Immersion Heater and Self Regulating heat Cable for winter	Unheated	Energy Free, no electricity required. Heated version available as the E-Fount 3330-E
Herd Capacity
Herd Capacity	20 Head Beef Cattle or Horses	20 beef, 20 horses	20 horses, 20 beef, 50 sheep	25 Dairy / 50 Beef / 75 Sheep	50 head beef or 25 head dairy
Trough Capacity
Trough Capacity	4 Gallons	4 gallons	2.8gal/10.6L	7 Gallons	15 Gal / 56.8 L
Length
Length	20 Inches	20 Inches	24.5in/62.23cm	25 Inches	28 in / 71.1 cm
Width
Width	16 Inches	16 Inches	14in/35.56cm	20 Inches	26 in / 66 cm
Drink Height
Drink Height	19 Inches	19 Inches	18in/45.72cm	15 Inches	14 in / 35.6 cm
Overall Height
Overall Height	27.5 Inches	27.5 inches	23.5in/59.69cm	24 Inches	14 in / 35.6 cm

Need Parts for your Miraco 2800?

Shop the Miraco 2800 parts list for every part that fits your waterer.

Shop Parts

Miraco 521 Grey High Pressure Valve 40-80 PSI

(36)

Regular price $20.24

View details
Miraco 521B Blue High Pressure Valve 40-80 PSI

(16)

Regular price $29.09

View details
Miraco 345 bob float 4" x 4"

(16)

Regular price $12.36

View details
Miraco 984 Drain Plug - 3" Diameter

(17)

Regular price $9.09

View details
Miraco 680 Rubber Valve Seat - Grey Valve

(3)

Regular price $0.64

View details
Miraco Plunger 513

(6)

Regular price $3.75

View details
Miraco Plunger Seat 512 - Blue Valve Seat

(6)

Regular price $0.44

View details
Miraco Immersion Heater 543 - 250 Watt, 120Volt

(27)

Regular price $87.99

View details

Frequently Asked Questions

How many animals will the LilSpring 2800 water?

Up to 20 head of beef cattle or horses. It holds 4 gallons and refills automatically as animals drink.

Is the 2800 heated?

The standard unit is insulated and energy free. The heated version adds a 290 watt immersion heater and self regulating heat cable on 120 volts, and in hard climates you should plan on it.

Where does the 2800 work best?

Stalls, small pens, tight paddocks and anywhere a single side waterer can sit against a wall or a fence.

How do I clean it?

Lift out the access door, pull the 3 inch rubber drain plug, part 983, scrub and rinse. The trough empties in seconds to allow debris to wash out. Replace the drain plug once clean to allow the trough to refill.

What is the difference between the 2800 and the 2900?

The 2800 drinks from one side and holds 4 gallons for up to 20 head. The 2900 drinks from two sides, holds 6 gallons and waters up to 60 head from a fence line.
