Classic Equine by Ritchie | SKU: 18730

5% off

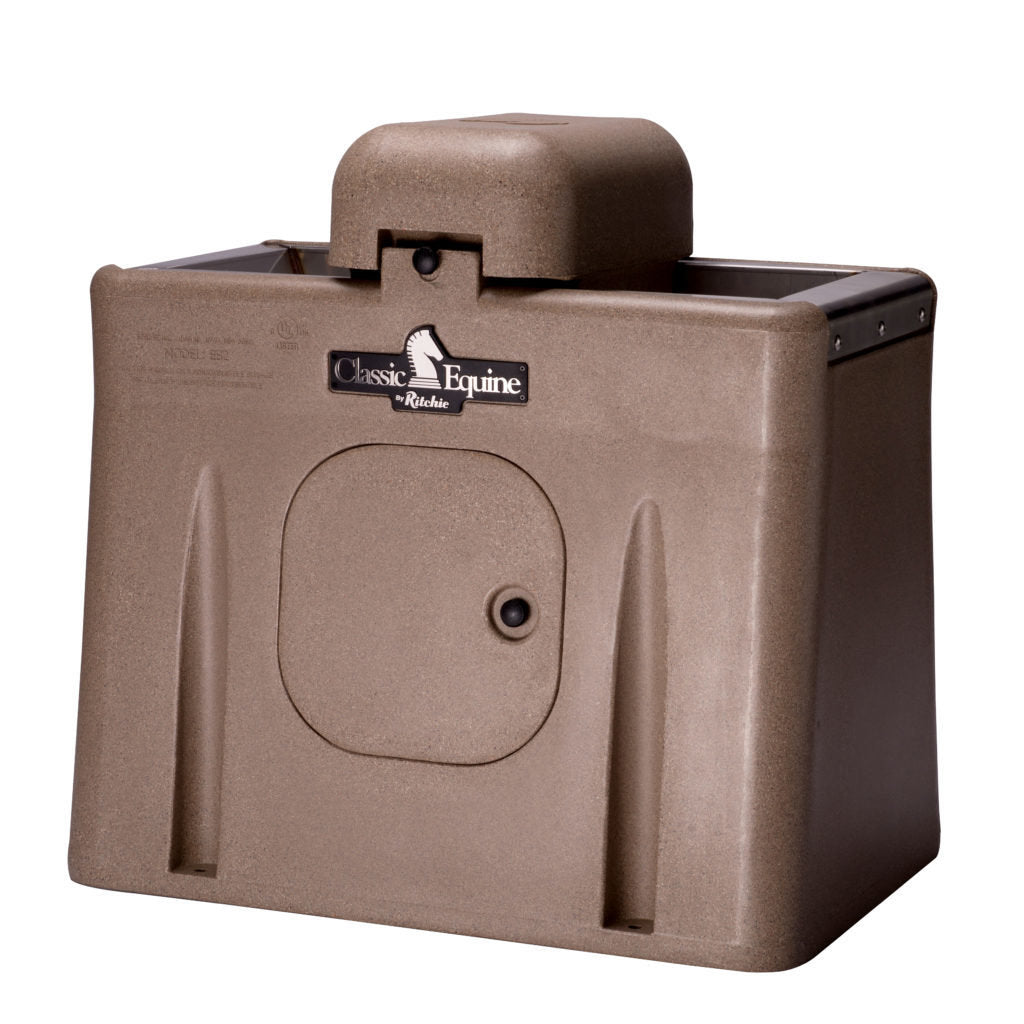

Classic Equine by Ritchie UltraFount #18730

$1,329.99 $1,402.00

Common Applications

Horse barns and aisleways
Boarding and training facilities
Year round use in cold climates
Operations of up to 40 head
Barns that need a stainless steel trough

Features

Ideal for all weather climates
Supplies fresh, clean and temperate water
Easy to drain and clean
Waters up to 40 head
Fully Insulated and features overall heat coverage
Quick refill function - no waiting for water
Hinged cover for easy access to float and valve
10-year warranty

Specifications

Part No. 18730
Length 30.5in/77.5cm
Width 20in/51cm
Overall Height 29in/74cm
Drinking Height 24in/61cm
Capacity 3.1gal/12L
Total Heat 298W (2.5A@120V)
Herd Capacity 40 horses
Shipping Weight 65lb/29.4kg

Warranty

Ritchie warrants its waterers against manufacturing defect for ten years, with coverage depending on how the unit is built.

Poly units: the base, top and ball closures carry a ten year limited warranty, covered at 100 percent for the first five years, then declining 20 percent per year through the remaining five years.

Stainless steel units: the stainless trough and stainless valve chamber frame carry a ten year limited warranty, plus ten years of corrosion coverage, at 100 percent for the entire ten year period.

Parts, such as floats, valves and heating elements, are warranted for one year from the date of purchase, at 100 percent against manufacturing defect.

See your instruction manual or ritchiefount.com for complete warranty information.

Delivery and Shipping

This item can be shipped UPS. Some UPS items are considered oversize and will incur additional shipping charges.

If you are looking at a bulk shipment, complete the Freight Quote request for best pricing.

Description

The Classic Equine by Ritchie UltraFount 2 is the one you buy when the barn has to keep watering through January. It pairs a stainless steel trough with an insulated polyethylene casing and thermostatically controlled heat, and it waters up to 40 horses.

The heat is not an afterthought. Two heaters mount to the underside of the trough and a 48 watt cable heater protects the supply line, 298W total (2.5A@120V), so the trough stays drinkable rather than skimming over on a cold night. Because the disc thermostat only calls for heat as the water drops toward 45 degrees, the unit is not running up the meter in October.

The stainless steel trough is the other reason barns choose the UltraFount over the AutoFount. Stainless does not scratch and hold algae the way poly does, it rinses clean, and it stands up to a horse that leans on things. The access panel opens to the valve, float and heating parts, so a repair does not mean pulling the unit off the wall, and the drain plug and drain pipe empty the trough for regular cleaning.

The polyethylene carries a 10 year warranty.

Waters up to 40 horses at a 24 inch drinking height, 3.1 gallon capacity, 30.5 inches long by 20 inches wide by 29 inches tall.

UltraFount Instruction Manual

Download
UltraFount 2 Footprint

Download
UltraFount 2 Parts Breakdown

Download

Stainless Steel, Heated, Built for Winter

The Classic Equine by Ritchie UltraFount 2 pairs a stainless steel trough with an insulated poly casing and thermostatically controlled heat, so up to 40 horses have drinkable water through the coldest months without a bucket in sight.

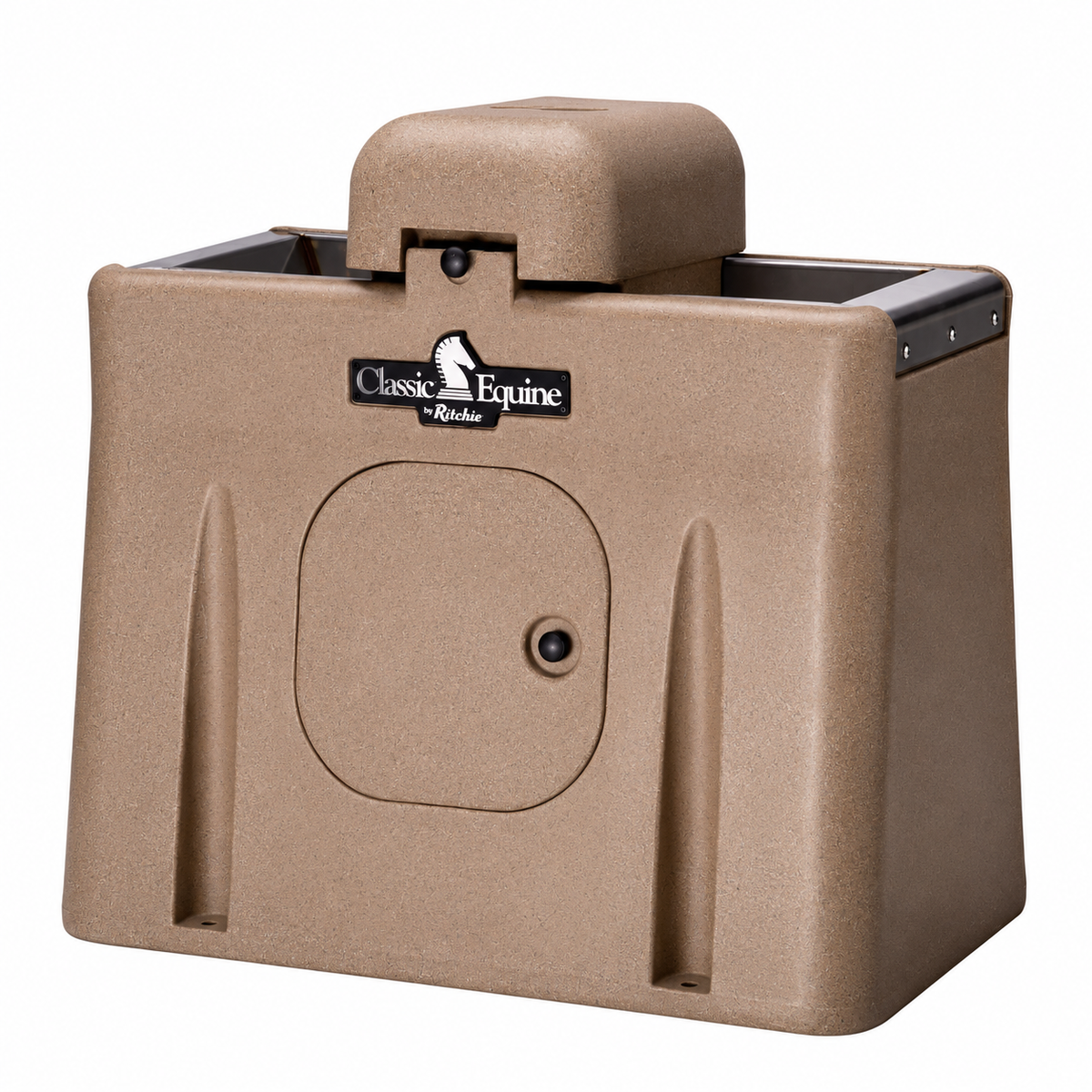

Classic Equine by Ritchie UltraFount 2 18730 two hole horse waterer with stainless steel troughs

Product Comparison

Find the waterer that is right for you, your operation and your budget. Compare similar waterers below.

A table comparing the facets of 5 products

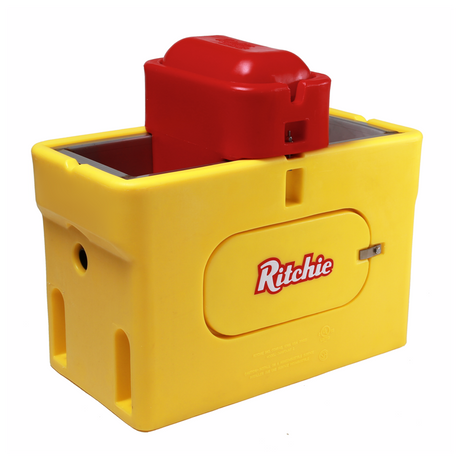

Facet	Classic Equine by Ritchie UltraFount #18730 View details	Ritchie Omni 2 Heated Automatic Waterer 16619 View details	Franklin Heated F5 Automatic Waterer View details	Franklin Heated PolyRAE Automatic Waterer #20000 View details	Ritchie Omni 3 Heated Waterer 18720 View details
By
By	Classic Equine by Ritchie	Ritchie Industries	Franklin	Franklin	Ritchie Industries
Price
Price	Sale price $1,329.99 Regular price $1,402.00	Sale price $949.00 Regular price $982.00	Regular price $1,212.30	Regular price $1,129.99	Sale price $1,289.00 Regular price $1,339.00
Heat
Heat	Heated, 298W (2.5A@120V)	298W (2.5A @ 120V)	Thermostatically controlled, included	Thermostatically controlled, three heaters included	548W (4.6A @ 120V)
Herd Capacity
Herd Capacity	40 horses	40 horses, 40 beef, 20 dairy	25 Head Dairy / 50 Head Beef or Horses	20 Head Dairy / 40 Head Beef or Horses	100 horses, 100 beef, 50 dairy
Trough Capacity
Trough Capacity	3.1gal/11.73L	2.2gal/8.33L			10gal/37.85L
Length
Length	30.5in/77.47cm	28.3in/71.88cm			31.5in/80.01cm
Width
Width	20in/50.8cm	14.5in/36.83cm			22in/55.88cm
Drink Height
Drink Height	24in/60.96cm	18in/45.72cm			26in/66.04cm
Overall Height
Overall Height	29in/73.66cm	25in/63.5cm			33in/83.82cm

Need parts for your UltraFount 2?

Shop the Classic Equine UltraFount 2 parts list for everything that fits your waterer.

Shop Parts

Ritchie 1/2" Red Valve #12575

(38)

Regular price $15.10

View details
14% off

Ritchie Valve Bracket 11515 with screw package

(18)

Sale price $12.99 Regular price $15.10

View details
Ritchie Cable Heater 13830

(20)

Regular price $52.90

View details
Ritchie Omni Drain Plug PKG (2 per package) #18628

(12)

Regular price $9.70

View details
7% off

Ritchie Float with Short Arm #13613

(15)

Sale price $19.99 Regular price $21.60

View details
7% off

Ritchie Disc Thermostat Part #11885

(16)

Sale price $50.99 Regular price $55.05

View details
7% off

Ritchie Heater 125W 120V 14150

(20)

Sale price $45.99 Regular price $49.65

View details
Ritchie 1/2" Valve Rubber Package #15151

(10)

Regular price $11.85

View details

Frequently Asked Questions

Is the UltraFount 2 heated?

Yes. It uses a 125 watt heater with a disc thermostat and a 48 watt cable heater, so it is built for year round use in cold climates.

How many horses will it water?

Up to 40 head. The UltraFount 1, part 18780, is the smaller version and waters up to 20.

What are the dimensions?

30.5 inches long by 20 inches wide by 29 inches tall, with a 24 inch drinking height and a 3.1 gallon capacity.

What makes the UltraFount different from the AutoFount?

The UltraFount has a stainless steel trough and comes heated. The AutoFount is poly and heat is optional, which is why it costs less.

Where do I find replacement parts?

The parts list for this model is further down this page, and the parts breakdown is in the document center. Match the item number on the breakdown to the part you need.

Shop Classic Equine Waterers

Stall founts for the barn, and the EZFount, AutoFount and UltraFount for paddocks and fence lines. Browse the line by where the unit is going, in heated and unheated models.

Shop Classic Equine Waterers
Shop Classic Equine Parts

Valves and floats, heaters, drain plugs and accessories, sorted by category so you can go straight to the part you need. All genuine Ritchie parts for a precise fit.

Shop Parts
Shop by Classic Equine Parts Lists

Not sure which part you need? Start with your model, the EZFount, StallFount, AutoFount or UltraFount, and work from the parts breakdown for that unit.

Shop by Classic Equine Parts Lists

5 stars: 1 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Use PeteCo! They are connected.

Ruth was amazing! She got my waterers in two days! Such a relief after being jerked around by others and the manufacturer for weeks. They arrived in perfect condition. The installation was easy. Only one has a leak at the valve which I know how to fix (when its not 20 degrees outside and I don't mind my hands getting wet.) You will definitely want a better tool than the allen wrench to install the lid hinge bolts. I did the first one with their tool and it took 20 minutes. The remaining units I used a ratchet screw driver with a star bit and it took less than a minute. They survived easily their first night unprotected at 22 degrees. Nearby troughs all froze. The only con I see is the standpipe install is dependent on getting the o-ring exactly right, otherwise it leaks. It took me multiple tries on each unit to get it watertight.

Thank you so much for the wonderful feedback. We're so thankful you called and that we were able to help. We have passed your comments about installation on to Ritchie as well so they can hopefully work on improvements. Thank you again!
