Classic Equine by Ritchie | SKU: 18740

4% off

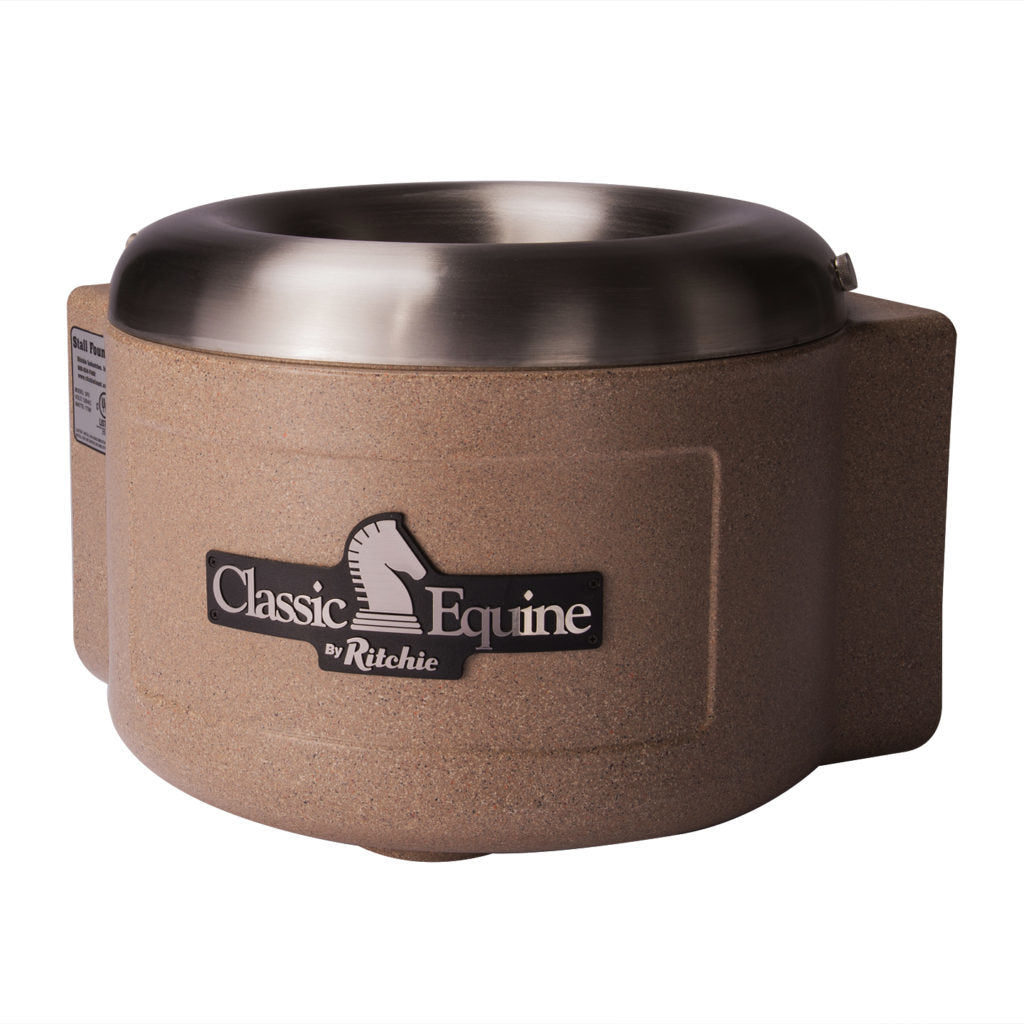

Classic Equine by Ritchie StallFount - Heated #18740

$1,050.00 $1,091.00

Common Applications

Individual horse stalls
Corner mount installations
Boarding facilities
Year round use in cold climates
Barns replacing buckets

Features

Durable, fully insulated casing designed for rugged animal abuse helps to keep water cooler in the summer
Space saving corner mount, stall option featuring a stainless steel cover to prevent chewing
Removable, stainless steel cover allows full access to trough and drain plug for easy cleaning
Ideal for individual stalls or pens
Energy efficient heat protection for winter protection
Run waterline to unit from above, below or behind unit
StallFount comes complete and ready to attach to your main waterline
10-year warranty

Specifications

Part No. 18740
Length 16.5in/41.9cm
Width 16.5in/41.9cm
Overall Height 12in/30.5cm
Capacity 1gal/3.79L
Herd Capacity single stall
Shipping Weight 22lb/10kg

Warranty

Ritchie warrants its waterers against manufacturing defect for ten years, with coverage depending on how the unit is built.

Poly units: the base, top and ball closures carry a ten year limited warranty, covered at 100 percent for the first five years, then declining 20 percent per year through the remaining five years.

Stainless steel units: the stainless trough and stainless valve chamber frame carry a ten year limited warranty, plus ten years of corrosion coverage, at 100 percent for the entire ten year period.

Parts, such as floats, valves and heating elements, are warranted for one year from the date of purchase, at 100 percent against manufacturing defect.

See your instruction manual or ritchiefount.com for complete warranty information.

Delivery and Shipping

This item can be shipped UPS. Some UPS items are considered oversize and will incur additional shipping charges.

If you are looking at a bulk shipment, complete the Freight Quote request for best pricing.

Description

The Classic Equine by Ritchie StallFount puts clean water in the corner of the stall and keeps it there, heated, all winter. It is the heated model, part 18740, and it is what barns buy when they are tired of carrying buckets twice a day.

The corner mount is the point. It tucks into the angle of the stall where a horse is less likely to catch a hip on it, and it does not eat a run of wall you wanted for a feeder. The removable stainless steel cover sits over the trough to stop chewing, and it lifts straight off when you want full access for cleaning.

Heat is built in. A 125 watt heater runs under a disc thermostat and a 48 watt cable heater protects the line, so a horse in an unheated barn still has drinkable water in February. The fully insulated casing stands up to rugged use and helps keep water cooler through summer.

The 1 1/2 inch adjustable drain plug empties the trough for cleaning without taking the unit off the wall. A shroud covers the plumbing underneath if you want a finished look, in 20 inch and 30 inch, both sold separately.

Serves one horse. 1 gallon capacity, 16.5 inches square by 12 inches tall, with an adjustable drinking height. The polyethylene carries a 10 year warranty.

StallFount Heated Instruction Manual

Download
StallFount Heated Footprint

Download
StallFount Heated Parts Breakdown

Download

Fresh Water, Right in the Stall, Year Round

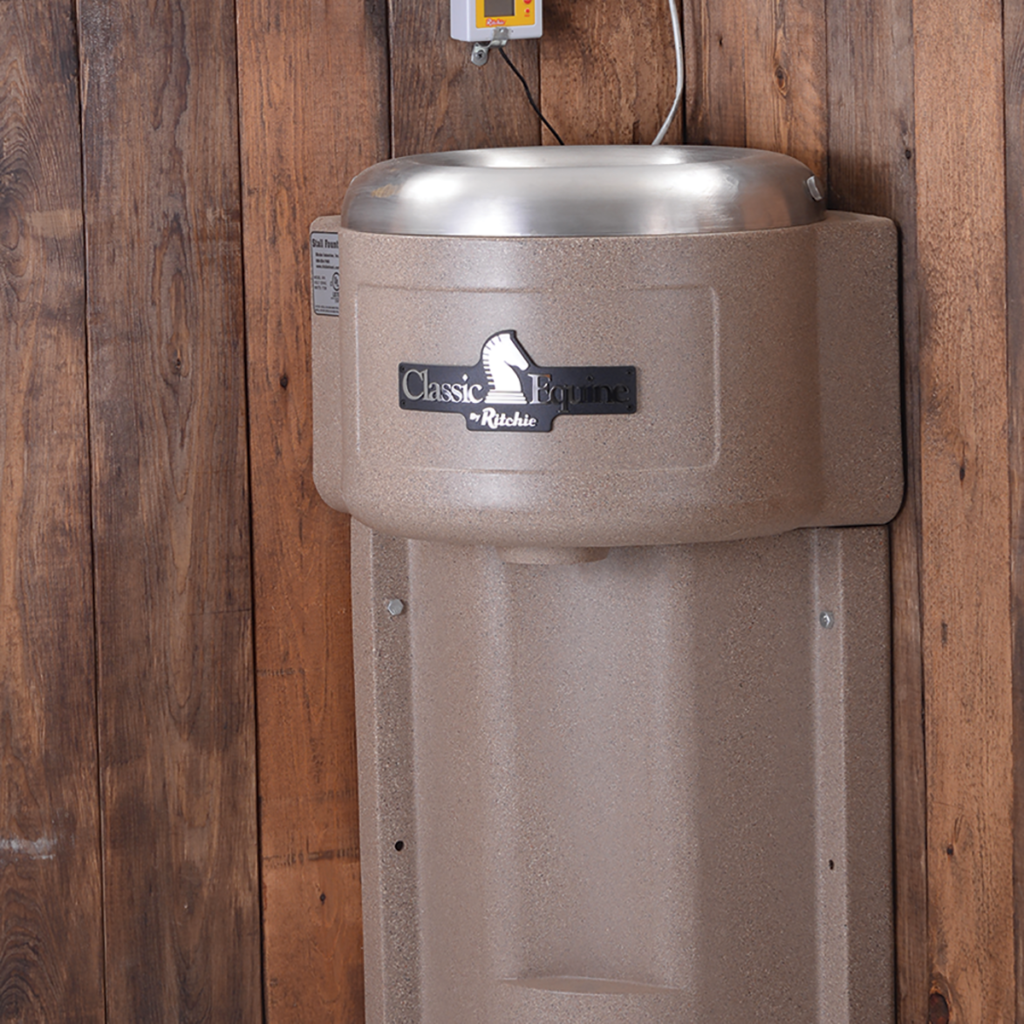

The Classic Equine by Ritchie StallFount mounts in the corner of the stall and keeps clean water in front of one horse all day. The insulated casing and stainless cover stand up to chewing, and the thermostatically controlled heat carries it through winter.

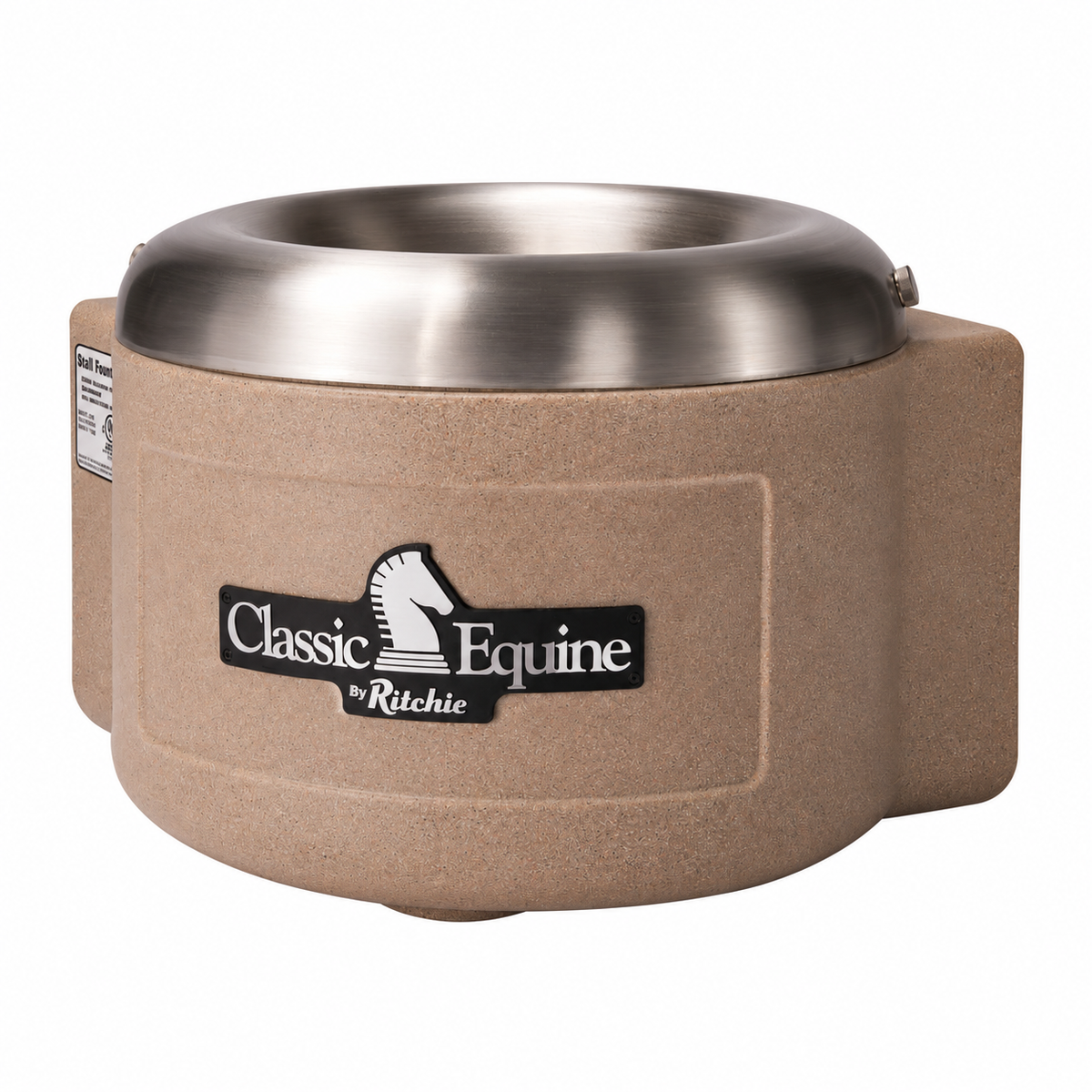

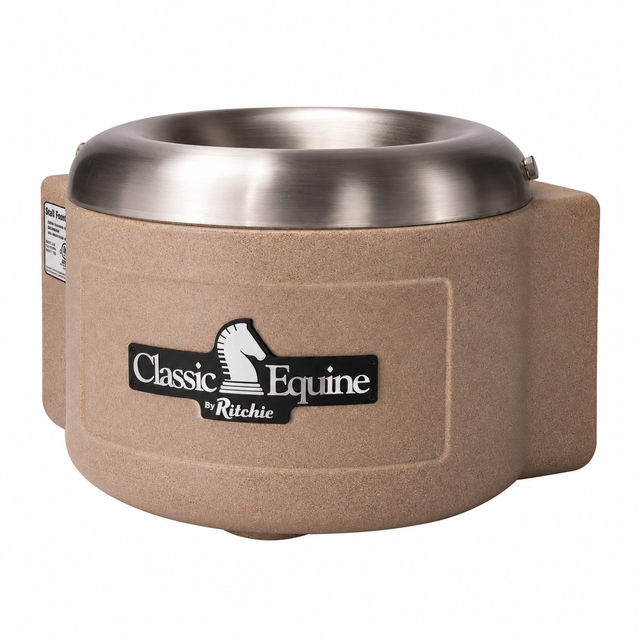

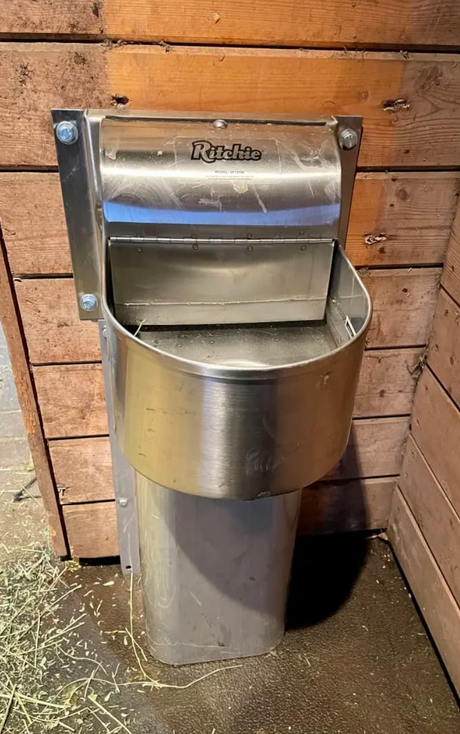

Classic Equine by Ritchie heated StallFount 18740 stall waterer with stainless steel bowl

Product Comparison

Find the waterer that is right for you, your operation and your budget. Compare similar waterers below.

A table comparing the facets of 5 products

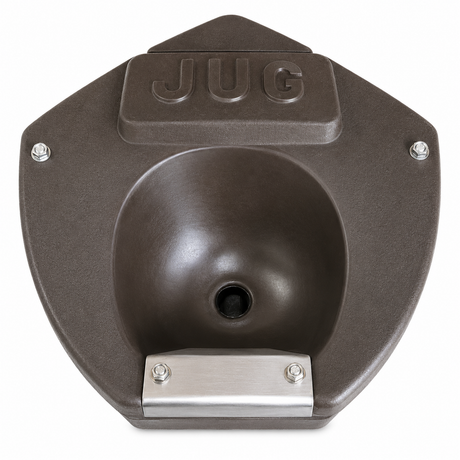

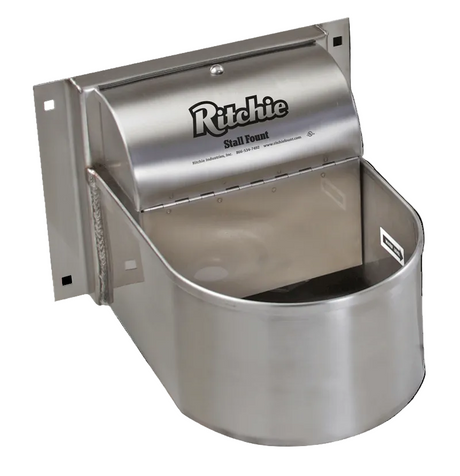

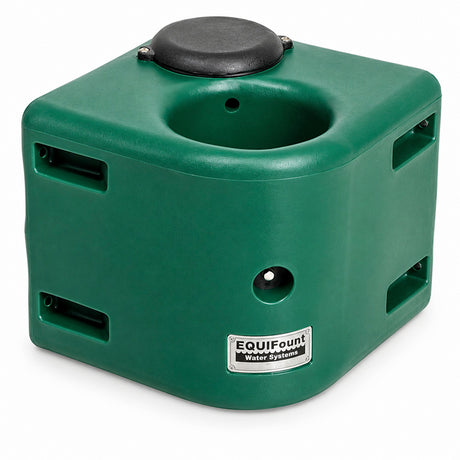

Facet	Classic Equine by Ritchie StallFount - Heated #18740 View details	Classic Equine by Ritchie StallFount - Unheated #18748 View details	Ritchie Stall Fount Non-heated #16871 View details	JUG 303 Stall Fount Corner Mount Energy Free #13303 View details	Miraco Corner Mount EQUIFount - Single Stall Waterer View details
By
By	Classic Equine by Ritchie	Classic Equine by Ritchie	Ritchie Industries	Bakko Industries	Miraco
Price
Price	Sale price $1,050.00 Regular price $1,091.00	Sale price $859.99 Regular price $910.00	Sale price $589.99 Regular price $609.00	Regular price $435.00	Regular price $250.00
Heat
Heat	Heated	Unheated	Unheated	Unheated - Ideal for warmer climates or heated barns	Optional add on. Add the 22 Watt Silicone Heater Kit for winter.
Herd Capacity
Herd Capacity	Single Horse	Single Horse	Single Horse	Single Stall	Single Stall
Trough Capacity
Trough Capacity	1gal/3.79L	1gal/3.79L	1.9gal/7.19L	2 Gallons	1 gallon
Length
Length	16.5in/41.91cm	16.5in/41.91cm	14in/35.56cm	21.5 In	16 Inches
Width
Width	16.5in/41.91cm	16.5in/41.91cm	13in/33.02cm	20.25 in	16 Inches
Drink Height
Drink Height	Adjustable	Adjustable	Adjustable	Adjustable	Adjustable
Overall Height
Overall Height	12in/30.48cm	12in/30.48cm	14.5in/36.83cm	15 1/2 in.	14 Inches

Need parts for your StallFount?

Shop the Classic Equine StallFount Heated parts list for everything that fits your waterer.

Shop Parts

Ritchie Cable Heater 13830

(20)

Regular price $52.90

View details

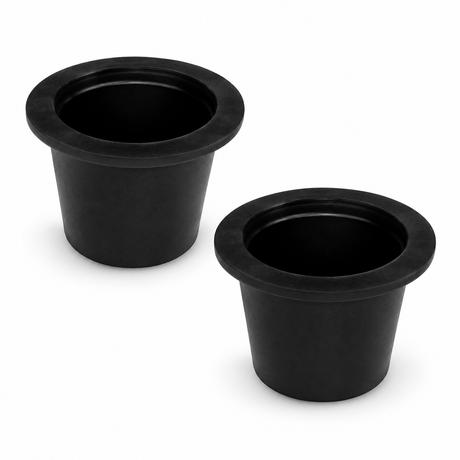

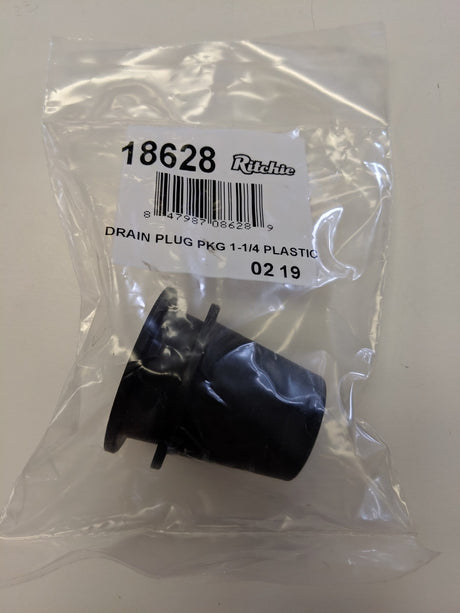

Ritchie Omni Drain Plug PKG (2 per package) #18628

(12)

Regular price $9.70

View details
7% off

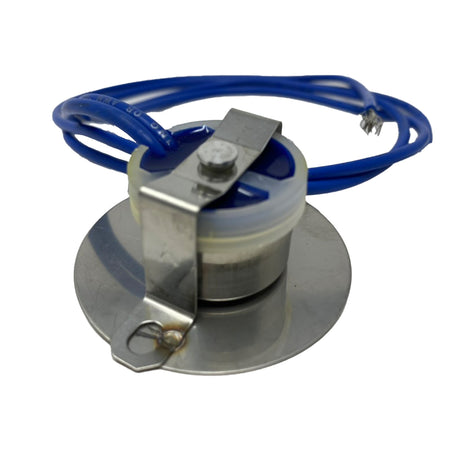

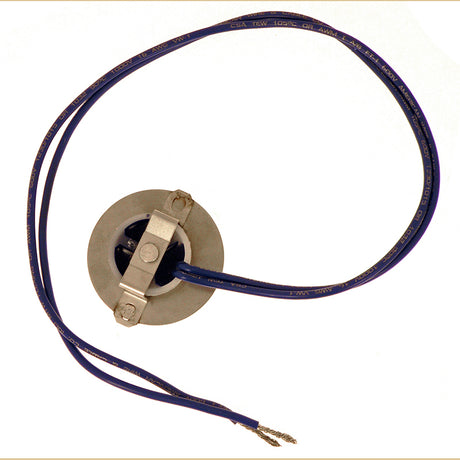

Ritchie Disc Thermostat Part #11885

(16)

Sale price $50.99 Regular price $55.05

View details
7% off

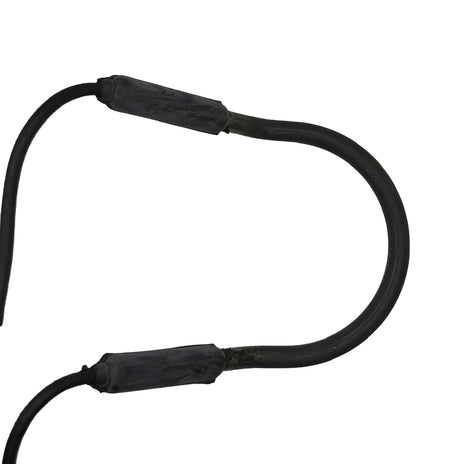

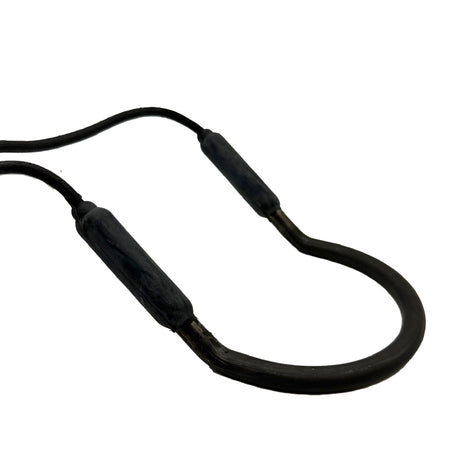

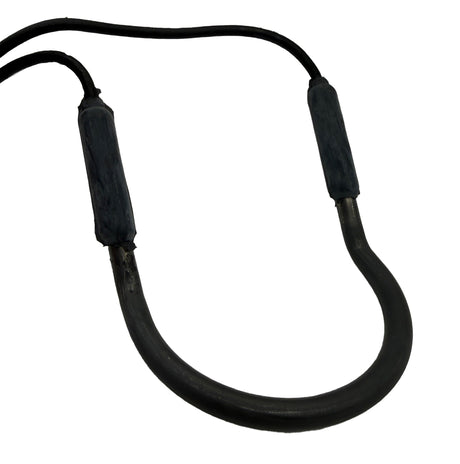

Ritchie Heater 125W 120V 14150

(20)

Sale price $45.99 Regular price $49.65

View details
Ritchie 1/2" Valve Rubber Package #15151

(10)

Regular price $11.85

View details
7% off

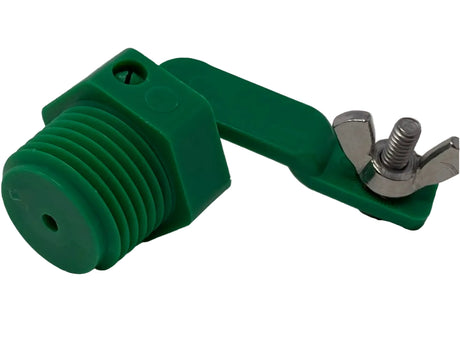

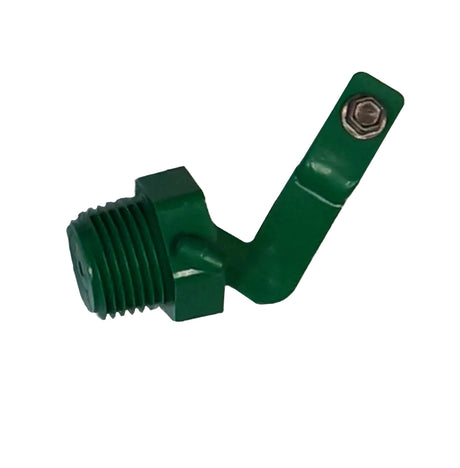

Ritchie 1/2" Green Valve #13597 – High-Pressure Replacement Valve for Automatic Waterers

(9)

Sale price $18.99 Regular price $20.50

View details

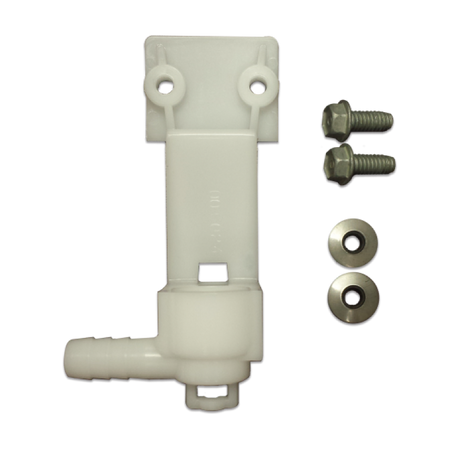

Ritchie Stall Fount II Valve Bracket #18641

(3)

Sale price $13.99 Regular price $14.05

View details

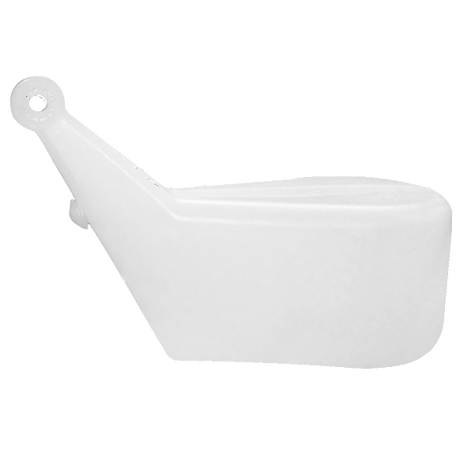

Ritchie Stall Fount II Float Package 18642

Regular price $25.90

View details

Frequently Asked Questions

Is this the heated StallFount?

Yes, part 18740 is the heated model. Part 18748 is the same waterer without heat.

How many horses does it serve?

One. It is built for a single stall, which is what makes it a good fit for individual turnout and boarding stalls.

What are the dimensions?

16.5 inches square by 12 inches tall, with a 1 gallon capacity. It ships at 22 pounds.

Do I need a shroud?

A shroud covers the plumbing below the unit. The 20 inch shroud is part 18744 and the 30 inch is part 18746, both sold separately.

Where do I find replacement parts?

The parts list for this model is further down this page, and the parts breakdown is in the document center. Match the item number on the breakdown to the part you need.
